Overview
The Fabtech FTS21191 is a 4 inch uniball control arm lift kit for 2014 Chevrolet Silverado 1500 and GMC Sierra 1500 K1500 trucks with factory Magnetic Ride Control. It is a mild lift designed to clear 33 inch tall tires. The factory front coilover shocks are retained with a steel spacer system, and the rear is raised with 1 1/2 inch lift blocks and U-bolts to level the truck.
The spec sheet gives a lift height range of 3 to 4.99 inches. The kit includes Stealth Monotube shock absorbers, and the rear is raised with 1 1/2 inch lift blocks and U-bolts to level the stance of the truck.
Key features
- Uniball control arm system at the front
- Tubular upper arms with 1 inch FK stainless PTFE uniballs
- Arms are made from 4130 Chromoly tubing with a 1.50 inch OD.
- Steel spacer system that works with the factory front coilover shocks
- Stealth Monotube shock absorbers included
- Front differential relocated to keep CV angles proper
- 1/4 inch thick steel skid plate
- 1 1/2 inch rear lift blocks with U-bolts
- Aluminum suspension parts are included.
Tire, wheel and driveline checks
Lift height and tire size work together, so a taller tire needs wheel offset that keeps it clear of the fenders and suspension. Backspacing affects how the tire sits inside the fender, which is why the tire and wheel pairing matters more than tire size alone. This matters most on trucks where the tire sits farther out.
The front differential relocation changes driveline geometry, so the CV angles should be checked after installation. Rub marks on the inner fender or steering components are early signs of a tire or wheel fit problem and should be corrected before highway driving.
- Check tire clearance at full steering lock
- Inspect CV boots for splits after the install
- Recheck the front alignment after the first drive
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTS21191 |
| UPC | 674866091009 |
| Lift height range | 3 to 4.99 inches |
| Lift | 4 inch uniball control arm system |
| Suspension type | Spacer |
| Upper arm tubing | 4130 Chromoly, 1.50 inch OD |
| Uniballs | 1 inch FK stainless PTFE |
| Skid plate | 1/4 inch thick steel |
| Rear lift method | 1 1/2 inch lift blocks and U-bolts |
| Shocks included | Yes, Stealth Monotube |
Vehicle fitment
It is for 2014 Chevrolet Silverado 1500 in High Country, LT, LTZ and WT trims, and 2014 GMC Sierra 1500 in Base, Denali, SLE and SLT trims.
It does not fit all wheel drive models or standard cab trucks. Other model years are not covered, so check your year, cab and drive type before ordering.
Tires and wheels
Tire and wheel combinations: a 33 x 12.50 R17 on a 17 x 8 wheel with 4 1/2 inch backspacing needs minor trimming; a 275/65R18 on an 18 x 8 wheel with 4 1/2 inch backspacing needs minor trimming; and a 295/55R20 on a 20 x 9 wheel with 5 inch backspacing needs minor trimming. The factory wheel and tire cannot be used with this kit.
Installation notes
The front differential is relocated to keep the CV angles correct at the new height, and the arms and the spacer system must be installed together. Align the front end after the install, and check the brake lines and steering components for clearance at full lock.

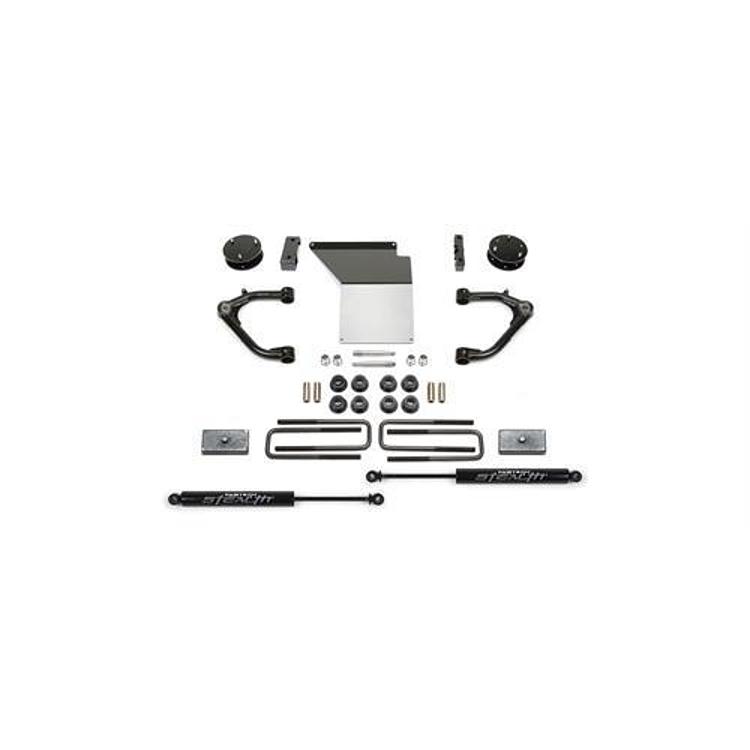

What’s included
The kit includes uniball upper control arms, the steel spacer system, Stealth Monotube shock absorbers, a 1/4 inch steel skid plate, the front differential relocation parts, and 1 1/2 inch rear lift blocks with U-bolts.
