Overview
The Fabtech K1059 is a 4-inch budget lift kit that combines upper control arms, ball joints and coilover spacers with rear lift blocks and U-bolts. The kit includes performance shocks and a skid plate. The lift height range is 3 to 4.99 inches, and the kit is a spacer-type suspension with direct fit.
Key features
- 4-inch lift with upper control arms
- Ball joints included
- Coilover spacers
- Performance shocks included
- Skid plate and rear lift blocks
Upper control arms and geometry
Upper control arms replace or supplement the stock arms and set the position of the upper ball joint, which changes caster and camber. Because these angles move, the front end needs an alignment after installation, and the steering should be checked for wander or pull on the road. Ball joints that are worn or dry should be replaced at the same time, since they carry the new loads.
Performance shocks are usually chosen to match the new suspension height and the heavier wheel and tire setup. Check the stock sway bar links, brake hoses and CV angles after the lift is complete. Skid plates protect the oil pan and transfer case on rough trails, so inspect the mounting bolts after off-road use. Keep a record of the alignment specs so future service can be compared against the original setup.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1059 |
| UPC | 70000639220 |
| Lift height | 4 inches |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Spacer |
| Rear lift method | Lift blocks and U-bolts |
| Shocks | Performance shocks included |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit. Check the fitment against your vehicle’s year, model and trim before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upper control arms change front suspension geometry, so alignment should be checked after installation. The rear uses lift blocks with U-bolts, and the driveline angles should be measured once the truck is at the new height.

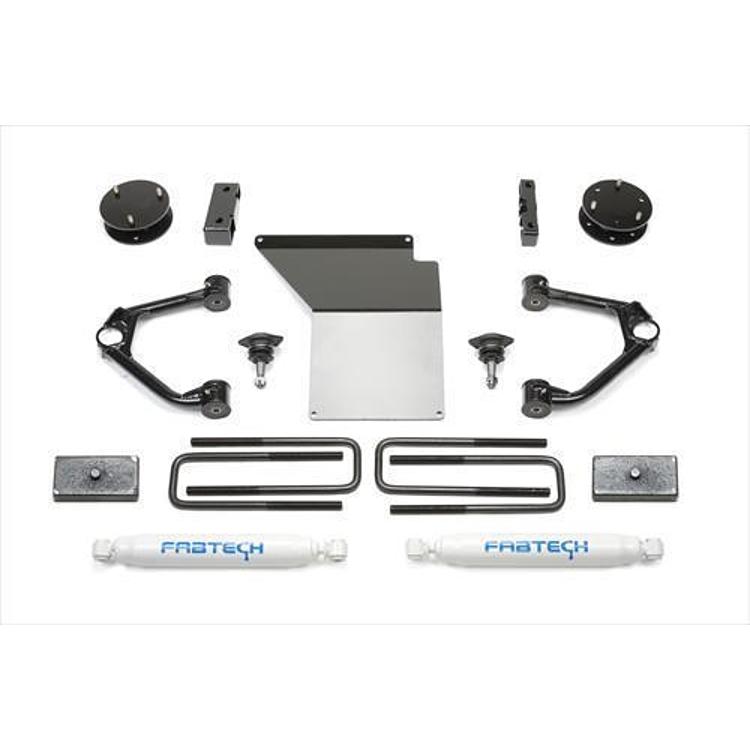

What’s included
- Two upper control arms
- Two lift blocks
- Four U-bolts
- Two spacers
- One skid plate
- Ball joints and coilover spacers
- Performance shocks
- Hardware
