Overview

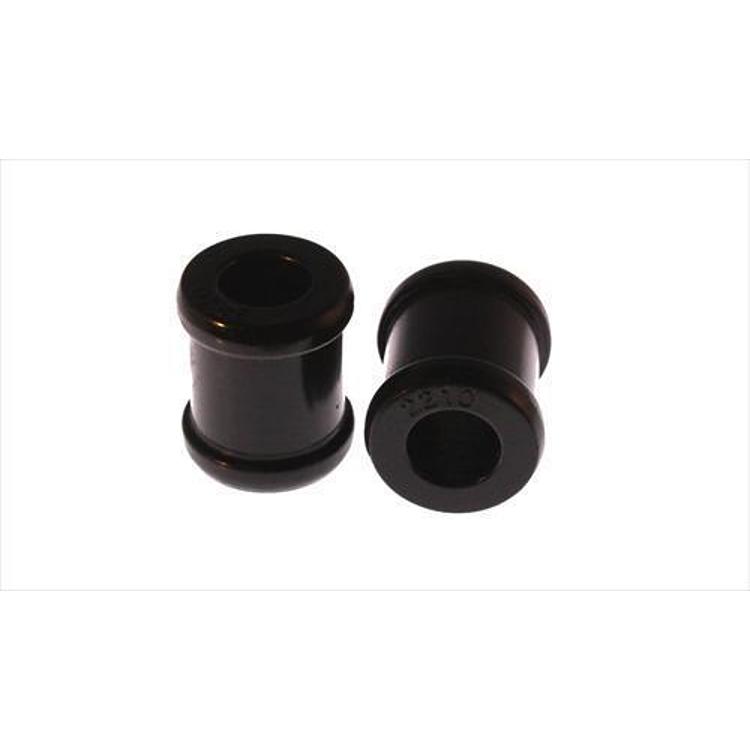

The Energy Suspension 9.8141G is a black universal shock eye with a standard straight eye, an ID of 5/8 and an L-1 dimension of 1.25 in. The kit includes 2 bushings. No vehicle is named for it, so treat it as a universal fit part and compare the ID and L-1 length with your shock’s eye before choosing it.
Key features
- Black finish
- Standard straight eye style
- Polyurethane bushings and grommets
- Kit includes 2 bushings
Choosing eye length and ID
The inside diameter of a shock eye sets the bushing bore, and the L-1 dimension sets how far the eye sits from the shock body. Both affect how the shock sits and moves through its travel. A bore that is too tight can crush the bushing, while a loose bore lets it spin. Measure the bolt that runs through the eye and confirm the bore fits it with a small amount of clearance.
Length matters too, because a shorter or longer eye can change shock angle and leave the bolt binding at full compression or extension. Compare the new eye with the old one side by side before installing. Inspect the bushing and bolt for wear when fitting, and replace any worn hardware so the new eye can seat squarely.
- Measure the bolt before choosing the bore
- Compare eye length side by side
- Check the shock angle at full travel
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 9.8141G |
| UPC | 703639415978 |
| Type | Universal shock eye |
| Eye style | Standard straight |
| ID | 5/8 (unit not stated) |
| L-1 | 1.25 in. |
| Material | Polyurethane |
| Color | Black |
| Included | 2 bushings |
Vehicle fitment
This is a universal fit shock eye, so it is not built for one vehicle. Check the ID of 5/8 and the 1.25 in. L-1 dimension against your current shock eye first.
No year, make, model or trim is named for this part. Confirm your vehicle’s year, model and trim before ordering.
What’s included
2 bushings.
Not included: shock absorber.
