Overview

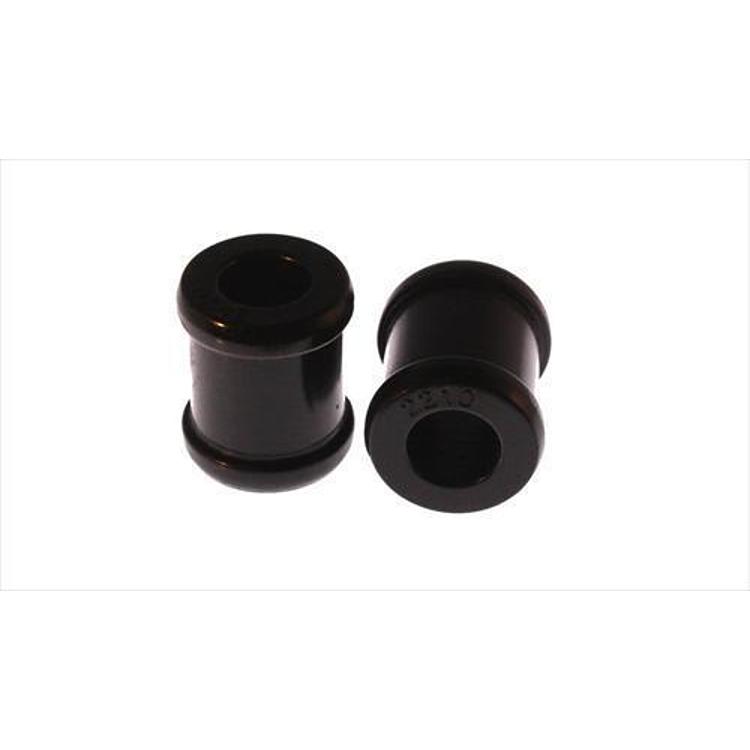

The Energy Suspension 9.8116G is a universal shock eye, the polyurethane bushing that cushions the end of a shock absorber where it attaches to the vehicle. This version has a standard straight eye with a 5/8 in. inside diameter and an L-1 dimension of 7/16 in., and the kit includes 2 bushings in black. It is a universal fit item, so no make, model, year or trim is named; compare the bore and length with your shock’s eye before choosing it.
Key features
- Standard straight eye style
- Polyurethane construction for the shock bushing and grommet
- Black finish
- 2 bushings in the kit
Measuring your existing eye
Before buying a replacement eye, measure the bore of the old one with calipers and note the length from the center of the bore to the end of the eye. Those two readings decide whether a universal eye will seat on the shock and hold its bolt snugly. Check the mounting bolt diameter as well, because a bushing with a bore that is too large will spin or rattle.
Shock eyes take a steady load, so the bushing inside them is the part that wears. Look at the eye for cracks, distortion or uneven wear on the bushing surface. A bent eye can put side load on the bushing, so inspect the shock body as well. Fresh polyurethane bushings work best when the eye and bolt are clean and free of rust.
- Measure the bore with calipers
- Note the center-to-end length of the eye
- Inspect the bolt for rust or wear
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 9.8116G |
| UPC | 703639414711 |
| Type | Universal shock eye |
| Eye style | Standard straight |
| ID | 5/8 in. |
| L-1 | 7/16 in. |
| Material | Polyurethane |
| Color | Black |
| Included | 2 bushings |
Vehicle fitment
This is a universal fit part, so it is not designed for one vehicle. Fit depends on the shock’s eye bore and length, so measure your current shock before choosing this size.
No year, make, model or trim is named for this part. Confirm your vehicle’s year, model and trim before ordering.
What’s included
2 bushings.
Not included: shock absorber.
