Overview
The CRT45144 is a RockerBall cushion hitch with a 2 inch trailer ball and a 5 inch drop, rated 7,500 lb. Its cushion isolator absorbs the jolting and rattle that a trailer sends through a metal-on-metal ball mount. It is universal fit for class 3, class 4 and class 5 receiver hitches, so receiver class and shank size set compatibility.

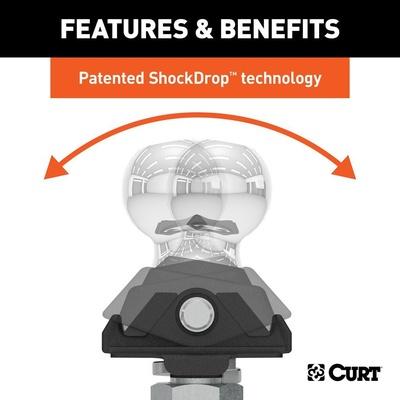

The integrated cushion isolator turns a standard ball mount into a cushion hitch, so the coupling point takes the trailer’s erratic movement instead of passing it to the tow vehicle. This gives a quieter, more controlled ride and less strain on the receiver hitch, brakes and suspension.

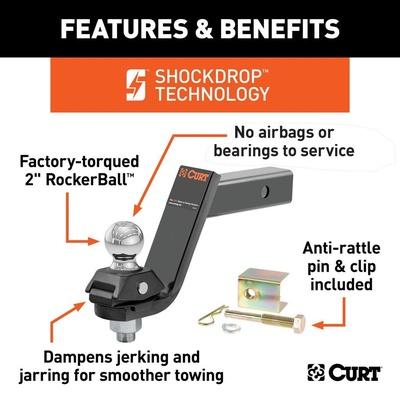

Key features
- Integrated cushion isolator built into the hitch ball
- Anti-rattle capability with an anti-rattle shim kit for maximum vibration resistance

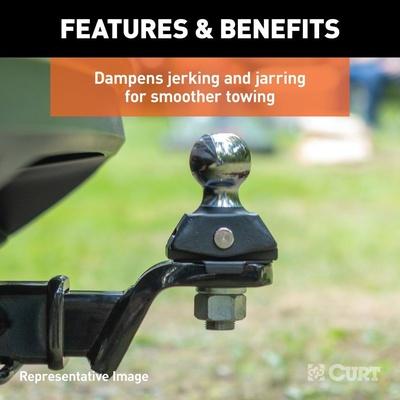

- Shock-absorbing design reduces jerking and jarring while towing
- No airbags or bearings to service

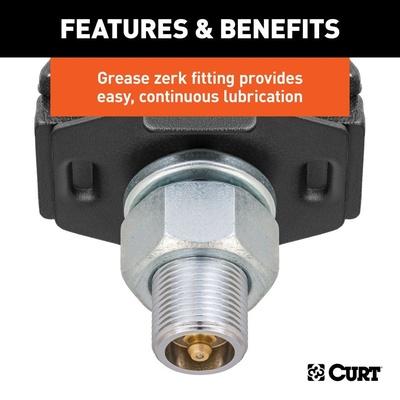

- Integrated zerk fitting for grease lubrication

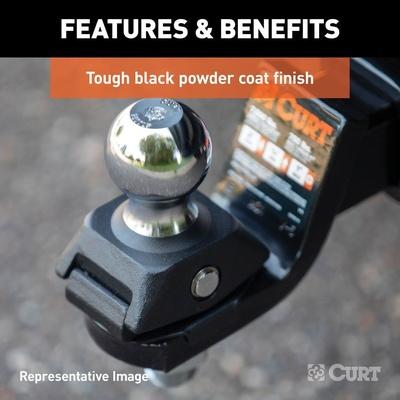

- Forged steel ball with chrome plating; powder coated base and ball mount
Choosing a drop height
Drop is the distance the ball sits below the receiver, and it has to match the trailer coupler when the trailer is level. Measure the coupler height on level ground with the trailer unhitched, then compare it to the receiver height. A drop that is too large can make the trailer tongue sit high, while a drop that is too small can let the trailer nose down.
Once the hitch is installed, check the trailer level and the anti-rattle shim position. Re-tighten the hardware after the first trip and whenever the trailer is unhitched and rehitched. Grease the zerk fitting on a regular schedule, and replace worn shims before they lose their effect.
- Measure coupler height with the trailer level
- Check the shim position after the first trip
- Keep the zerk fitting greased

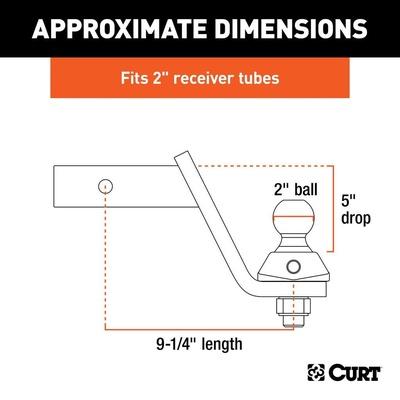

Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT45144 |
| Trailer ball size | 2 inch |
| Drop | 5 inch |
| Shank size | 2 inch |
| Shank hole size | 2 inch |
| Weight rating | 7,500 LBS |
| Finish | Black |
| Ball construction | Forged steel with chrome plating |
| Fitment | Universal fit |
Vehicle fitment
This RockerBall is universal fit, so it is not matched to a specific vehicle. The standard 2 inch shank is meant for most class 3, class 4 and class 5 receiver hitches, and that receiver class is what determines compatibility. Measure your receiver before choosing the 5 inch drop.
Universal fit means no year, model or trim list applies. Confirm your receiver class, shank size and trailer weight before you install.
Installation notes
Grease the integrated zerk fitting as needed for continuous lubrication and smooth operation. Use the included anti-rattle shim kit as part of the setup, since it is included for maximum vibration resistance. Because the hitch has no airbags or bearings, routine care is grease only.
What’s included

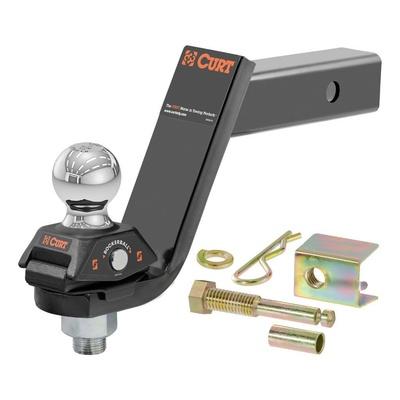

The kit includes a standard ball mount with a 5 inch drop and standard 2 inch shank, a 2 inch trailer ball, and an anti-rattle shim kit.
