Overview

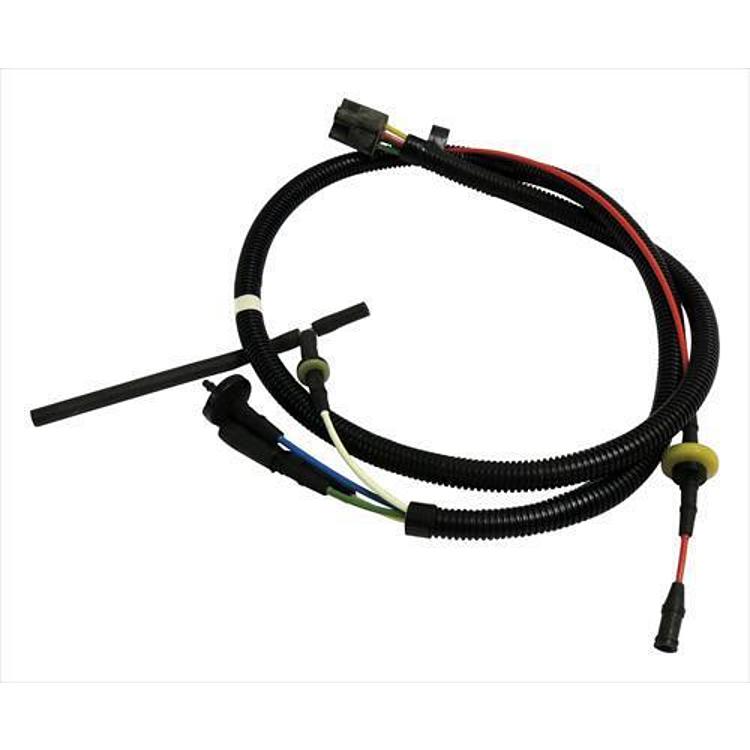

The Crown Automotive vacuum harness, part number 53001100, fits 1984–1993 Jeep Cherokee XJ models. It is designed for Europe, Middle East and KDX models only, so confirm your vehicle falls into one of those markets before fitting it.
Compare the harness with the original routing before installing it.
Key features
- Replacement vacuum harness, part number 53001100, from Crown Automotive
- Fits 1984–1993 Cherokee XJ with Base, Briarwood, Chief, Country, Laredo, Limited, Pioneer and Sport trims
- Noted for Europe, Middle East and KDX models only
- Fitment in the manufacturer list is for the Cherokee XJ only
Vacuum harness care
A vacuum harness carries engine vacuum to the devices that depend on it, so a small leak or cracked line can change how those devices respond. Harnesses are usually routed near heat sources and moving parts, which makes the tubing and connectors prone to brittleness over time. Routing matters as much as the part itself, since a line that rubs on a bracket will eventually wear through.
Inspect the harness during routine service. Look for brittle or cracked tubing, loose or melted connectors, and any section that has worn against a bracket. A hand vacuum pump can confirm that each line holds vacuum before the system is reconnected, and securing the harness away from exhaust components helps it last longer.
- Check tubing for cracks and brittleness
- Test each line with a hand vacuum pump
- Keep lines clear of exhaust heat
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 53001100 |
| UPC | 848399016833 |
| Component | Vacuum harness |
| Model regions | Europe, Middle East and KDX models only |
Vehicle fitment
Manufacturer fitment lists 1984–1993 Jeep Cherokee (XJ) with Base, Briarwood, Chief, Country, Laredo, Limited, Pioneer and Sport trims.
Confirm fit for your vehicle’s year, model, trim and market before ordering.
What’s included
One vacuum harness is included. Check the package contents against your installation before starting.
