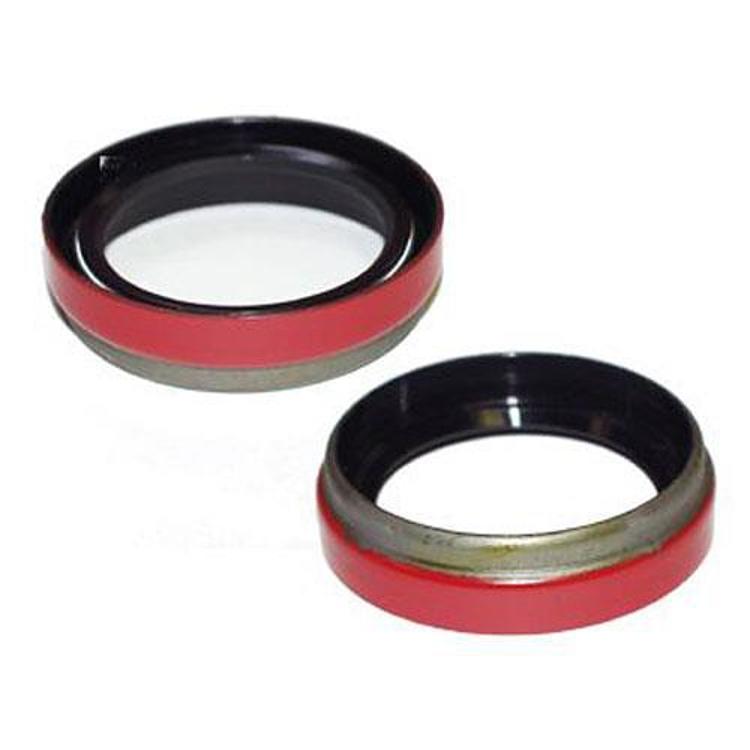

Crown Automotive Dana 30 Intermediate Axle Seal – 83503504

Crown Automotive

$14.25In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 3:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1984–1993 Jeep Cherokee XJ and 1987–1995 Wrangler YJ
  • Dana 30 disconnect style intermediate axle seal
  • 2.12 inch outer diameter
  • Crown Automotive part number 83503504

Description

Overview

The Crown Automotive 83503504 is a Dana 30 intermediate axle seal for the disconnect style Dana 30 front axle, with a 2.12 inch outer diameter. It fits the 1984-1993 Jeep Cherokee XJ and the 1987-1995 Jeep Wrangler YJ.

The 2.12 inch outer diameter helps match this front position seal to the right axle housing. An intermediate axle seal sits around the intermediate shaft of a disconnect style Dana 30, and keeps axle lubricant from leaking out of the housing.

Owners of a Cherokee XJ or Wrangler YJ with a leaking front intermediate shaft seal can compare the 2.12 inch outer diameter with the old seal as a first check. It is a direct-fit replacement.

Cherokee XJ and Wrangler YJ owners with a front axle that weeps oil at the shaft can use the 2.12 inch figure to check the size of the old seal before ordering.

It fits the front position only. The Cherokee XJ trims run from Base and Sport to Briarwood, Country and Limited, and the Wrangler YJ trims run from Base and Sport to Sahara and Rio Grande.

Key features

  • Intermediate axle seal for the Dana 30 front axle
  • Dana 30 disconnect style
  • 2.12 inch outer diameter
  • Front position
  • Fits Cherokee XJ and Wrangler YJ
  • Direct-fit replacement part

Front axle seal basics

On a disconnect style front axle, the intermediate shaft turns only when the axle is engaged, so its seal sees a different kind of wear than a fixed axle shaft seal. The lip rides on a shaft that spins at road speed, and heat from the axle housing can harden the rubber over time. Oil on the frame rail or the inside of the wheel is usually the first sign the seal is letting go.

Choose a replacement that matches the old seal’s outer diameter and axle type before buying, and compare the lip and spring with the seal you are removing. Clean the bore and the shaft surface thoroughly, since grit or old grease can tear a new lip. Check the axle lubricant level after installation and look for any seepage after the first few drives.

  • Compare the outer diameter with the old seal before buying
  • Clean the bore and shaft surface before pressing in the seal
  • Recheck for seepage after the first drives

Specifications

Brand Crown Automotive
Part number 83503504
UPC 848399025521
Part type Intermediate axle seal
Axle Dana 30, disconnect style
Outer diameter 2.12 inch
Position Front
Fitment type Direct fit
Category Axle parts, inner axle seals

Vehicle fitment

It fits these vehicles in the trims below:

  • 1984–1993 Jeep Cherokee (XJ) (Base, Briarwood, Chief, Country, Laredo, Limited, Pioneer, Sport)
  • 1987–1995 Jeep Wrangler (YJ) (Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport)

It fits the 1984-1993 Cherokee XJ and the 1987-1995 Wrangler YJ. The Comanche is not covered, and the later Cherokee XJ years are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Check the seal’s outer diameter against your axle, since this one is the 2.12 inch size for a Dana 30 disconnect style axle.

SKU: CRO83503504 Category:

Specification

Shipping weight 0.06 lbs
Package dimensions 2.30 × 2.30 × 0.80 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–1993Base, Briarwood, Chief, Country, Laredo, Limited, Pioneer, Sport
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What size is the Crown 83503504 axle seal?

The 83503504 has a 2.12 inch outer diameter. It is a Dana 30 intermediate axle seal for the disconnect style axle.

Which Jeeps does the Crown 83503504 fit?

It fits the 1984 to 1993 Cherokee XJ and the 1987 to 1995 Wrangler YJ, in the trims shown above. Confirm fit for your vehicle's year, model and trim before ordering.

Does the 83503504 fit the Jeep Comanche?

Crown's list for the 83503504 does not include the Comanche, so check the manufacturer specifications for other models before ordering.

Should the front axle lubricant be checked after replacing the seal?

Yes. Check the oil level once the seal is in and look for seepage after a short drive. A new seal can still leak if the bore or shaft was damaged during removal.
