Overview

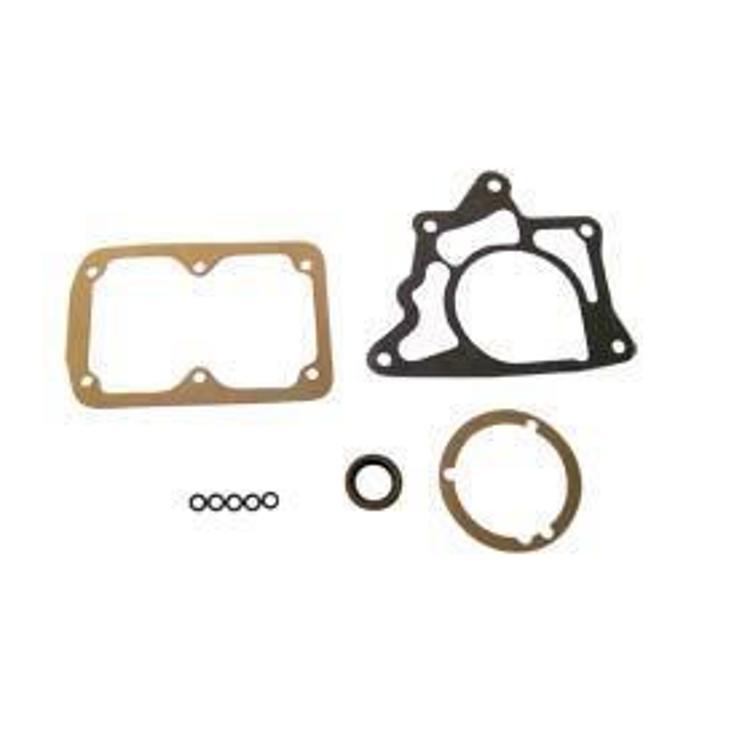

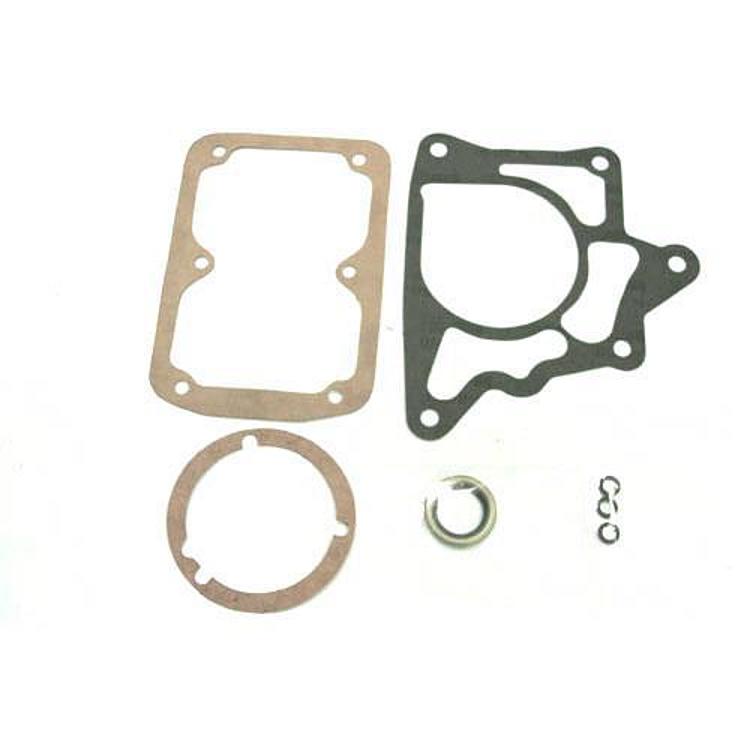

The Crown Automotive J0944817 is a gasket kit for the T86 manual transmission, made for 1966-1967 Jeep CJ5, CJ6, Commando and J-series trucks.
Fitment in the manufacturer list is limited to the 1966 and 1967 model years, with each model shown at Base trim. Match the body style and year to your vehicle before ordering.
Key features
- Gasket kit for T86 transmissions
- Fits 1966-1967 CJ5, CJ6, Commando and J-series trucks
- Crown Automotive part number J0944817
- Direct fit per the manufacturer
Before you rebuild
Transmission gaskets seal the joints between case halves, covers and extensions, and they are usually the first part to fail when a gearbox begins to weep. On a T86 the gaskets must hold lubricant while the shafts turn and the case flexes with temperature changes. Because opening the case already costs time, most rebuilders replace every gasket in a kit rather than reuse ones that have already taken a set.
Before disassembly, clean all mating surfaces with a non-abrasive pad and remove old sealant without gouging the aluminum. Check the faces for warping or pitting, since a new gasket cannot seal a damaged surface. Dry-fit each gasket to confirm it lines up with bolt holes and oil passages before applying any sealant the service manual calls for.
- Clean mating faces thoroughly
- Inspect for warping or pitting
- Torque housing bolts in a crisscross pattern
- Recheck for seepage after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J0944817 |
| UPC | 848399056105 |
| Transmission | T86 |
| Fitment type | Direct fit |
| Model years | 1966-1967 |
Vehicle fitment
It fits the 1966-1967 Jeep CJ5 and CJ6, Commando, and J-2500, J-2600, J-2700, J-2800, J-3500, J-3600, J-3700 and J-3800 trucks, all Base trim.
Fitment covers 1966-1967 models only. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting.
