Overview
The Crown Automotive T18 4 speed transmission gasket kit, part number J0923302, is a seal and gasket kit for Jeep transmissions with the Granny Low T-18 option. The kit is designed only for those units, and it will not fit any other 4 speed transmission.
The Granny Low T-18 was an optional CJ transmission from 1972 to 1979, paired with 6 or 8 cylinder AMC engines. The kit also suits 1972–79 J10, J20 and J30 Cherokee and Wagoneer transmissions, though those models are not covered by the fitment below.
Key features
- Seals and gaskets for the Granny Low T-18 4 speed transmission
- Six pieces, starting with a rear main shaft oil seal
- Excludes synchronizer parts, gears and shafts
- Crown Automotive part number J0923302, UPC 848399079227
Rebuild planning
A gasket kit is one part of a full transmission refresh. Seals and gaskets stop leaks at the case joints, but they do nothing for gear or synchronizer wear, so internal parts should be checked whenever the case is opened. Older Granny Low units are worth a close look at bearings and shafts before assuming the seals alone will restore the unit.
Lay each new gasket against the old one before fitting, because some kit gaskets suit other applications. Clean every mating surface with a plastic scraper, avoid nicks, and use sealant only where your shop procedure calls for it.
- Inspect synchronizer rings and hub teeth
- Check output shaft bearings for play
- Replace the rear main seal whenever the case is opened
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J0923302 |
| UPC | 848399079227 |
| Transmission | T-18 4 speed, Granny Low option |
| Engine application | 6 or 8 cylinder AMC, CJ 1972-79 |
| Contents | Six seals and gaskets |
| Excluded | Synchronizer parts, gears and shafts |
Vehicle fitment
Fits these models:
- 1959–1960 and 1966 Jeep CJ3
- 1959–1960 and 1966–1979 Jeep CJ5
- 1959–1960 and 1966–1974 Jeep CJ6
- 1976–1979 Jeep CJ7
- 1966–1967 Jeep Commando
- 1955–1958 Jeep Willys CJ-3, CJ-5 and CJ-6
The Cherokee, Wagoneer and J-series trucks mentioned above are not in this fitment, and the CJ7 is covered only for 1976–1979. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit leaves out synchronizer parts, gears and shafts, so worn internal parts need separate replacement. Use only the gaskets your application requires, since the kit contains several extras meant for other applications.

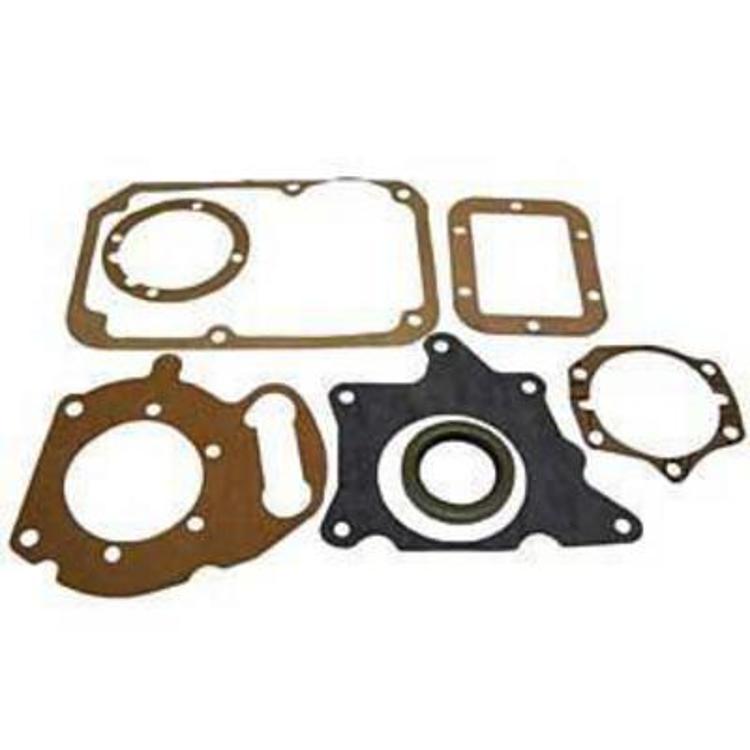

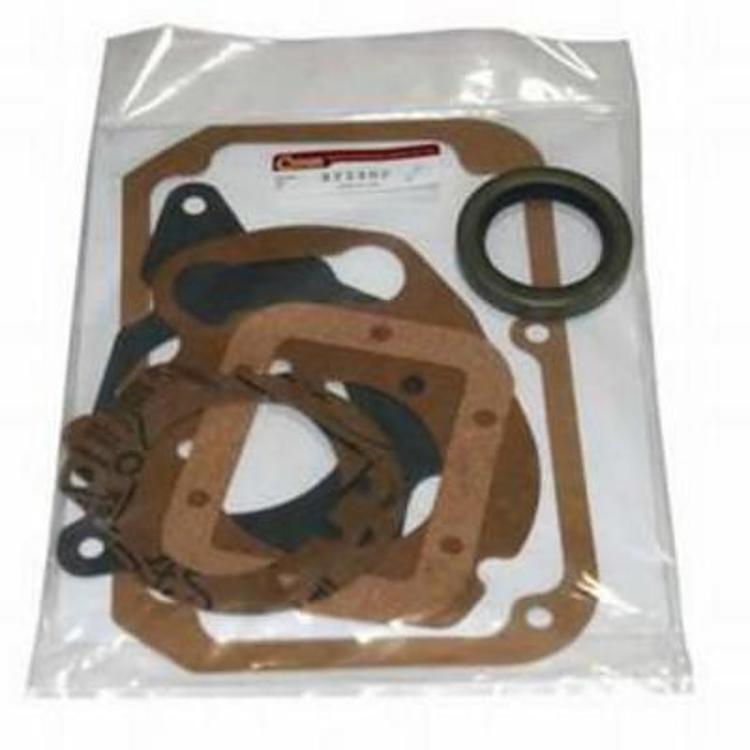

What’s included
- Rear main shaft oil seal
- Front bearing retainer gasket
- PTO cover gasket
- Shift cover gasket
- Transmission to adapter gasket
- Adapter to transfer case gasket
Not included: Synchronizer parts, gears and shafts.
