Overview

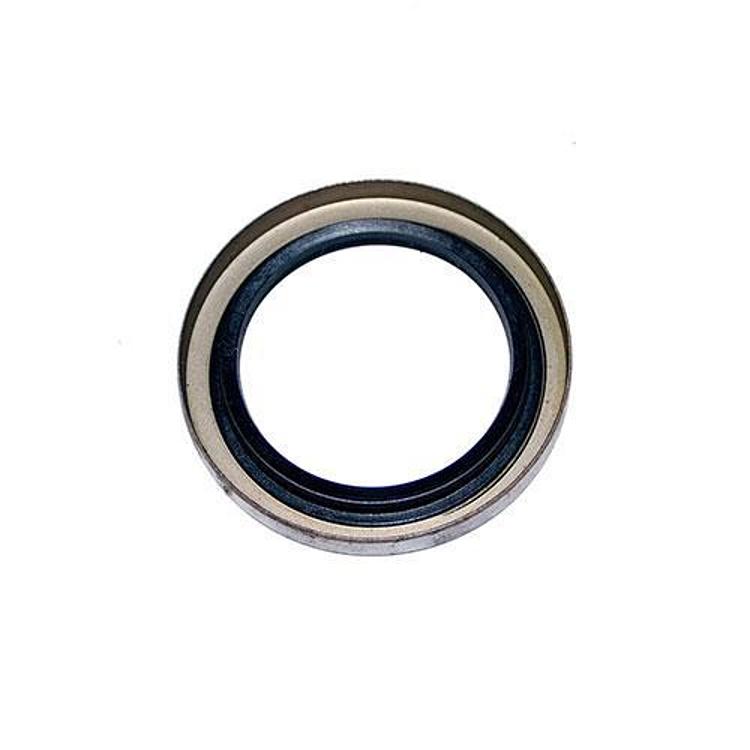

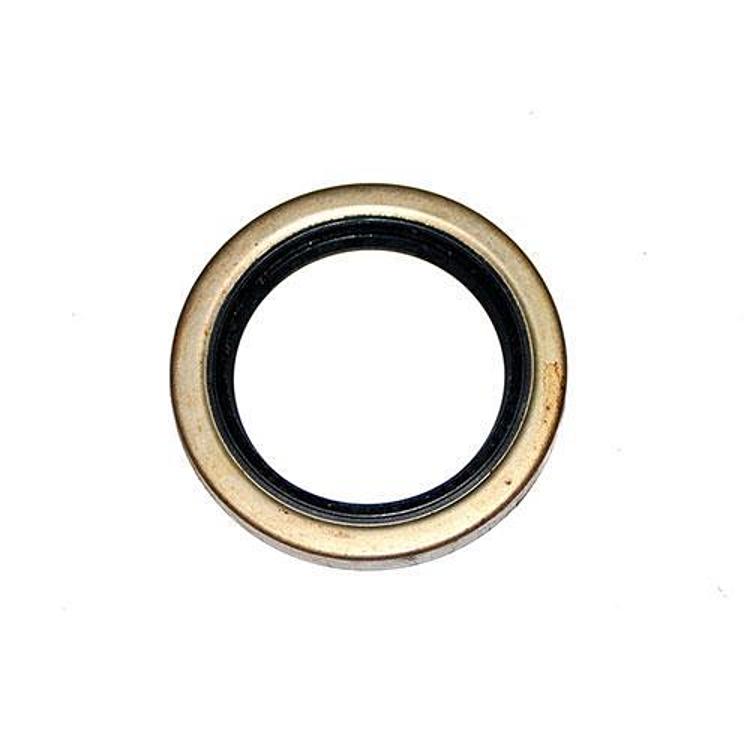

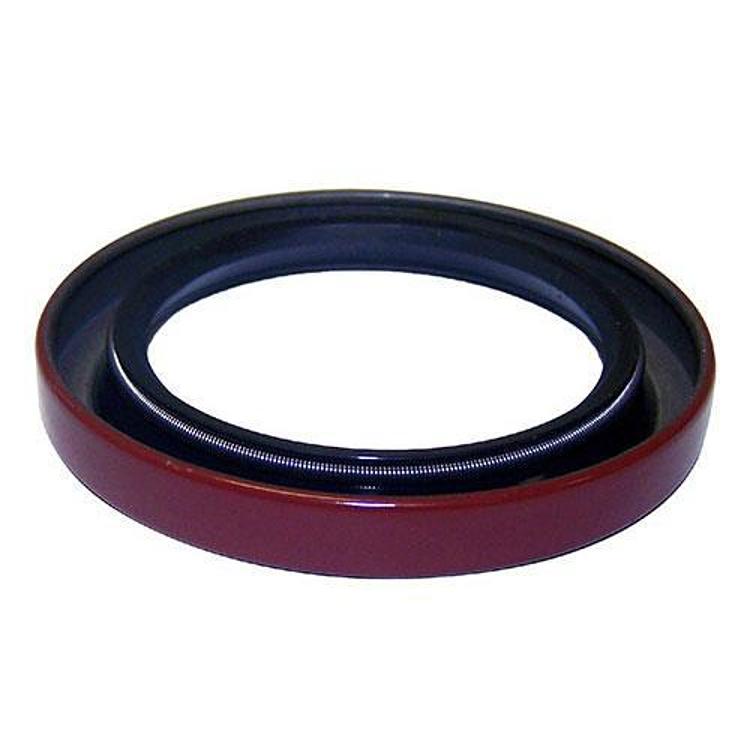

The Crown Automotive rear adapter seal, part number J8132672, is a replacement for Jeep vehicles and is marked for the rear position. It fits Cherokee SJ and XJ, CJ5, CJ7, J10, J20 and Wagoneer SJ models from 1981 to 1986.
The seal carries UPC 848399071283. Measure the seal being replaced to confirm its size and material before fitting.
Key features
- Rear adapter seal, marked for the rear position
- Crown Automotive part number J8132672
- Fits SJ and XJ Cherokee, CJ5, CJ7, J10, J20 and Wagoneer SJ models
- UPC 848399071283
Rear adapter seal care
The rear adapter seal sits at the back of the transmission where the adapter meets the case, and it keeps lubricant from leaking past the output shaft. Because it is exposed to heat and road debris, the seal can harden or split with age. A leak here usually shows as fluid on the underside of the transmission near the driveline, sometimes mistaken for a fault in the transfer case.
When replacing the seal, confirm the old one’s diameter and lip style before buying, since these vary between years and models. Clean the adapter bore and sealing surface, and inspect the output shaft for grooves that could cut a new lip. A light coat of oil on the lip helps it seat properly. Check the driveline for vibration after the first drive, since worn seals sometimes accompany worn bearings in the same area.
- Look for oil on the transfer case or driveline
- Inspect the output shaft surface for wear
- Replace the adapter gasket when the seal is changed
- Recheck the fluid level after a few days of driving
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J8132672 |
| UPC | 848399071283 |
| Part type | Rear adapter seal |
| Position | Rear |
| Dimensions and material | Not stated |
Vehicle fitment
It fits:
- 1982–1983 Jeep Cherokee (SJ)
- 1984–1985 Jeep Cherokee (XJ)
- 1981–1983 Jeep CJ5
- 1981–1986 Jeep CJ7
- 1982–1983 Jeep J10
- 1982–1983 Jeep J20
- 1982–1983 Jeep Wagoneer (SJ)
The XJ fits 1984 and 1985 only, and the CJ5 covers 1981 to 1983 only. Years outside those ranges are not covered. Recheck the year, model and trim of your vehicle before ordering.
What’s included
The part is a single rear adapter seal. No other seals, gaskets or fasteners are described.
