Overview

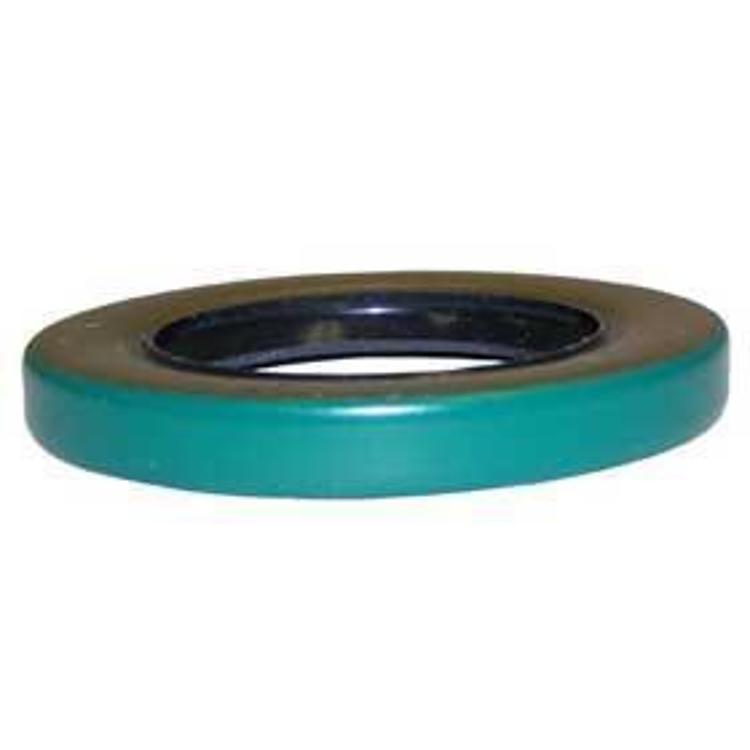

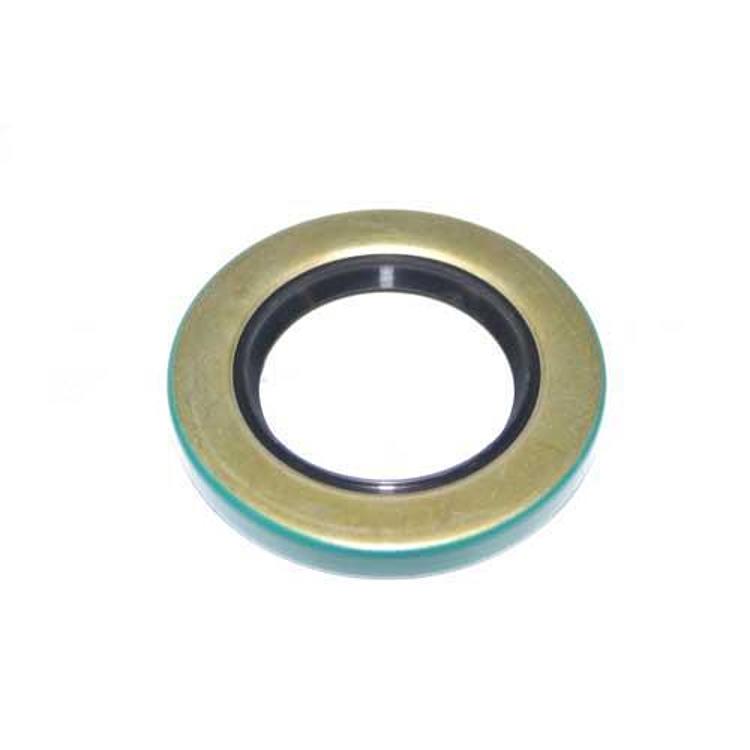

The Crown Automotive J8131669 is an output shaft oil seal for the Dana 300 transfer case, the transfer case named in its title. It is marked as a direct fit for Jeep vehicles, but no model years or chassis codes are given, so the vehicles covered are not confirmed here.
Key features
- Oil seal for the Dana 300 output shaft
- Part number J8131669
- UPC 848399070583
- Marked as a direct fit
Dana 300 seal care
On a transfer case, the output shaft seal holds lubricant where the shaft leaves the housing. Oil that seeps past it can drip onto the driveline and collect dirt. Leaks often start small and grow with time, so checking the area during routine service helps catch them early.
When replacing this seal on a Dana 300, drain the case, remove the yoke or flange and inspect the shaft surface for grooves. Pry tools can damage the bore, so use a seal driver and press the seal in square. Refill with lubricant to the correct level for your transfer case, then check for weeping on the first few drives.
- Clean the seal bore thoroughly
- Check the yoke for pitting
- Look for leaks after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J8131669 |
| UPC | 848399070583 |
| Part type | Output shaft oil seal |
| Transfer case | Dana 300 |
| Fitment | Direct fit (no years or models stated) |
Vehicle fitment
This seal is for the Dana 300 transfer case. Confirm fit for your vehicle’s year, model and transfer case before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One oil seal, part number J8131669. Check the package contents against your installation before starting.
