Overview

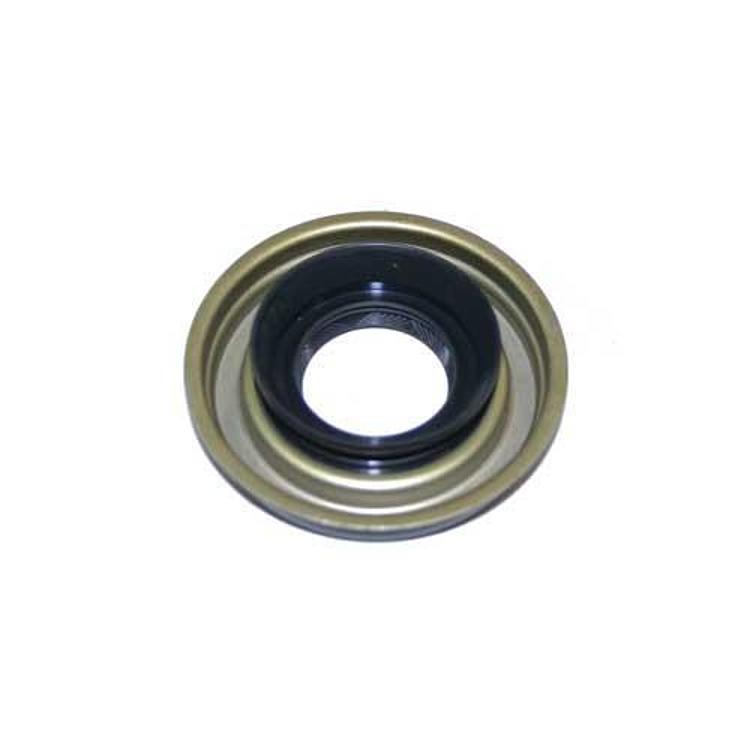

The Crown Automotive 4798117 is a rear output yoke seal for NP231 and NP242 transfer cases. It is made for the 1999 to 2004 WJ Grand Cherokee with an NP242 transfer case, which is the fitment for this seal.
Part number 4798117 and UPC 848399008906 identify the seal.
Key features
- Rear output yoke seal position
- Written for the NP242 transfer case in the WJ Grand Cherokee
- Covers 1999 to 2004 model years
- Identified by part number 4798117
Yoke seal replacement tips
A rear output yoke seal sits where the yoke enters the transfer case, so it keeps fluid in while the yoke turns. When the lip hardens or the yoke surface wears, fluid can seep along the yoke and collect on the driveline. A leak here often looks like a damp patch behind the transfer case rather than a drip from the middle.
Before fitting a new seal, check the yoke surface for grooves and clean any rust or debris. A worn yoke can cut a new lip quickly, so polish or replace it if needed. Install the seal square with a seal driver rather than striking it, and check for leaks after the first drive.
- Inspect the yoke surface for grooves or rust
- Install the seal square with a driver
- Check for leaks after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 4798117 |
| UPC | 848399008906 |
| Component | Rear output yoke seal |
| Transfer case | NP231 and NP242 |
| Vehicle: 1999 to 2004 WJ Grand Cherokee with NP242 | 1999 to 2004 WJ Grand Cherokee with NP242 |
| Fitment type | Direct Fit |
Vehicle fitment
Fitment is for the 1999 to 2004 WJ Grand Cherokee with an NP242 transfer case.
It is not made for other Grand Cherokee generations, such as the ZJ, or for transfer cases other than the NP242. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The rear output yoke seal, part number 4798117.
Not included: The yoke, the transfer case and other parts outside this kit are separate items.
