Overview

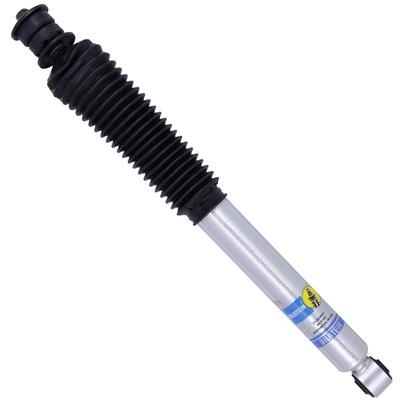

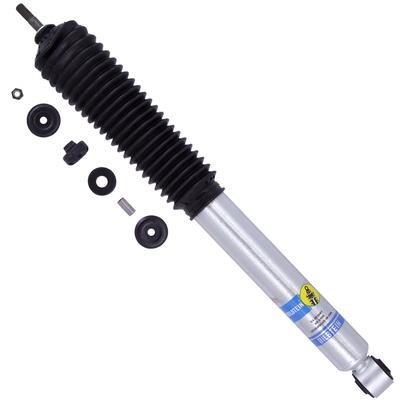

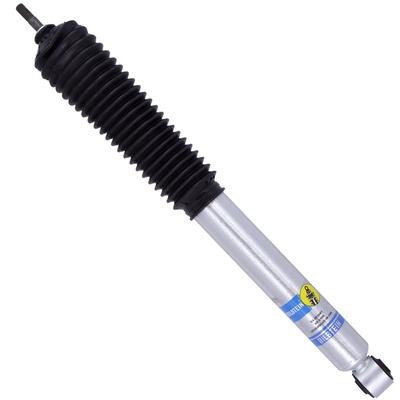

The Bilstein 5100 Series 24-285681 is a rear shock absorber for the 2014–2026 Ram 2500. It is made for a 2 inch rear lift and is for trucks without air suspension.
The shock has a 46mm zinc-plated smooth body and a monotube design. Its collapsed length is 16.75 inches and its extended length is 26.71 inches, so measure the rear shock being replaced and compare those figures before ordering. The digressive piston reacts to changing road conditions, and the extra length matters more on a lifted rear than on a stock-height truck.
Key features
- Rear lifted height of 2 in
- Not for air suspension
- 46mm zinc-plated smooth body
- Collapsed length 16.75 in and extended length 26.71 in
- Monotube design with a digressive piston
Rear lift and air suspension
A rear lift raises the axle and changes the angle of the shock, so the shock works through a different part of its stroke than it would on a stock truck. Because a lifted rear sits higher, the driveline angles and the position of the bump stops also shift. Matching the shock to the lift keeps the rear end controlled on rough roads and when the bed is loaded.
Trucks with air suspension use a different rear setup, so the suspension type should be confirmed before any shock is fitted. Inspect the rear mounts and bushings when the old unit comes off, and look for leaking oil on the body. Replacing the rear shocks together helps the truck track straight and settle evenly.
- Confirm the truck has no air suspension
- Check rear mounts and bushings for wear
- Recheck driveline angles after the lift is set
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-285681 |
| Shock series | 5100 Series |
| Position | Rear |
| Body diameter | 46mm |
| Rear lifted height | 2 in |
| Collapsed length | 16.75 in |
| Extended length | 26.71 in |
| Shock type | Monotube |
| Air suspension | Not compatible |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2014 through 2026 Ram 2500 across the model years in that range.
Ram 2500 models from before 2014, Ram 3500 trucks and any Ram with air suspension are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Part 24-285681: one rear shock absorber, sold individually.
