Overview

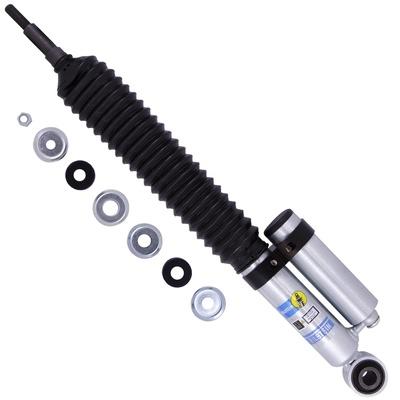

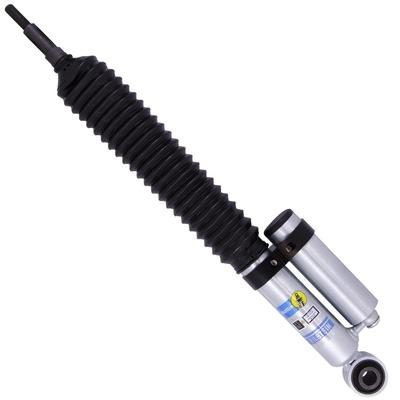

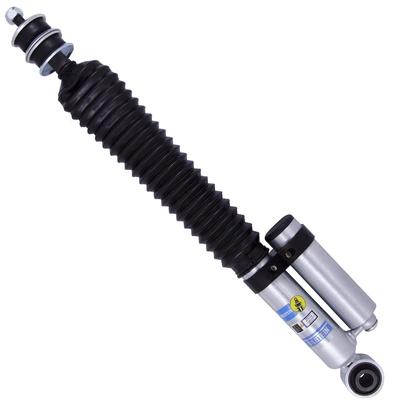

The Bilstein 5160 Series 25-275148 is a rear right remote reservoir shock absorber for the 1998–2007 Toyota Land Cruiser. The reservoir is a separate chamber linked to the shock by a hose, which increases cooling capacity and wheel travel.
The unit has a 46mm body and a monotube design for consistent fade-free performance. Its valve settings are velocity sensitive and digressive and are tuned for each application. A 360 degree swivel banjo hose fitting on the shock is meant to give a clean, low profile installation.
This shock is the rear right unit, so it is one half of a rear pair. Check the position marking on the unit against the right side of your truck before fitting it. Confirm the position on the shock you remove and check that the reservoir hose has room to route clear of the frame and suspension. Compare the mounting points with the damper you are replacing before fitting.
Key features
- Rear right position
- Monotube reservoir design
- 46mm body diameter
- Velocity sensitive digressive valve settings
- 360 degree swivel banjo hose fitting
Remote reservoir shock basics
A remote reservoir shock moves part of the damper’s oil volume into a separate chamber joined by a hose. On a truck that sees long grades, sand or rocky trails, that extra oil gives the damper more room to shed heat, which helps it keep working consistently over a long day. The reservoir hose is the part owners most often overlook. It should be routed so it never rubs the frame, a control arm or a tire at full compression or full extension.
When replacing a rear shock, match the mounting points first, then check the hose route with the axle at both ends of its travel. Many owners replace shocks in pairs so both sides damp alike. Inspect the old unit for oil seepage around the shaft, a dented reservoir, or a hose cracked at the fittings. Those signs suggest the damper can no longer control the springs.
- Check the hose for chafing after the first few drives
- Look for oil on the shaft and body of the old shock
- Re-check the mounting bolts once the truck has settled
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-275148 |
| Shock series | 5160 Series |
| Position | Rear right |
| Shock type | Monotube reservoir |
| Body diameter | 46mm |
| Hose fitting | 360 degree swivel banjo |
| Gas charge | Gas charged |
| Fitment type | Direct fit |
Vehicle fitment
It is a rear right remote reservoir shock for the 1998 through 2007 Toyota Land Cruiser.
Land Cruiser models outside 1998 to 2007, and other Toyota models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear right remote reservoir shock absorber.
Installation notes
Confirm the rear right position and route the reservoir hose clear of moving parts before tightening the mounts.
