Overview

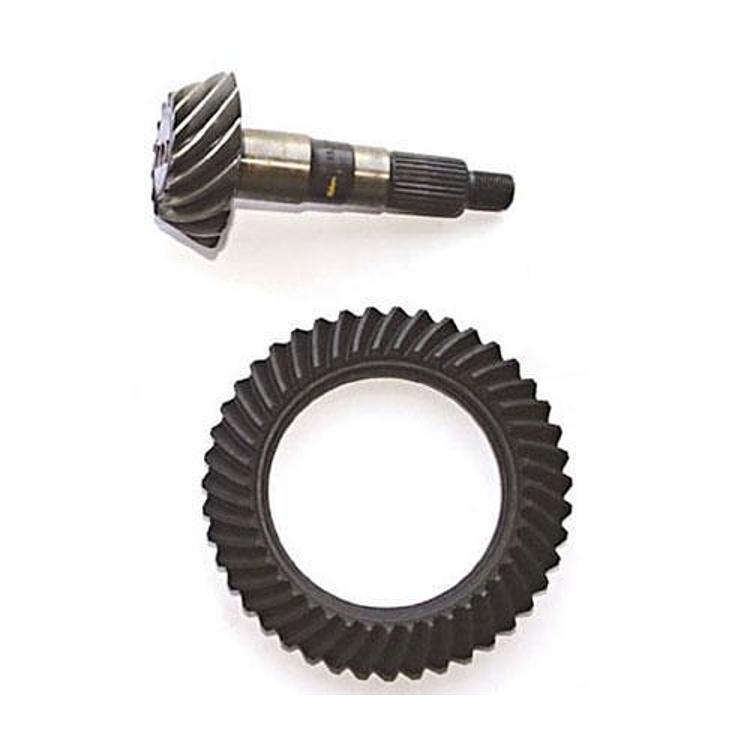

The Alloy USA Dana 44 JK front ring and pinion, part number D44456JK, is a 4.56 ratio gear set for the front Dana 44 axle. It is built for 2007 to 2018 Jeep Wrangler (JK) vehicles with a front Dana 44.
The gear set is made to restore power when larger tires are fitted, and the 4.56 ratio is for that purpose. The axle location is front, so confirm the front position on your axle before buying.
Key features
- 4.56 gear ratio
- Forged 8640 steel
- Machined on precision Gleason equipment
- Front Dana 44 JK application
Front axle considerations
The front axle handles steering and drive at the same time, so a gear change there affects the front driveline differently than a rear change. Front differentials on a Wrangler are often serviced with the front hubs, driveshaft and axle shafts matched to the new ratio. Inspect the front driveshaft U-joints and axle seals during the job, since the axle is open.
A front gear change also shifts the balance between front and rear axle speeds when the vehicle is in four-wheel drive. Keep tire sizes matched front to rear. Mismatched tires can cause driveline binding, which is harder on the front differential than on the rear.
- Match tire sizes front to rear
- Inspect U-joints and axle seals while the axle is open
- Recheck front differential fluid after the break-in
Specifications
| Brand | Alloy USA |
|---|---|
| Part number | D44456JK |
| UPC | 804314239145 |
| Gear ratio | 4.56 |
| Axle type | Dana 44 JK |
| Axle location | Front (listed first) |
| Material | 8640 steel, forged |
Vehicle fitment
This gear set is for the front Dana 44 used on 2007 to 2018 Jeep Wrangler (JK) vehicles. Confirm the front axle is a Dana 44 before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A front ring and pinion must be set with correct pinion depth and backlash, which is work for a shop with gear-setting tools. Allow for a break-in period and check the contact pattern once the set is installed.
What’s included
One ring and pinion set. Check the package contents against your installation before starting.
