Overview

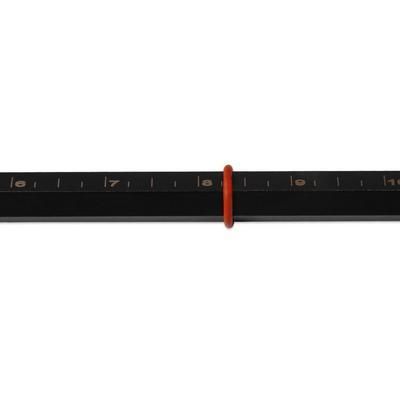

The All German Motorsports AGM-RPT-1420 Reservoir Piston Tool is a shop tool for measuring and setting shock reservoir piston depth during service. Its fitment is universal, since it works on shock reservoirs rather than a particular vehicle.
The tool can also monitor or prevent piston movement while air is bled from a shock. It is made in the U.S.A. from high-grade steel.
Key features
- Measures and sets shock reservoir piston depth
- Helps monitor or prevent piston movement while bleeding air from a shock
- Heavy duty high-grade steel construction
- Made in the U.S.A.
Setting shock reservoir depth
A reservoir shock keeps its gas and oil separate from the main body, and the piston inside the reservoir sets how the shock performs under load. When a shock is serviced, the piston depth needs to be correct before the unit goes back on the vehicle. A tool for this job gives a repeatable reference, so the shock is set the same way each time instead of by feel.

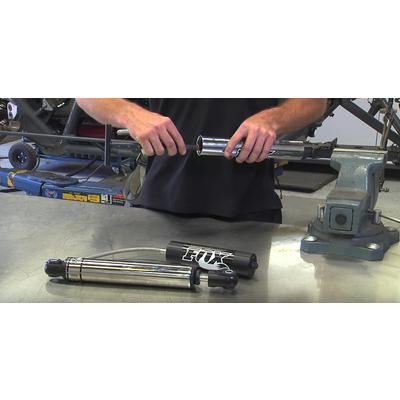

Bleeding air from a shock often causes the piston to move, which can change the setting you just made. Holding the piston in place during bleeding helps keep the depth steady. Work slowly, check the reading after each step, and keep the work area clean so dirt does not enter the reservoir.
- Confirm the reservoir type before selecting the setting
- Recheck piston depth after bleeding is finished
- Keep fluid and tools clean during service
Specifications
| Brand | All German Motorsports |
|---|---|
| Part number | AGMAGM-RPT-1420 |
| Model | AGM-RPT-1420 |
| Material | High-grade steel |
| Origin | Made in the U.S.A. |
| Compatibility | All major brand name shock reservoirs and lengths |
Vehicle fitment
Universal fit. It works on major brand name shock reservoirs and lengths, so it is not tied to a vehicle year, make or model. Match the tool to the reservoir you are servicing.
What’s included

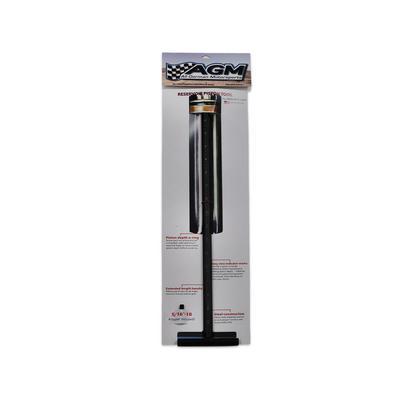

Reservoir Piston Tool, model AGM-RPT-1420.
