325/60R20 is 35.4 inches tall and 12.8 wide. The tire size formula, a chart of 24 off-road sizes in inches, speedometer error and regearing…
Wheels
Showing 1693–1704 of 1731 resultsSorted by popularity
-
Wheels

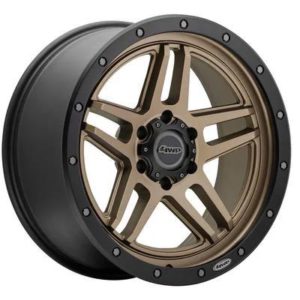

4 Wheel Parts Factory T-Series Wheel, 20x9 with 6 on 135 Bolt Pattern – Bronze / Black – 9514-293650
Wheels4 Wheel Parts Factory T-Series Wheel, 20x9 with 6 on 135 Bolt Pattern – Bronze / Black – 9514-293650
- Bronze and black T-Series wheel with split spokes
- 6 on 135 bolt pattern and 87 center bore
- Offset 0 and backspacing 5
- Aluminum, 20 Inches by 9 Inches
- Part number 4WP9514-293650
SKU: 4WP9514-293650 -
Wheels
4 Wheel Parts Factory T-Series Wheel, 20x9 with 5 on 5.5 Bolt Pattern – Satin Black – 5014-298550
Wheels4 Wheel Parts Factory T-Series Wheel, 20x9 with 5 on 5.5 Bolt Pattern – Satin Black – 5014-298550
- 4 Wheel Parts T-Series aluminum split spoke wheel, 20 x 9 inches
- 5 on 5.5 bolt pattern, center bore 108, offset 0
- Satin black finish, backspacing 5 inches
- Part number 4WP5014-298550
SKU: 4WP5014-298550 -
Wheels
4 Wheel Parts Factory T-Series Wheel, 20x9 with 5 on 5.5 Bolt Pattern – Bronze / Black – 9514-298550
Wheels4 Wheel Parts Factory T-Series Wheel, 20x9 with 5 on 5.5 Bolt Pattern – Bronze / Black – 9514-298550
- 20 x 9 inch split spoke aluminum wheel with a 5 on 5.5 bolt pattern
- Bronze with black finish, 108 center bore, offset 0, backspacing 5
- No vehicle is named, so match the bolt pattern and offset to your vehicle before mounting
- Part number 9514-298550 from 4 Wheel Parts’ T-Series
SKU: 4WP9514-298550 -
Wheels

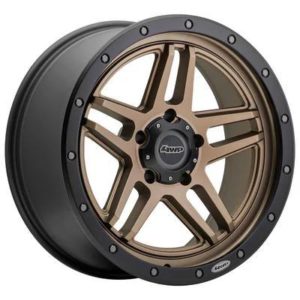

4 Wheel Parts Factory T-Series Wheel, 20x9 with 5 on 150 Bolt Pattern – Bronze / Black – 9514-295550
Wheels4 Wheel Parts Factory T-Series Wheel, 20x9 with 5 on 150 Bolt Pattern – Bronze / Black – 9514-295550
- Bronze and black split spoke wheel, 20 Inches by 9 Inches
- Bolt pattern 5 on 150 with a 110 center bore
- Offset 0 and backspacing 5
- Aluminum build from the T-Series line
- Part number 4WP9514-295550
SKU: 4WP9514-295550 -
Wheels
4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 6 on 5.5 Bolt Pattern – Satin Black – 5014-7858347
Wheels4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 6 on 5.5 Bolt Pattern – Satin Black – 5014-7858347
- 17 in by 8.5 in split spoke aluminum wheel in satin black
- 6 on 5.5 bolt pattern, offset 0, backspacing 4.75
- Center bore 106
- Fit to your vehicle must be confirmed before mounting
SKU: 4WP5014-7858347 -
Wheels
4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 6 on 135 Bolt Pattern – Satin Black – 5014-7853647
Wheels4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 6 on 135 Bolt Pattern – Satin Black – 5014-7853647
- Split spoke wheel, 17 Inches by 8.5 Inches, satin black
- Bolt pattern 6 on 135 with a 87 center bore
- Offset 0 and backspacing 4.75
- Aluminum construction in the T-Series line
- Part number 4WP5014-7853647
SKU: 4WP5014-7853647 -
Wheels
4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 6 on 135 Bolt Pattern – Bronze / Black – 9514-7853647
Wheels4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 6 on 135 Bolt Pattern – Bronze / Black – 9514-7853647
- No vehicle named; universal fit is the only fitment statement
- 17 x 8.5 inch split spoke aluminum wheel, bronze and black
- 6 on 135 bolt pattern with an 87 center bore
- 0 offset and 4.75 backspacing
SKU: 4WP9514-7853647 -
Wheels
4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 5 on 5.5 Bolt Pattern – Satin Black – 5014-7858547
Wheels4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 5 on 5.5 Bolt Pattern – Satin Black – 5014-7858547
- 17×8.5 inch aluminum split-spoke wheel in satin black
- 5 on 5.5 bolt pattern, center bore 108
- Part of 4 Wheel Parts’ T-Series line
- Offset 0 and backspacing 4.75, so check clearance
- Tires and lug nuts not included
SKU: 4WP5014-7858547 -
Wheels
4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 5 on 5.5 Bolt Pattern – Bronze / Black – 9514-7858547
Wheels4 Wheel Parts Factory T-Series Wheel, 17x8.5 with 5 on 5.5 Bolt Pattern – Bronze / Black – 9514-7858547
- Fit should be checked against your hub before ordering.
- 17 x 8.5 inch split spoke aluminum wheel in bronze and black
- 5 on 5.5 bolt pattern with a 108 center bore
- 0 offset and 4.75 backspacing
- Part number 4WP9514-7858547
SKU: 4WP9514-7858547
Start with the bolt pattern and center bore
Every wheel is defined first by its bolt pattern, written as lug count and circle diameter, such as 6 on 5.5 or 8 on 170. It has to match your hub exactly. The center bore must be equal to or larger than the hub's pilot diameter. A larger bore is common on aftermarket wheels and is handled with hub-centric rings.
Diameter, width and tire size
Wheel diameter sets which tire sizes you can mount, and width limits how wide a tire stays safe on the bead. As a general rule, a tire should be mounted on a rim within the range the tire maker lists for that tire size. A 17x9 wheel suits a different tire than a 20x10. Larger diameters look sharp but leave less sidewall, which gives up some cushioning and air-down ability on the trail.
Offset and backspacing
Offset is the distance from the wheel's mounting face to its centerline. Zero offset puts the face on the centerline, positive offset tucks the wheel inward and negative offset pushes it outward. Backspacing is measured from the mounting face to the back edge of the rim. More negative offset gives a wider stance, but it can rub fenders, change scrub radius and add load on wheel bearings and steering parts. Compare your stock offset with the wheel you are considering and check clearance at full lock and full compression.
Construction and finish
- Cast aluminum is the common choice for street and trail use.
- Forged and flow-formed designs are generally lighter for a given strength.
- Steel wheels are heavier but are easy to straighten and are popular for rock crawling and utility use.
- Beadlock-style rings are for off-road use, and rules for street use vary.
Fitment and installation notes
Listings may say Universal Fit, which usually means the wheel is built to a bolt pattern and not to a specific vehicle. Confirm fitment for your exact year, make and model, along with brake caliper clearance and the manufacturer's specifications. Have the wheels mounted and balanced by a tire shop. Torque lug nuts to the vehicle's specification in a star pattern, and recheck after the first 50 miles. Check that your lug nuts use the seat type the wheel needs, usually conical or flat. Many aftermarket wheels need different hardware than the factory nuts.
Common mistakes to avoid
Do not choose a wheel on looks alone. Confirm that the brake calipers clear the inside of the spokes, since larger calipers on some trucks need a specific barrel profile. Check the load rating stamped on the wheel, which matters for heavy trucks, trailers and loaded overland rigs. Mixing wheels with a different offset front to rear can change handling. Finally, inspect the wheel after hard trail use for bent lips, cracks near the hub and slow air leaks at the bead, because a small bend can cause a vibration that is often blamed on tire balance. Keep the mounting surface clean and free of rust before installing, since debris there lets lug nuts loosen over time.
Related guides
- 325/60R20 in Inches: Tire Size Math Made Simple
Popular Wheels brands
- FUEL Off-Road (632)
- Method Race Wheels (416)
- Pro Comp Alloy Wheels (303)
- Pro Comp Steel Wheels (82)
- Raceline Wheels (72)
- ICON Vehicle Dynamics (65)
- Mickey Thompson (47)
- 4 Wheel Parts (30)
- TIS Offroad (29)
- Lrg Rims (16)
- Black Rhino Wheels (15)
- Dick Cepek (8)
Wheels FAQ
What does 6 on 5.5 mean on a wheel?
It means six lug holes on a circle 5.5 inches across, which is also written as 6x139.7 millimeters. The pattern must match your vehicle's hub exactly. Wheels with a different pattern will not seat properly, even if they look close.
What is wheel offset?
Offset is the distance from the mounting surface to the wheel's centerline, measured in millimeters. Positive offset sits the wheel closer to the vehicle, negative offset pushes it outward. It controls stance, tire clearance and steering geometry, so compare it against your factory wheel.
Do I need hub-centric rings?
If the wheel's center bore is larger than your hub's pilot diameter, rings fill the gap so the wheel centers on the hub and not on the lug nuts. This helps prevent vibration. Many aftermarket off-road wheels use a larger bore, so check the spec.
