Suspension Air Helper Spring
Showing 13–24 of 25 resultsSorted by popularity
-
Suspension Air Helper Spring
Air Lift LoadLifter 5000 Ultimate Air Spring Kit – 88350
- Rear air bag kit with an internal jounce bumper
- Load leveling of up to 5,000 lbs of load
- Internal jounce bumper helps absorb shock even at zero air pressure
- Fits 2020–2022 Ford F-250 and F-350 Super Duty
- Part number AIR88350
SKU: AIR88350 -
Suspension Air Helper Spring
Firestone Ride-Rite Sport-Rite Air Helper Spring – 9001
- Firestone Ride-Rite Sport-Rite air helper spring, part number 9001
- Medium duty construction with up to 3000 lbs of leveling capacity
- Tapered spring design
- Direct Fit part; confirm fit for your vehicle before ordering
SKU: FIR9001 -
Suspension Air Helper Spring
Firestone Ride-Rite Air Helper Spring – 7882
- Firestone Ride-Rite double convoluted air helper spring, part 7882
- 6.6 inch bag diameter, 5 to 6.5 inch installed height
- 1/2 NPT air inlet, (2) 3/8 inch-16 top studs and (1) bottom blindnut
- Universal fit, UPC 767555110881
SKU: FIR7882 -
-
Suspension Air Helper Spring
Firestone Ride-Rite Sport-Rite Rear Air Helper Spring – 7105
- Universal fit rear air helper spring, Firestone Ride-Rite part 7105
- Sport-Rite line, 70mm reversible sleeve, 6 in. height, 3.5 in. diameter
- Rated 1000 lbs. max load at 100 psi
- OEM number W217607105, UPC 767555107980
SKU: FIR7105 -
-
-
Suspension Air Helper Spring
Firestone Ride-Rite Coil-Rite Air Helper Spring – 6004
- Firestone Ride-Rite Coil-Rite air helper spring, model 6004
- In-coil design for coil sprung vehicles, 4.75 Inches diameter
- Maximum air pressure 35 psi; 1/4 Inches air inlet
- Universal fit, not tied to a particular vehicle.
SKU: FIR6004 -
Suspension Air Helper Spring
Firestone Ride-Rite Air Helper Spring – 6869
- Firestone Ride-Rite single convoluted air helper spring, model 6869
- 7.2 Inches air bag diameter with 5 Inches-6 Inches installed height
- Rated for up to 5000 lbs of leveling capacity
- Two 3/8″-16 studs top, one blindnut bottom
SKU: FIR6869 -
Suspension Air Helper Spring

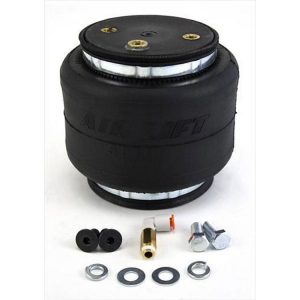

AirLift LoadLifter 5000 Ultimate Replacement Air Spring – 84264
- AirLift LoadLifter 5000 Ultimate replacement front air spring, part 84264
- Direct fit for 2007–2017 Toyota Tundra, 1794 Edition through TRD Pro trims
- Includes hardware and one air spring; not a full kit
- UPC 729199842641
SKU: AIR84264 -
Suspension Air Helper Spring

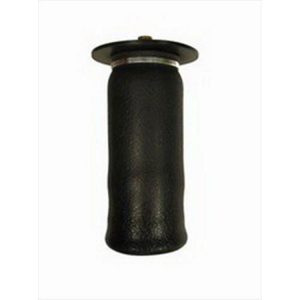

AirLift Replacement Sleeve – 50291
- AirLift Replacement Sleeve, part number 50291, a replacement air sleeve for AirLift air helper springs
- A direct replacement for an AirLift Helper Kit or a custom air system you fabricate yourself
- Universal fit, so confirm sizing against your air spring
SKU: AIR50291 -
Suspension Air Helper Spring
Firestone Ride-Rite Sport-Rite Air Helper Spring – 9000
- Firestone Ride-Rite Sport-Rite air helper spring, model 9000
- Tapered sleeve design with a 5.7 Inches air bag diameter
- Installed height 8.25 Inches; max extended height 10.25 Inches
- Rated for up to 3000 lbs of leveling capacity
SKU: FIR9000
What helper springs do and do not do
A truck that squats under a camper, a trailer tongue or a bed full of gear steers light, brakes poorly and aims its headlights at the trees. Air helper springs are rubber air bags mounted between the frame and the axle alongside the factory leaf or coil springs. Add air and they carry part of the load, leveling the truck and firming the rear; let air out when empty and the ride returns to stock. They do not raise the truck's gross vehicle weight rating or axle rating, and overloading a truck remains overloading no matter how level it sits. What they do is restore the attitude, handling and headlight aim of a loaded truck.
Types of kit
- Double convoluted bellows for leaf springs: the LoadLifter 5000 and Ride-Rite kits and the Rough Country rear kits. Rated to level up to 5,000 pounds, adjustable from 5 to 100 psi, with vehicle specific brackets. The LoadLifter 5000 Ultimate adds an internal jounce bumper so the bag can run at low pressure safely; the Ultimate Plus adds stainless roll plates and braided lines.
- Coil spring inserts: Coil-Rite and Air Lift 1000 kits put a polyurethane cylinder inside the factory rear coil of a Ram 1500 or SUV, rated around 2,100 pounds at 5 to 70 psi, usually no-drill.
- Kits with onboard compressor: Rough Country's kit bundles a compressor so pressure can be adjusted from the cab; manual fill kits use Schrader valves and a gas station or portable compressor.
Matching the kit
Helper spring kits are model specific down to the year range and often the trim, because the bracket shape follows the frame and axle. A 2019 to 2022 Ram 3500 kit differs from a 2014 to 2022 Ram 2500 kit, and a Ram 1500 Classic takes the earlier generation kit. Check for notes about overload springs, factory air suspension or lifted trucks, which can all change the fit. Measure the space between the frame and axle at the bag location at ride height and compare with the kit's minimum and maximum heights if your truck is lifted or lowered.
Manual fill or compressor
Manual fill is simple and reliable: two valves, set pressure before the trip, done. The downside is that pressure cannot be changed on the move, and a loaded truck often wants a different pressure once the trailer is hooked up. An onboard compressor with a gauge, or a wireless controller, lets you adjust from the cab and lets the system top up a slow leak. Dual path systems fill each side independently so an off-center load can be leveled; single path systems tie both bags together and are simpler.
Installation and use
Most kits bolt to existing holes and take one to two hours, with no-drill kits faster. Route the air line away from heat, moving parts and pinch points, cut it square and seat it fully in the push-to-connect fittings. Inflate to about 5 psi and check that the bags sit straight in the brackets and clear the tires, exhaust and brake lines, then raise pressure and soap test every fitting. Never run below 5 psi, even unloaded, so the bag does not fold on itself, and never above the kit's maximum. Set pressure to level the truck, not to its maximum; a few pounds in the empty bags is normal.
After installation, re-aim the headlights with the typical load aboard, and check pressure monthly. Replacement bags for these kits are in the Air System Replacement Air Bags category when a spring eventually wears out.
Popular Suspension Air Helper Spring brands
Suspension Air Helper Spring FAQ
Do air helper springs increase my truck's payload capacity?
No. They level and stabilize a loaded truck but do not change the gross vehicle weight rating or axle ratings set by the manufacturer. Use them to restore ride height and handling within the truck's rating, not to carry more than it was designed for.
What pressure should I run in my air helper springs?
Enough to level the truck under its load and no more. Keep at least 5 psi at all times so the bag does not fold, and stay below the kit maximum, usually 100 psi for bellows and 50 to 70 psi for coil inserts. Adjust when the load changes.
Can I install an air helper spring kit myself?
Most kits bolt to existing holes with basic hand tools and take one to two hours, and no-drill kits are quicker. Route the air line carefully, soap test for leaks, and have a shop check it if you are not comfortable working around the axle and brake lines.
Do I need an onboard compressor?
Not necessarily. Manual fill kits work well if your load is consistent. An onboard compressor lets you adjust pressure from the cab as the load changes and tops up slow leaks, which towers and campers appreciate. Dual path systems also let you level an off-center load.
