Overview
The Firestone Ride-Rite Sport-Rite 9000 is an air helper spring with a tapered sleeve design, used to add leveling support to an air suspension. The tapered spring design provides up to 3000 lbs of leveling capacity, and the air bag measures 5.7 Inches across.
The identifier for this helper spring is model 9000, which is marked Direct Fit. Confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Tapered sleeve air bag with a tapered spring design
- Up to 3000 lbs of leveling capacity
- Aims to keep the vehicle level under off-center loads
- It helps reduce bottoming out and suspension fatigue.
- Air adjustments are said to improve ride quality
Choosing a tapered sleeve
A tapered sleeve changes how the bag folds as it compresses, so the air bag and sleeve work together through the full range of travel. That shape suits drivers who want the helper to support the rear under changing weight without adding much bulk to the mounting area.
When comparing sizes, look at the installed height and the maximum extended height together. The bag needs room to move without touching the frame, shocks or axle. Replacing both sides at the same time keeps the ride balanced, since a worn bag on one side can pull the vehicle out of level.
- Compare installed height with your current bag
- Check the blindnut pattern on both ends
- Replace helpers in pairs for even ride height
Specifications
| Brand | Firestone Ride-Rite |
|---|---|
| Model | 9000 |
| UPC | 70000872321 |
| Air bag type | Tapered Sleeve |
| Air bag diameter | 5.7 Inches |
| Installed height | 8.25 Inches |
| Max extended height | 10.25 Inches |
| Max compressed height | 10.25 Inches |
| Air inlet size | 1/4 NPT |
| Mounting type | (2) 3/8″-16 blindnuts top, (1) 3/8″-16 blindnut bottom |
| Leveling capacity | Up to 3000 lbs |
| Direct Fit | Direct Fit |
Vehicle fitment
Check the blindnut layout and the 8.25 Inches installed height against your vehicle before choosing it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes

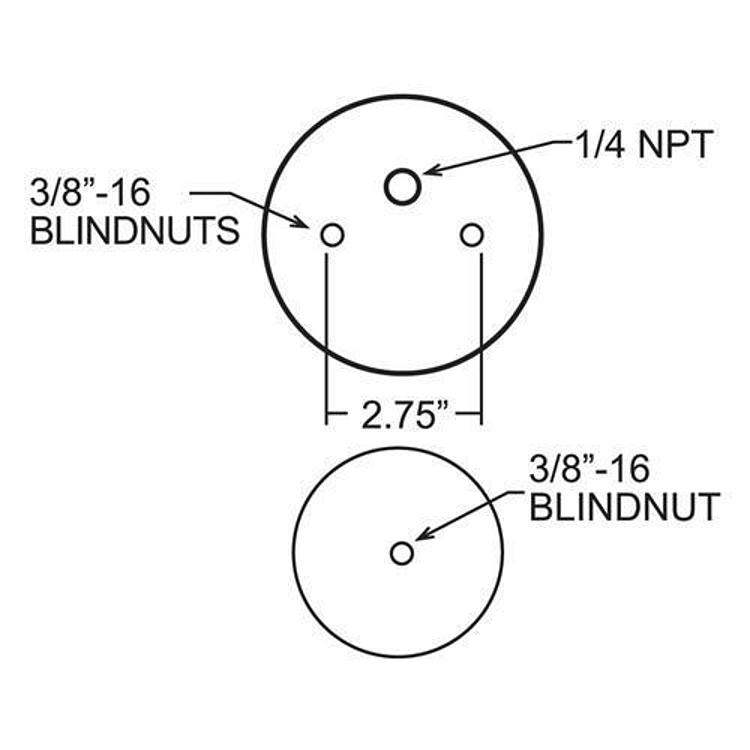

The top has two 3/8″-16 blindnuts and the bottom has one, so confirm the mounting points match your bracket before fitting.
What’s included
Confirm the included items against your installation plan before fitting.
