Overview

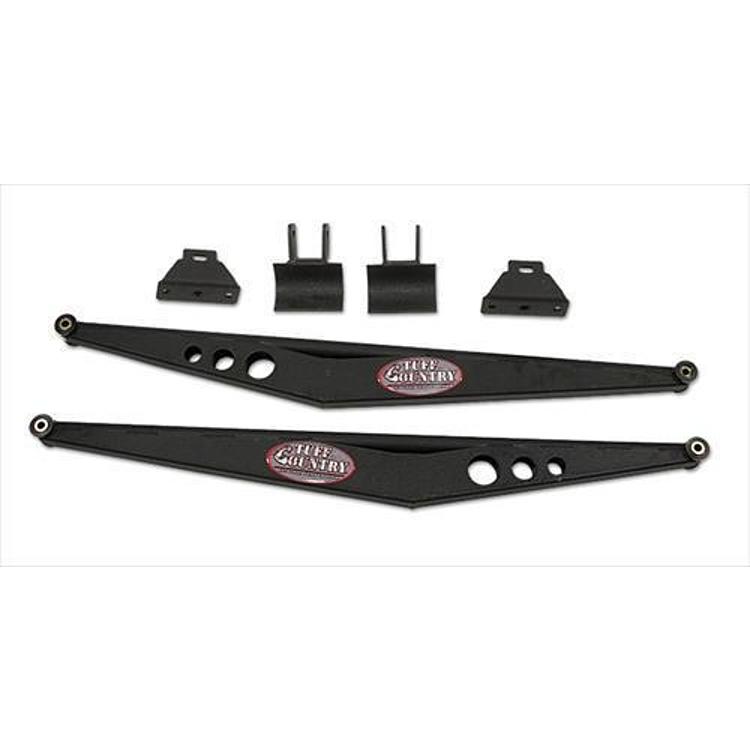

The Tuff Country Ladder Bars 10890 are rear ladder bars for lifted Chevrolet and GMC K-series trucks from 1988 to 1998, with the GMC K2500 listed through 2000. Ladder bars like these reduce the wheel hop and axle wrap that can follow a lift when larger wheels and tires are added.
The ladder bars are a direct fit, bolt-on rear upgrade intended for better traction and handling on a lifted truck.
Key features
- Ladder bar design for increased traction
- 1.25 inch tubing
- Powdercoated black finish for durability
- Direct fit, bolt-on mounting
- All required mounting hardware included
Ladder bars and axle location
A ladder bar fixes the axle’s fore-and-aft position and limits how far it can twist under acceleration and braking. Lifted trucks with larger tires can wind the axle, so a ladder bar helps keep the driveline stable. Mounting points on the frame and axle should be checked for cracks and loose bolts after the first drives.
Ladder bar length and mounting angle affect pinion angle, so alignment and driveline angles should be checked after installation. Bushings at each end of the bar wear over time, and worn bushings let the axle move more than intended. When replacing bars, consider the shock and spring mounts, since these are often inspected at the same time.
- Check pinion and driveline angles
- Inspect bushings for wear
- Look for cracks at frame mounts
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 10890 |
| UPC | 698815108907 |
| Position | Rear |
| Color | Black |
| Tubing | 1.25 inch |
| Finish | Powdercoated |
| Mounting | Bolt-on, direct fit |
Vehicle fitment
The ladder bars fit 1988–1998 Chevrolet K1500, K2500 and K3500 trucks, 1988–1998 GMC K1500 and K3500 trucks, and 1988–2000 GMC K2500 trucks, with several trims named for each model.
Not covered: other generations of Chevrolet and GMC trucks, and Dodge Ram models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A ladder bar changes how the rear axle is located, so have the alignment and driveline angles checked after installation.
What’s included
All required mounting hardware is included with the ladder bars.
