Overview

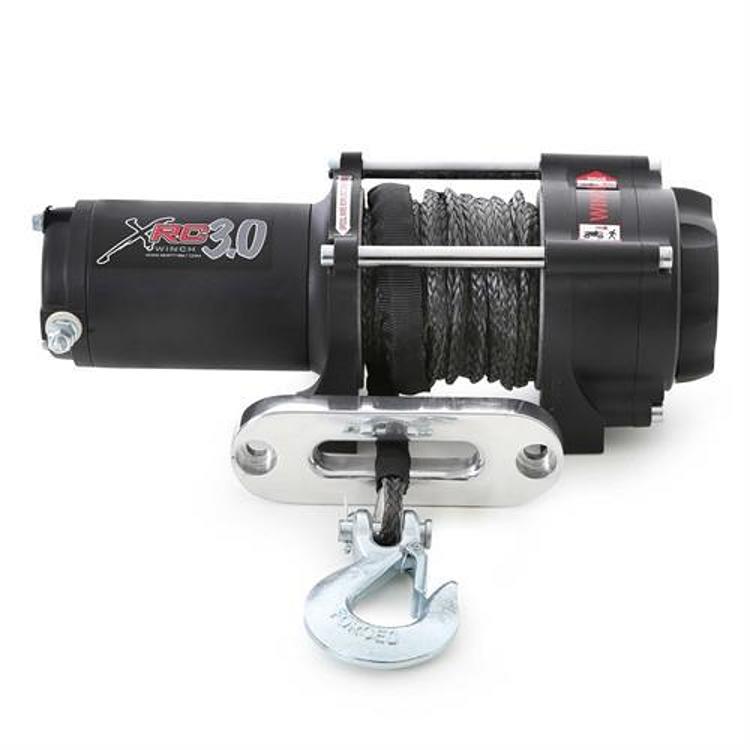

The Smittybilt 98203 is the XRC3 Comp winch, rated for 3000 lb line pull and supplied with 40 ft. of synthetic DSK-75 rope. Smittybilt positions it for ATV and UTV recovery, where a light synthetic line is easier to handle than steel cable. The 3000 lb rating suits smaller machines, and the 40 ft. length gives extra reach for a pull from a distance.
The winch uses a 2-stage planetary gear train with a 136:1 reduction and a self-locking brake. Its hawse fairlead is matched to synthetic rope, and the remote switch is supplied on a 12 ft. lead.
Key features
- 3000 lb rated line pull
- 40 ft. of synthetic DSK-75 rope
- 2-stage planetary gear train with a 136:1 ratio
- Self-locking brake
- Hawse fairlead
- Remote switch with a 12 ft. lead
Synthetic rope on smaller machines
On an ATV or UTV, a lighter rope is easier to handle than steel cable, both when spooling it by hand and when carrying it on the machine. Synthetic rope also tends to be gentler on the hands and on the machine’s bodywork. The trade-off is that synthetic fibers need protection from abrasion, so use a smooth hawse and keep the rope clear of sharp rock edges during a pull.
The 40 ft. length gives extra reach, which helps when the machine has to stay on firm ground while the load is pulled from a distance. Keep the rope wound evenly on the drum, and avoid letting it pile on one side. Uneven wraps can bind during the next pull and wear the rope faster.
Check the rope after every recovery. Look for fuzzing, cuts and glazed spots, and keep it dry before storing it. The remote switch should be kept within easy reach so you can stop the winch as soon as the load moves unexpectedly.
- Keep the rope wound evenly on the drum
- Use a smooth hawse and keep clear of sharp rock
- Dry the rope before storing it
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 98203 |
| UPC | 631410102499 |
| Rated line pull | 3000 lb |
| Motor | 3.9 hp |
| Control | Remote switch, 12 ft. lead |
| Gear train | 2-stage planetary |
| Gear reduction ratio | 136:1 |
| Braking action | Self-locking |
| Drum size | 1.97 in. |
| Cable | 40 ft. synthetic DSK-75 rope, about 1/7 the weight of steel |
| Fairlead | Hawse |
Vehicle fitment
It is a universal fit winch. Confirm the mounting plate and bumper on your ATV or UTV before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The 40 ft. synthetic rope and the remote switch are included. Mounting hardware isn’t itemized, so confirm it with Smittybilt before ordering.
