Overview

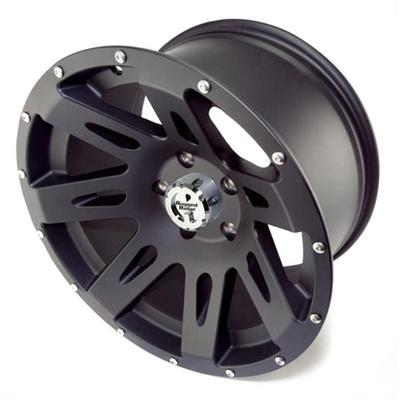

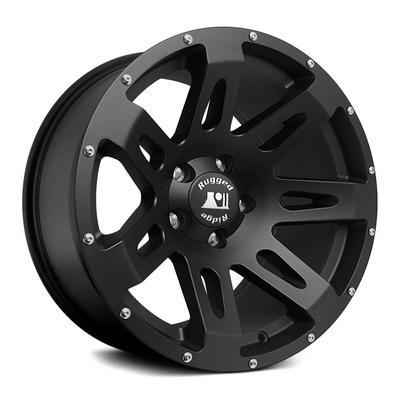

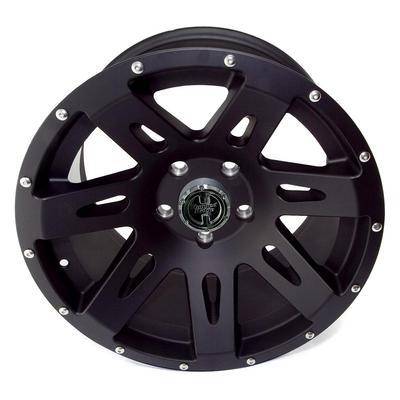

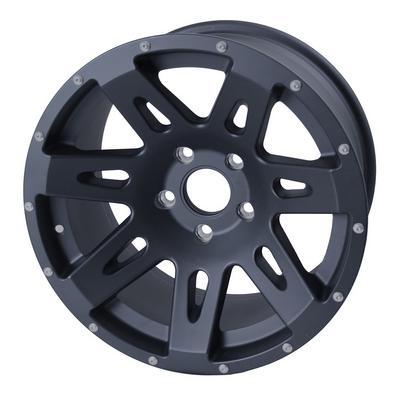

The Rugged Ridge XHD wheel, part number RUG15305.01, is an 18×9 aluminum wheel in satin black with a 5 on 5 bolt pattern. It is a custom wheel design from the XHD line and is designed for the 2007-2017 Jeep Wrangler.
The wheel is hub-centric, so it centers over the hub for a secure fit, with clearance for brake rotors, steering components and suspension. Stainless steel button-head cap screws on the outer face give a three-piece look, and an optional trim ring can be added.
Key features
- New XHD design for 2007-2017 Wranglers
- Hub-centric design
- Stainless steel button-head cap screws for a three-piece look
- Optional trim ring for accessorizing
- Four finishes: satin black powder coated, satin black with machined lip, silver powder coated, dual-stage polished chrome
- Limited lifetime structural warranty per the brand
Hub-centric fit explained
Hub-centric wheels rely on a center bore that closely matches the hub, so the wheel is located by the hub rather than by the lug studs alone. This keeps the wheel centered during mounting and reduces the chance of vibration that comes from an off-center fit. Lug nuts then clamp the wheel in place, so their seat type still needs to match the wheel.
Before buying, compare the hub bore and offset with your vehicle’s existing wheels. A change in backspacing moves the face in or out and can change how close the wheel comes to the brake caliper, steering arms and fender. Tire diameter and width also affect the stance, so test-fit the wheel and tire together before driving.
Once mounted, recheck the lug nut torque after the first few drives and inspect the hub face for corrosion or debris. Wheels that were not fully seated can loosen, so watch for vibration or a clicking sound during early use.
- Hub bore and center cap fit
- Brake caliper and steering clearance
- Lug nut seat type and torque
- Tire diameter and width for stance
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | RUG15305.01 |
| Series | XHD |
| Wheel size | 18×9 |
| Bolt pattern | 5 on 5 |
| Offset | -12mm |
| Backspacing | 4.53 inch |
| Finish | Satin black |
| Strength standard | SAE J2530, tested per the brand |
| Warranty | Limited lifetime structural warranty and 1 year finish warranty |
| Design patent | US Patent No. D761,183 |
Vehicle fitment

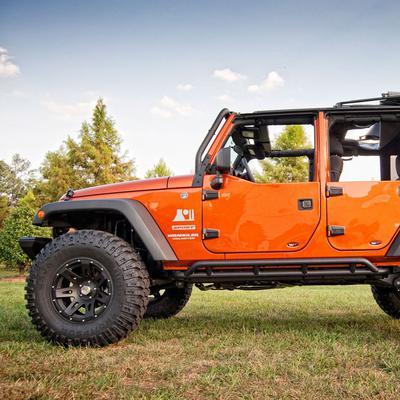

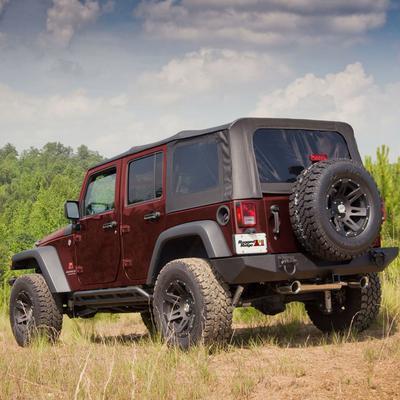

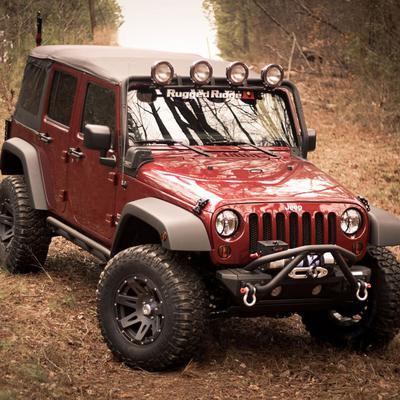

It is designed for the 2007-2017 Jeep Wrangler (JK). Check hub bore and brake clearance before fitting.
Other Wrangler generations and Gladiator models fall outside this wheel’s design range. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Hub-centric wheels need a hub bore that matches the wheel, so confirm that before mounting. The -12mm offset and 4.53 inch backspacing change how the wheel sits in the wheel well, so check brake and steering clearance after the first install.
What’s included
A UV-treated polished center cap comes with the wheel. The optional trim ring is sold separately, and lug nuts are not part of the wheel, so source them to match your hub.
