Overview

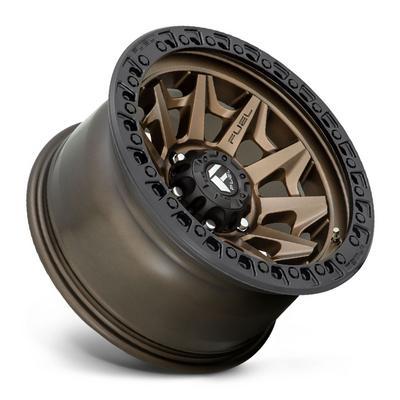

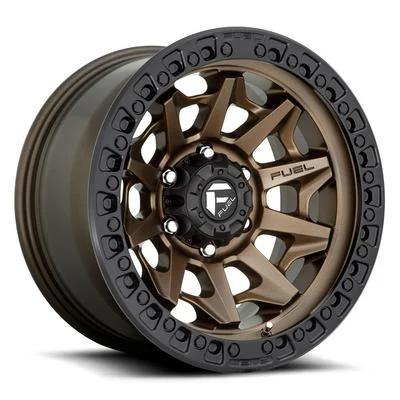

The FUEL Off-Road D696 Covert is a 17×9-inch aluminum mesh wheel with an 8 on 180 bolt pattern, a bronze and black finish and part number MHTD69617901850. It is part of the brand’s Covert line, built within FUEL Off-Road’s off-road design range.
An offset of 1, a center bore of 124 and a backspacing of 5.04 place this wheel differently on the hub than a higher-offset wheel would sit. Those figures govern clearance to brakes, control arms and fenders, so check them against your truck before mounting. The brand lists universal fitment instead of a vehicle list.
Key features
- Mesh style with a bronze and black finish
- 17-inch diameter and 9-inch width
- 8 on 180 bolt pattern with a 124 center bore
- Aluminum construction
- Offset of 1 and backspacing of 5.04
Mesh wheels on trail and road
Open mesh spokes let you see the brake components, but mud and grit can pack into the gaps. After a muddy run, rinse the back of the spokes and the lug area where debris collects, since trapped grit can scratch the bronze finish.
Aluminum mesh wheels can bend when they hit a rock at speed, so inspect the lip and the spoke roots after rough trails. A small bend can cause a slow leak or a wobble that grows worse over time. Check tire pressure before each trip and recheck the lug nuts after the first drive on a new set.
When choosing tires for a mesh wheel, confirm the bead fits the wheel’s rim width and that the load rating suits your vehicle. Matching the tire diameter to the original setup keeps the speedometer and gearing closer to stock.
- Rinse mud from the back of the spokes
- Inspect the lip after rock strikes
- Match tire diameter to the original setup
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD69617901850 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Offset | 1 |
| Center bore | 124 |
| Backspacing | 5.04 |
| Bolt pattern | 8 on 180 |
| Style | Mesh |
| Finish | Bronze / Black |
| Construction | Aluminum |
| Fitment | Universal fit |
Vehicle fitment
This wheel is listed with universal fitment rather than a specific vehicle list. Match the 8 on 180 bolt pattern and 124 center bore to your hub, then check offset 1 and backspacing 5.04 for clearance.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Eight-lug 8 on 180 hubs need lug nuts that suit the wheel’s seat type. The 124 center bore must clear your hub’s pilot, or a hub-centric ring is needed. Confirm tire size, load rating and clearance before driving on the new wheel.
What’s included
The package includes one wheel.
Not included: Plan to source tires, lug nuts and center caps separately before mounting.
