Rugged Ridge Heavy-Duty Shackles – 18265.04

Rugged Ridge

Out of stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 20, 2026 7:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1959–1975 Jeep CJ3, CJ5 and CJ6 and 1955–1958 Willys models, per the listed years
  • Steel greaseable shackles with red bushings
  • Adds 1 inch of lift
  • Supplied as a pair, front or rear

Description

Overview

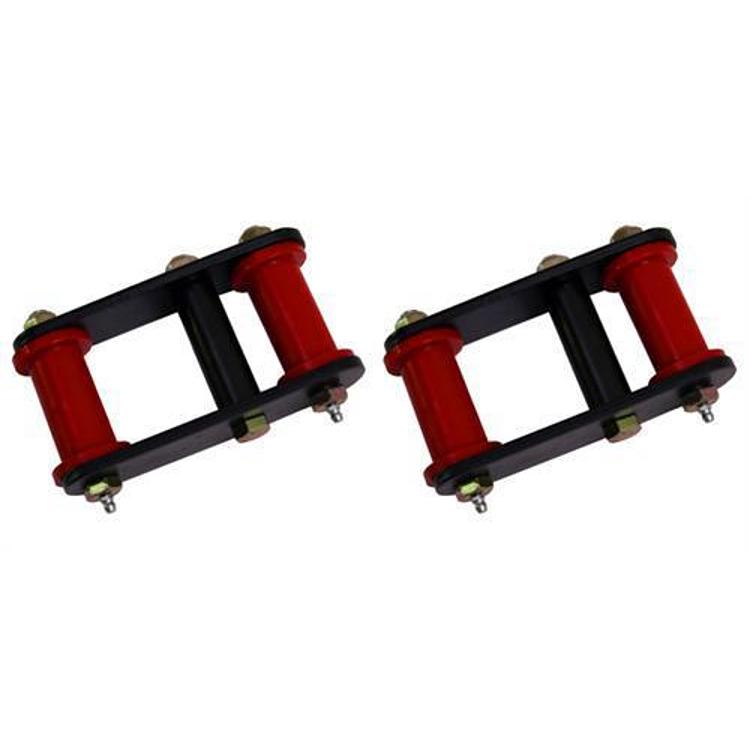

The Rugged Ridge 18265.04 is a pair of steel heavy-duty greaseable leaf spring shackles with red bushings for older Jeep CJ and Willys models, and adds 1 inch of lift.

The shackles are easy to grease and are a direct fit, bolt-on application. They can be installed at the front or the rear of the vehicle.

A leaf spring shackle is the link at the end of a leaf spring that lets the spring change length as the suspension moves. Replacing the original shackles with a longer pair changes the spring angle and raises that end of the vehicle slightly, which is how this pair adds 1 inch of lift.

The greaseable design lets the shackle pivots be lubricated during normal maintenance, which can help the bushings last. They fit several early Jeep CJ and Willys models, and for the CJ5 they cover the Base and Renegade trims.

Key features

  • Steel heavy-duty shackles
  • Greaseable
  • Red bushings
  • Adds 1 inch of lift
  • Front or rear use
  • Supplied as a pair
  • Direct fit, bolt-on application

Greasing and inspection

Leaf spring shackles let the spring change length as the suspension moves, so they carry a lot of repeated movement at the pivot. Grease helps reduce friction and wear in the bushing, and a greaseable design makes that maintenance possible without taking the spring apart. Keeping the pivots lubricated is one of the simplest ways to slow down wear.

Inspect the shackles regularly for play, cracks and uneven ride height from side to side. Replacing a shackle usually means checking the spring eye and the frame hanger as well. Always support the axle before loosening the old shackles, and follow the same tightening steps on both sides.

  • Grease the pivots at regular intervals
  • Check for play when the vehicle goes over bumps
  • Inspect the spring eye and frame hanger during replacement

Specifications

Brand Rugged Ridge
Part number 18265.04
UPC 804314128593
Product type Leaf spring shackle kit
Material Steel
Bushings Red
Service Greaseable
Lift 1 inch
Location Front or rear
Quantity Supplied as a pair
Fit type Direct fit, bolt-on

Vehicle fitment

The manufacturer fitment list for the Rugged Ridge 18265.04 covers the 1959–1960 and 1966 Jeep CJ3, the 1959–1960 and 1966–1975 Jeep CJ5 (Base, Renegade) and CJ6, and the 1955–1958 Jeep Willys CJ-3 and CJ-5 and the 1956–1958 Willys CJ-6.

this product does not cover the later CJ7 or the Wrangler models. Model years listed are not continuous, so check your exact year. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Suspension components affect steering, braking and handling, so professional installation is recommended. Support the vehicle on jack stands rather than a jack alone, torque every fastener to the correct specification, and recheck the torque after the first miles of driving. Have the alignment checked after any suspension work, and check local regulations on vehicle height. Grease the shackles as the instructions direct.

What’s included

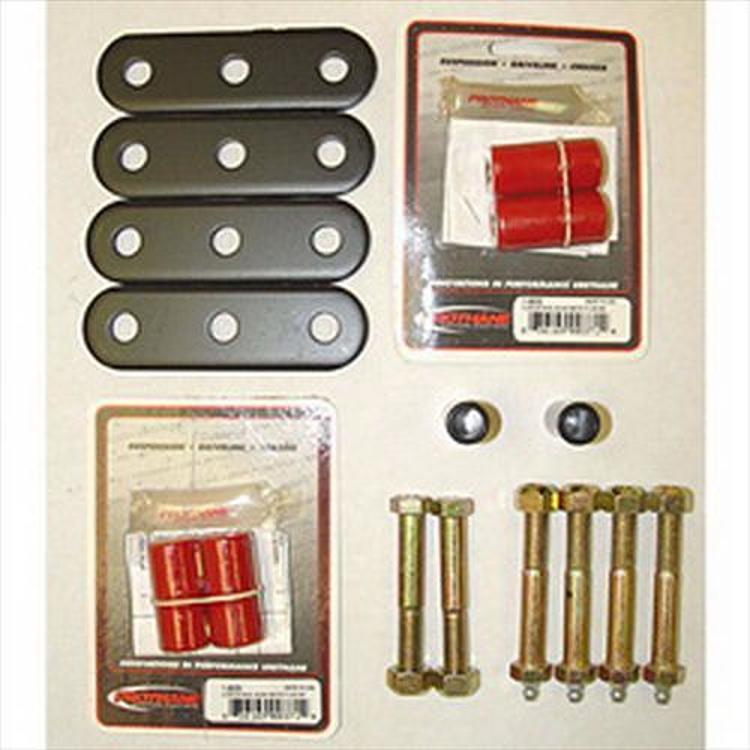

  • Pair of steel leaf spring shackles with red bushings
SKU: RUG18265.04 Category:

Specification

Shipping weight 4.00 lbs
Package dimensions 7.00 × 7.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ31959–1960, 1966Base
Jeep CJ51959–1960, 1966–1975Base, Renegade
Jeep CJ61959–1960, 1966–1975Base
Jeep Willys CJ-31955–1958All
Jeep Willys CJ-51955–1958All
Jeep Willys CJ-61956–1958All

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeeps does the Rugged Ridge 18265.04 shackle kit fit?

The manufacturer list covers certain years of the Jeep CJ3, CJ5 and CJ6 between 1959 and 1975, plus the 1955–1958 Willys CJ-3, CJ-5 and the 1956–1958 CJ-6. Check your exact year before ordering.

How much lift do the Rugged Ridge 18265.04 shackles give?

Each pair adds 1 inch of lift by changing the spring angle at the shackle end. They are steel, greaseable and fitted with red bushings, so the pivots can be serviced.

Does the 18265.04 come as a pair?

Yes. The kit is supplied as a pair of leaf spring shackles, so both sides are covered. It can be installed at the front or the rear, depending on the axle being serviced.

How do you know when leaf spring shackles need replacing?

Look for play or clunking at the shackle over bumps, dried or cracked bushings, and uneven ride height from side to side. Greasing at regular intervals slows wear, but worn bushings still need replacement.
