Rugged Ridge Heavy-Duty Greaseable Shackles – 18265.12

Rugged Ridge

Shop Jeep CJ7 Leaf Spring Shackle Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pair of heavy-duty greaseable rear leaf spring shackles
  • Adds 1 inch of lift, red bushings
  • Fits Jeep CJ5, CJ7 and Scrambler models
  • Direct fit, no drilling required

Description

Overview

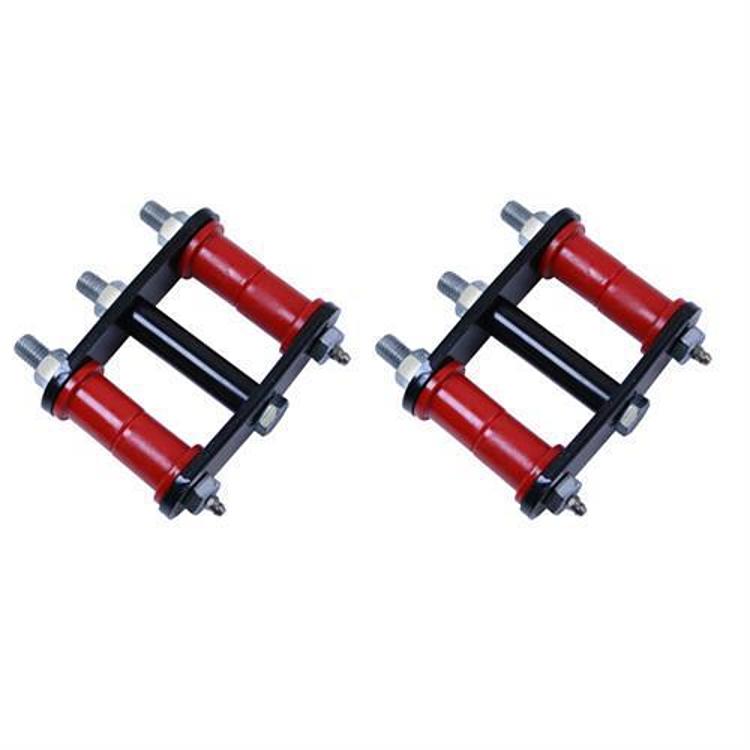

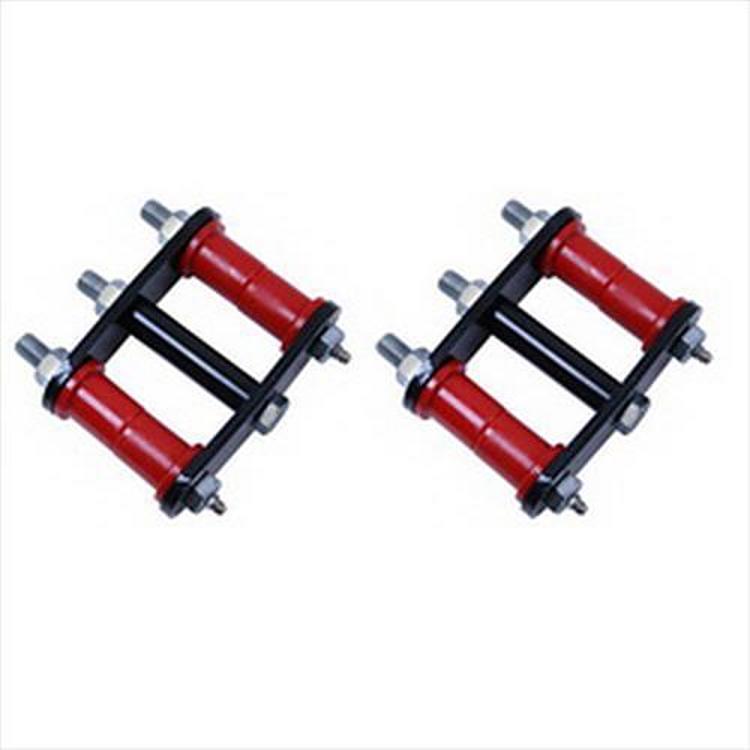

The 18265.12 is a pair of heavy-duty greaseable rear leaf spring shackles with red bushings for the Jeep CJ5, CJ7 and Scrambler. The steel shackles add 1 inch of lift.

The shackles are a direct fit, with no drilling required, and are easy to grease. They are supplied as a pair.

Key features

  • Pair of heavy-duty steel shackles
  • Greaseable design
  • Red bushings
  • Adds 1 inch of lift
  • Rear position
  • Direct fit, no drilling required

Matching pairs and greasing

Rear leaf spring shackles carry the load of the spring as it moves, so both sides of the axle should be replaced together to keep the ride height even. Replacing shackles and bushings in matched pairs avoids a situation where one side sits higher or moves differently from the other. Worn bushings can also make the rear end feel loose on the trail.

Greasing is part of routine upkeep for this type of shackle. Work grease into each fitting until fresh grease shows at the pivot, and wipe away excess so dirt does not collect. Check the rear brake lines and shocks for slack after the lift, since a change in shackle angle can shift their position.

  • Replace shackles and bushings as a matched pair
  • Grease each fitting before the first drive
  • Check brake lines and shocks for slack after the lift

Specifications

Brand Rugged Ridge
Part number 18265.12
UPC 804314128630
Product type Leaf spring shackle kit
Position Rear
Material Steel
Bushings Red
Lift 1 inch
Supplied as A pair
Fit type Direct fit, no drilling
Manufacturer part code RUG18265.12

Vehicle fitment

The 18265.12 fits the 1976 to 1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade), the 1976 to 1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade) and the 1981 to 1985 Jeep Scrambler (Base, Laredo, Renegade, SL, SR).

The shackles add 1 inch of lift and are rear leaf spring shackles. Compare the length of your factory shackle with the new pair before ordering.

The 18265.12 fits the CJ5, CJ7 and Scrambler only. It does not fit YJ, TJ, LJ, JK or JL Wranglers. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Replace shackles and bushings in matched pairs on the same axle where possible, grease them as the manufacturer directs, and check that the rear brake lines and shocks have enough slack after the lift. Greaseable shackles hold the leaf spring to the frame, so support the axle before loosening the old pair and tighten the new bolts with the springs at normal ride height. Put grease in each fitting before the first drive. Park on level ground afterward and check that the axle sits square.

What’s included

  • Pair of rear leaf spring shackles with red bushings
SKU: RUG18265.12 Category:

Specification

Shipping weight 5.00 lbs
Package dimensions 8.00 × 8.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What Jeeps does the Rugged Ridge 18265.12 fit?

The 18265.12 fits the 1976 to 1983 CJ5, the 1976 to 1986 CJ7 and the 1981 to 1985 Scrambler, with trims named under Vehicle fitment. Confirm fit for your vehicle's year, model and trim before ordering.

How much lift do the Rugged Ridge 18265.12 shackles add?

The shackles add 1 inch of lift. They are steel rear leaf spring shackles with red bushings, and they are supplied as a pair so both sides of the axle match.

Are the Rugged Ridge 18265.12 shackles greaseable?

Yes. They are greaseable, so the pivots can be lubricated during normal maintenance. The shackles are heavy-duty steel with red bushings, and they are supplied as a pair for the rear leaf springs.

Do these shackles need drilling?

No. The shackles are a direct fit with no drilling required. They are steel rear leaf spring shackles and come as a pair, so both sides can be replaced together.

Should shackles and bushings be replaced together?

Often yes. Replacing shackles and bushings in matched pairs on the same axle keeps both sides even in height and ride. Old bushings that have hardened or cracked can cause rattles, so replacing them at the same time is common practice.
