Overview

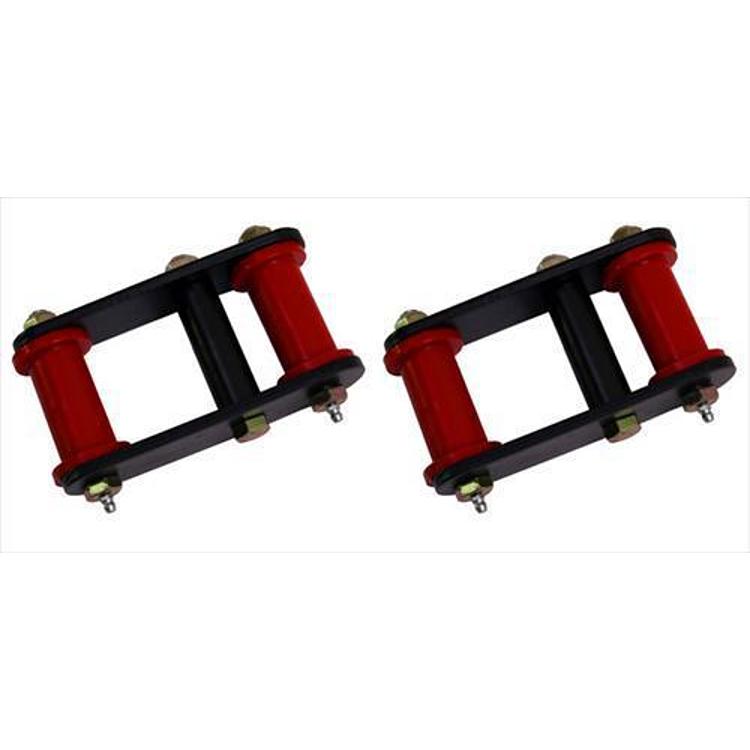

The Rugged Ridge Heavy-Duty Shackles, part number 18265.02, are a pair of greaseable leaf spring shackles for the front or rear of Jeep CJ3, CJ5 and CJ6 vehicles and Willys CJ models. They provide 1 inch of lift and bolt on without drilling.
No bushings are included with these shackles, and the greaseable design lets you lubricate the pivot points after installation.
Key features
- Greaseable shackle design
- Front or rear use
- Bolt-on installation with no drilling required
- Provides 1 inch of lift
- Supplied as a pair
Pivot care after installation
A greaseable shackle pivot gets its service after installation, so plan a grease schedule as part of the job. Pump lubricant into the fitting until it shows at the pivot seal, which pushes out dirt and water. Repeat this at regular intervals, especially after mud, creek crossings or high-pressure washing.
Because no bushings come with the pair, inspect the existing bushings in the spring eyes before reassembly and replace any that are cracked or flattened. Recheck the bolts after the first few drives, since new hardware can settle. The 1 inch of lift increases the angle at the driveshaft, so inspect the U-joints and yoke for wear and vibration. Keep a note of the service dates so the pivots are greased on schedule.
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 18265.02 |
| UPC | 804314000356 |
| Quantity | Pair |
| Mounting location | Front or rear |
| Lift | 1 inch |
| Bushings | None included |
| Lubrication | Greaseable |
Vehicle fitment
Rugged Ridge lists these shackles for the following models:
- Jeep CJ3: 1959–1960, 1966
- Jeep CJ5: 1959–1960, 1966–1975
- Jeep CJ6: 1959–1960, 1966–1975
- Willys CJ-3: 1955–1958
- Willys CJ-5: 1955–1958
- Willys CJ-6: 1956–1958
CJ7 and Wrangler models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
These are a bolt-on application that needs no drilling. Because they provide 1 inch of lift, check driveline angles after installing.
What’s included

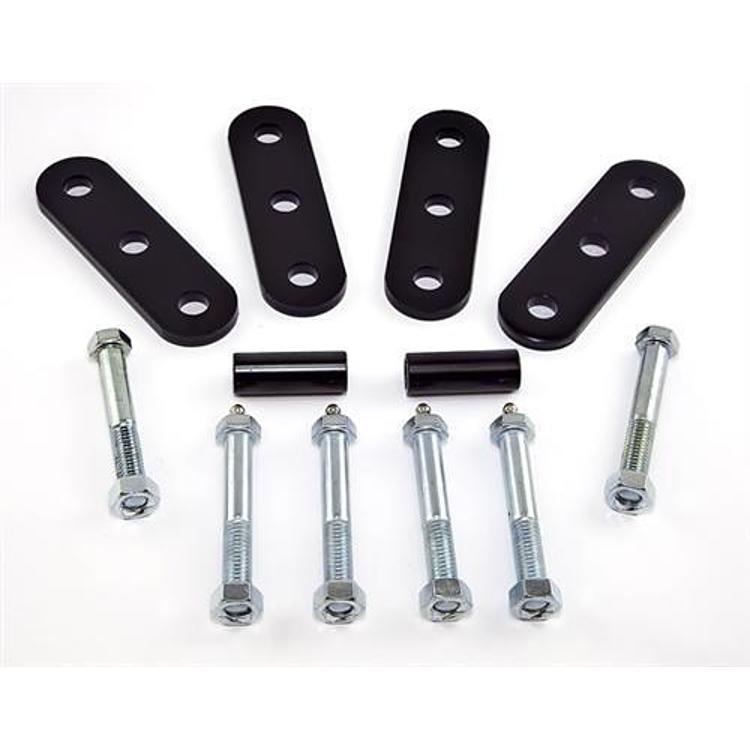

Each pair includes two shackles.
Not included: bushings.
