Overview
The Rubicon Express RE7333 is an Extreme-Duty long arm rear 3-link upgrade for the 2007 to 2018 Jeep Wrangler JK, across Rubicon, Sahara, Sport and Unlimited trims. It is built around a heavy duty axle truss, a chromoly center link and a differential support ring, and it is designed for a lift height range of 5 to 6.99 inches.
The 3-link adds articulation and control for the JK platform and improves traction by refining suspension geometry, which removes rear steer and bushing bind. It fits 9 by 3.75 to 4.75 backspacing wheels and is compatible with Extreme Duty Long Arm systems.
Key features
- Heavy duty axle truss
- Chromoly center link
- Differential support ring
- High quality hardware included
- Compatible with Extreme Duty Long Arm systems
- Lift height range 5 to 6.99 inches
Long arm geometry basics
A rear long arm 3-link setup takes over the jobs of the leaf springs or stock control arms. The long arms carry the axle fore and aft, the upper link manages pinion angle, and the axle is held in place through the truss. When these parts are matched, the axle stays square under throttle and braking, and wheel travel is less likely to bind. Because the geometry changes, pinion angle and driveshaft length should be checked by measurement after installation.
Related parts are often replaced at the same time. Rear shocks should be selected for the new axle position and travel, and brake lines and the parking brake cable may need length checks. Bushings, the track bar and the steering components are worth inspecting, since changes in rear geometry load them differently. Keep the hardware torqued and recheck it after the first few trail runs.
- Inspect bushings and bolts for cracks or looseness after each season of off-road use
- Check brake line and parking brake cable length after the axle moves
- Recheck pinion angle after any change in lift or tire size
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7333 |
| Position | Rear |
| Suspension type | Long arm |
| Rear lift method | 3-link |
| Lift height range | 5 to 6.99 inches |
| Shocks included | No |
| Wheel fitment | 9 by 3.75 to 4.75 backspacing |
Vehicle fitment
It fits the 2007 to 2018 Jeep Wrangler (JK), including Rubicon, Sahara, Sport and Unlimited trims.
The list covers only the JK, so the TJ, LJ and JL Wranglers are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upgrade is a bolt-on for Dana 44 housings and suits vehicles that already run Extreme Duty long arm components. It is designed for straightforward installation and adjustment. Check the alignment after the geometry is set.
Shocks are not included. It has a long arm suspension type, a 3-link rear lift method and a lift height range of 5 to 6.99 inches. It is intended for vehicles that already run Rubicon Express Extreme Duty Long Arm components.

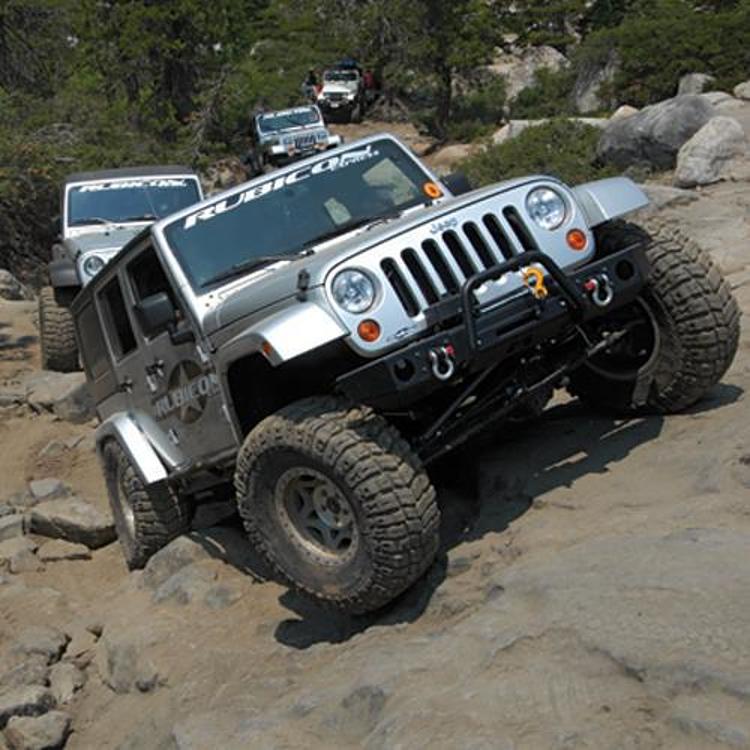

It is intended for hardcore rock crawling on the JK platform. It is made in the USA and carries the Rubicon Express Advantage lifetime warranty.
What’s included
The axle truss, chromoly center link, differential support ring and high quality hardware.
Not included: shocks.
