Rubicon Express Extreme-Duty Long Arm Suspension Upgrade Lift Kit – RE7232

Rubicon Express

Shop Jeep Wrangler LJ Long Arm Upgrade on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Extreme-Duty long arm upgrade kit for 2004–2006 Jeep Wrangler Unlimited LJ, for owners of Rubicon Express Super-Flex short arm systems
  • Chromoly front and rear lower long arms, rear upper arms, PT-Meg Super-Ride bushings
  • Lift of 5 to 6.99 inches, depending on the system being upgraded
  • Part number RE7232

Description

Overview

The Rubicon Express RE7232 is an Extreme-Duty long arm suspension upgrade for the 2004–2006 Jeep Wrangler Unlimited (LJ), including the Unlimited Rubicon. It is built for owners who already run a Rubicon Express Super-Flex short arm suspension and want to move to the long arm system. It is a direct-fit upgrade with a 5 to 6.99 inch lift range, depending on the system being upgraded.

The kit replaces the short arms with chromoly long arms. The long arm design is meant to keep the LJ close to stock on-road ride quality while adding the articulation and strength needed for extreme trail use.

Key features

  • Chromoly front and rear lower long arms
  • Rear upper arms included in the upgrade
  • PT-Meg Super-Ride bushings designed for on-road and off-road use
  • Adjustable control arms with serviceable Super-Flex joints
  • Three-piece belly pan for transfer case and transmission access
  • Rear stainless steel brake lines

Long arm upgrade planning

Moving from short arms to long arms changes the wheelbase geometry at each corner, so the vehicle should be treated as a suspension project rather than a bolt-on. Plan for an alignment and driveline check once the arms, bushings and belly pan are installed.

The joints and bushings in a long arm system carry the axle loads, so they should be inspected at every tire rotation. Serviceable joints can be greased, while play, torn boots or cracked bushings are signs that a part needs replacing before it fails on the trail.

Tire clearance and brake line length should also be reviewed after a long arm conversion. Run a slow test drive after assembly and listen for binding or clunks before taking the vehicle off road.

  • Plan an alignment after the conversion
  • Grease serviceable joints on a schedule
  • Check tire clearance at full articulation

Specifications

Brand Rubicon Express
Part number RE7232
UPC 614901441888
Suspension type Long arm
Upgrade type Extreme-Duty Long Arm upgrade
Lift height range 5 to 6.99 inches
Rear lift method Coil springs
Position Front and rear control arms
Shocks Not included
Fitment type Direct fit

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler Unlimited (LJ), including the Unlimited and Unlimited Rubicon trims.

The two-door LJ and the TJ and JK Wrangler generations are not covered by this part. The kit is an upgrade, so it needs the Rubicon Express Super-Flex short arm system already installed. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A long arm conversion changes the suspension geometry and the driveline angles, so have the front and rear alignment and the driveline angles checked after installation. The belly pan has to be fitted to clear the transfer case and transmission.

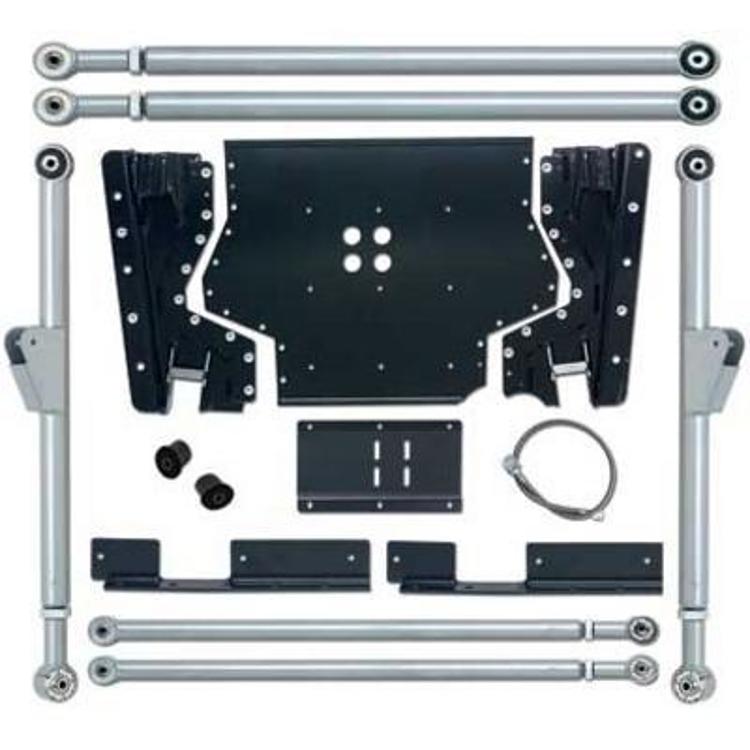

What’s included

The Extreme-Duty long arms, PT-Meg Super-Ride bushings, adjustable control arms with serviceable Super-Flex joints, the three-piece belly pan and rear stainless steel brake lines.

Not included: shock absorbers and the existing Super-Flex short arm system, which the kit upgrades.

SKU: R/ERE7232 Category:

Specification

Shipping weight 265.05 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7232 fit a 2005 Jeep Wrangler Unlimited?

Yes. It fits the 2004–2006 Jeep Wrangler Unlimited, which includes 2005, in the Unlimited and Unlimited Rubicon trims. It does not fit the two-door LJ.

Can the RE7232 be installed on a stock LJ?

No. It is an upgrade for owners who already have a Rubicon Express Super-Flex short arm suspension. The kit replaces the short arm parts with the Extreme-Duty long arm system.

Are shocks included with the RE7232?

No. Shocks are not included with the upgrade, so shocks for the long arm system have to be chosen separately.

How often should long arm joints be inspected?

Check the joints and bushings at every tire rotation or after hard off-road use. Look for play, torn boots and grease loss, and replace worn parts before they fail on the trail.
