Overview
The Dana 44 rear axle master install kit, part 54400031, is a full set of install parts for a new ring and pinion in a Dana 44 rear axle. It is for the Dana 44 rear of 2007–2018 Jeep Wrangler JK models.
The kit includes the bearings, shims, seals and compounds needed to install the gears, and the deluxe shim kit helps set the correct shim amount for the mesh.
The Dana 44 rear housing takes the same kinds of shims and bearings as the front, and the kit’s parts are matched to the rear install. Use the seal and bearing contents with the gears you have chosen, and check them against the axle before starting.
Key features
- Carrier bearings and races, and pinion bearings and races
- Deluxe shim kit for pinion depth
- Pinion seal, ring gear bolts and pinion nut
- Crush sleeve, oil baffle and slingers on select models
- Thread locking compound, marking compound, brush and gasket sealing compound
Choosing the right setup
A rear Dana 44 gear swap gives better access to the carrier and pinion whether the axle is on the bench or still in the truck. Check the carrier bearings and bores for wear or damage before installing new parts, and confirm the housing is clean. Gear choice affects the rest of the job, since the ratio determines the pinion depth setting and the backlash the shim kit has to achieve.
Because the gears and install parts are bought separately, match the gear set to the bearings and shims before starting. Think about tire size, how the truck is driven and whether the axle has a locker or limited-slip unit, since those affect what the carrier needs. Keep a log of shim thicknesses and measurements, so adjustments are easier if the contact pattern needs a change.
- Inspect carrier bores before installing bearings
- Match gear ratio to tire size and use
- Log shim and measurement changes
- Note whether the axle has a locker or limited-slip unit
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 54400031 |
| Axle location | Rear |
| Axle type | Dana 44 JK |
| Kit type | Master kit with bearings |
Vehicle fitment
It is for the Dana 44 rear axle of 2007–2018 Jeep Wrangler JK models.
Wranglers from 2018 on, such as the JL, are not covered by these years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use the deluxe shim kit to set pinion depth, then check the tooth contact with the marking compound before the rear axle is loaded.

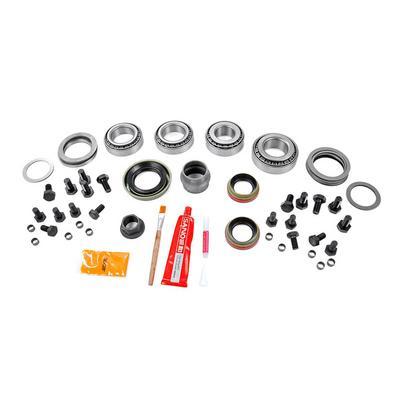

What’s included
Carrier bearings and races, pinion bearings and races, pinion seal, ring gear bolts, deluxe shim kit, pinion nut, crush sleeve (select models), oil baffle and slingers (select models), thread locking compound, marking compound, brush and gasket sealing compound.
Not included: the ring and pinion gear set.
