Alloy USA Dana 44 JK Rubicon Rear Master Ring and Pinion Installation Kit – 352052

Alloy USA

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Alloy USA 352052 Dana 44 JK Rubicon rear master ring and pinion installation kit
  • Built for 2007-2018 Jeep Wrangler JK Rubicon rear axles
  • Bearings and seals included
  • Part number 352052, UPC 70000531045

Description

Overview

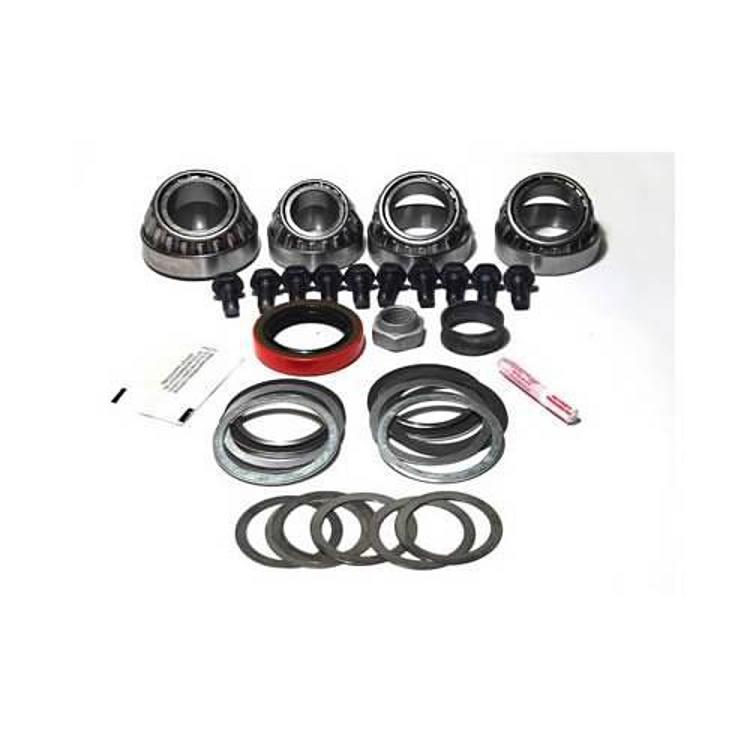

The Alloy USA 352052 is a rear master ring and pinion installation kit for the Dana 44 axle in the 2007-2018 Jeep Wrangler JK Rubicon. It packages the bearings, pinion seals, pinion shims, crush sleeve, pinion nut, ring gear bolts and marking compound for a rear differential rebuild.

It is made for the JK chassis and Rubicon rear axle, and it has a Direct Fit classification.

Key features

  • Rear master kit for Dana 44 ring and pinion installation
  • Bearings, pinion seals, shims and a crush sleeve included
  • Ring gear bolts and marking compound included
  • Rubicon rear application

Rear axle setup notes

A rear Dana 44 carries its load through the axle shafts and the carrier, so gear wear shows as whine under load, a rough coast or a change in tooth pattern. Rear work is often done after a bearing or seal failure, which means the carrier bores and pinion bearings should be checked before new gears are installed.

Ring gear bolts and pinion hardware are commonly replaced with a rebuild, since they are tightened to specific values and can stretch once used. Use thread locker where the service manual calls for it, and confirm the tooth contact pattern with marking compound before closing the housing. Keep a clean work area so debris does not enter the carrier.

  • Listen for whine under load and on coast
  • Check carrier bearing bores for wear
  • Replace stretched or corroded ring gear bolts
  • Read the tooth pattern before closing the cover
  • Keep debris out of the housing during assembly

Specifications

Brand Alloy USA
Part number 352052
UPC 70000531045
Axle type Dana 44 JK Rubicon
Axle location Rear
Fitment Direct Fit

Vehicle fitment

This kit is made for the 2007-2018 Jeep Wrangler JK Rubicon with a Rubicon rear Dana 44 axle.

It is for the 2007-2018 Jeep Wrangler JK Rubicon, not the Wrangler TJ (1997-2006), LJ (2004-2006) or JL (2018-2022). Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Ring and pinion setup controls gear mesh and bearing preload, so a specialist with the right tools is the usual choice. The ring gear and pinion gears are not part of this kit and must be matched before assembly.

What’s included

Bearings, pinion seals, shims, a crush sleeve, a pinion nut, ring gear bolts and marking compound are listed.

Not included: ring gear and pinion gears.

Specification

Shipping weight 6.00 lbs
Package dimensions 12.00 × 11.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Alloy USA 352052 fit a 2007-2018 Jeep Wrangler JK Rubicon?

Yes, it is made for the JK chassis and the Rubicon rear Dana 44 axle, which places it with the 2007-2018 Jeep Wrangler JK. Confirm your year, model and trim before ordering.

Is the 352052 for the rear axle?

Yes. This is a rear master kit, and it includes bearings, seals and the ring gear hardware, but not the gears.

Does the 352052 include ring and pinion gears?

No. It lists bearings, pinion seals, shims, a crush sleeve, a pinion nut, ring gear bolts and marking compound. The gears must be purchased separately.

Can I reuse the ring gear bolts from the old set?

It is not advised. Ring gear bolts can stretch under torque, so inspect the threads and replace any that are damaged or corroded. Using the bolts included with this kit keeps the ring gear secured as the service manual intends.
