Overview
The G2 Axle and Gear master ring and pinion installation kit, part G/235-2051ARB, is for the Dana 44 front axle of Jeep Wrangler JK models. Based on the product title and description, it fits 2007–2018 Jeep Wrangler JK models and is written for an ARB Air Locker.
A master kit gathers the install parts needed to set a new ring and pinion correctly, so you do not have to track them down one at a time. It includes the hard-to-find items that parts stores often do not stock.
Key features
- Master kit with bearings included
- Proper shim kit for setting the gear depth

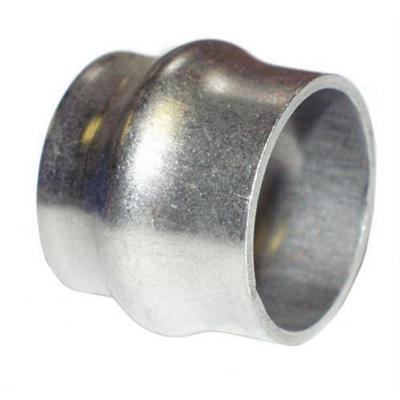

- Replacement pinion nut and crush sleeve
- Pinion seal, carrier bearings and pinion bearings
- Ring gear bolts, silicone sealer, Loctite and gear marking compound
Setting up a master kit install
Before the new gears go in, clean the carrier thoroughly and check the bearing bores for scoring. Set pinion depth with the shim kit first, then adjust carrier preload and backlash. Each step affects the others, so work through them in order rather than making one large change at a time.
Mark the ring gear teeth with the marking compound and rotate the carrier to read the contact pattern. Adjust the shims until the pattern sits centered on the teeth. A locker changes how the carrier fits in the housing, so confirm that the locker and carrier are compatible before disassembly.
- Clean the carrier and housing before assembly
- Set pinion depth before carrier preload
- Check the contact pattern on both drive and coast sides
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | G/235-2051ARB |
| Axle location | Front |
| Axle type | Dana 44 JK |
| Kit type | Master kit with bearings |
Vehicle fitment
Based on the product title and description, this kit is for the front Dana 44 axle of 2007–2018 Jeep Wrangler JK models.
Wrangler JL and other years are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The gear marking compound in this kit is used to check the tooth contact pattern, and the shim kit sets pinion depth. Check both before the front axle is put back into service.
What’s included

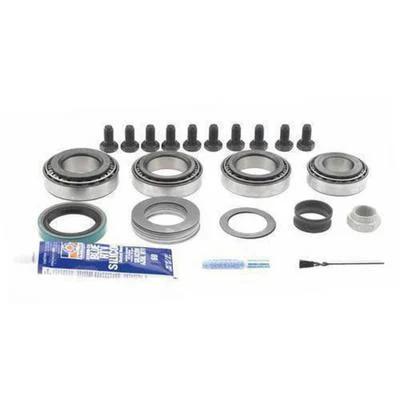

Shim kit, pinion nut, crush sleeve, pinion seal, pinion and carrier bearings, ring gear bolts, silicone sealer, Loctite and gear marking compound.
Not included: the ring and pinion gear set itself.
