Overview

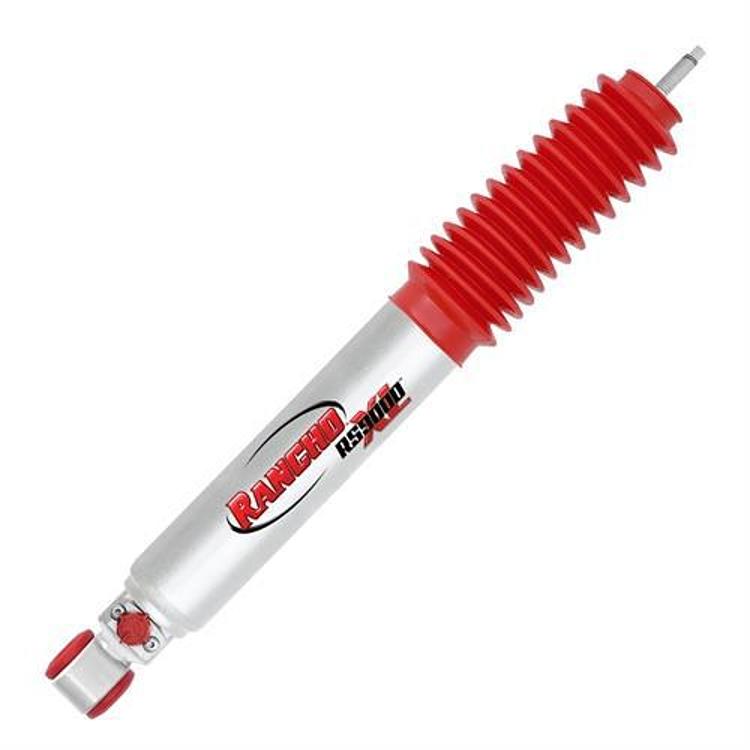

The Rancho RS999179 is a front RS9000XL Series shock absorber for 1981 to 1996 Ford Bronco and F-150 trucks, 1977 to 1979 Ford F-250 pickups, and 1987 and 1989 to 1991 Isuzu Trooper models.
This front shock has a four-inch lift rating, with the outer mount at the lower mounting position. It uses a 2.75-inch (70mm) body, an 18mm chrome rod, a nitrogen gas charge and myRide 9-position manual or remote tuning. Polyurethane bushings, a liquid metallic finish and a protective boot come with it.
Key features
- Rated for four inches of lift
- Outer mounting at the lower mounting point, as specified
- Nine damping positions by hand or remote
- 2.75-inch (70mm) body with 18mm chrome rod
- Nitrogen gas charge, polyurethane bushings and protective boot
Choosing a shock for higher lift
A taller truck changes the angle and length of the shock, so the mounting ends matter as much as the rating. Before buying, measure the distance between the eyes on the shock you are removing and compare it with the new unit. Also check the bump stops and the springs, since a lifted front end can strain parts that worked fine at stock height.
Mounting position is the detail that most often causes trouble on a lifted truck. A shock that sits in the wrong place can bind at full compression or stretch the bushings at full extension. Work through the full travel slowly after installation, and listen for contact noises before driving on rough ground.
- Measure the eye-to-eye length of the old shock
- Inspect bump stops and springs for wear
- Re-torque mounting bolts after the first drives
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999179 |
| UPC | 10039703091791 |
| Shock series | RS9000XL |
| Position | Front |
| Body diameter | 2.75 in. (70mm) |
| Rod diameter | 18mm chrome |
| Tuning | 9-position manual/remote |
| Charge | Nitrogen gas charged |
| Lift rating | 4 in. lift, outer at lower mounting |
| Finish | Liquid metallic |
| Bushings | Polyurethane, sometimes called red urethane. |
| Boot | Protective boot included |
| Warranty | Limited Lifetime Warranty |
Vehicle fitment
The manufacturer list covers Ford Bronco from 1981 to 1996 in several trims, Ford F-150 from 1981 to 1996, Ford F-250 from 1977 to 1979 in Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT and XLT trims, and Isuzu Trooper in 1987 and 1989 to 1991.
Ford trucks from 1997 onward and Isuzu Trooper models from 1988 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The four inch rating depends on the outer mount sitting at the lower mounting point, so verify the mounting position on your truck before fitting. Because the lift is larger than the other front shocks in this series, check the eye sizes against your existing shock as well.
What’s included
One RS999179 front shock absorber with its protective boot.
Not included: Confirm the mounting hardware against your old shock before starting.
