Overview

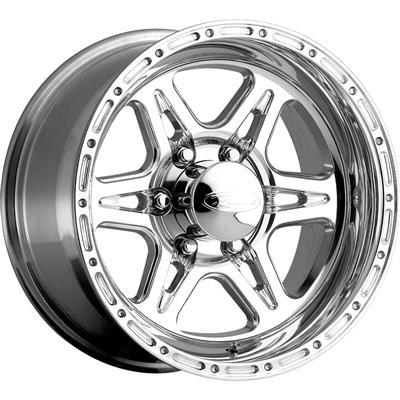

The Raceline Wheels Renegade 6 17×9 with a 6 on 5.5 bolt pattern, part number RLW886-79060, is a 17-inch polished spoke wheel in aluminum from the 886 Renegade 6 series. It measures 9 inches wide and has an offset of 0, a 108 center bore and a backspacing of 5, so the hub-fit figures are the place to start.
Raceline & Allied Wheel makes high-performance wheels, and its consumer range draws on the engineering behind its off-road racing wheels. It is a universal fit wheel, not built for one named vehicle, so the 6 on 5.5 pattern and 108 center bore must be matched to your hub.
Key features
- 17-inch diameter and 9-inch width in a spoke design
- Polished finish
- Aluminum construction
- 6 on 5.5 bolt pattern
- Offset of 0 with 5 backspacing
- 108 center bore
- Series name 886 Renegade 6
Choosing a hub-fit setup
A wheel can share a bolt pattern with a hub and still sit wrong. Center bore, offset and backspacing each change how the wheel meets the hub and where the tire lands relative to the fender and suspension. Measure your hub’s pilot diameter and the wheel’s center bore before buying, then decide whether hub-centric rings are needed to keep the wheel centered.
Test-fitting before the tire goes on is the simplest check. Mount the wheel with a lug nut torque pattern, look for contact at full steering lock, and confirm the wheel clears brake calipers. Wheels bought without a fitted tire are easy to return, so do this step early.
- Compare hub pilot size with the center bore
- Check offset against fender and suspension clearance
- Plan hub-centric rings if the bore is larger than the hub
- Torque lug nuts in a star pattern and recheck after the first drive
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW886-79060 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Offset | 0 |
| Center bore | 108 |
| Backspacing | 5 |
| Style | Spoke |
| Finish | Polished |
| Series | 886 Renegade 6 |
| Construction | Aluminum |
Vehicle fitment
No vehicle is named for this wheel. Universal fit means the wheel is not tied to one make, model or year, so check the 6 on 5.5 bolt pattern, 0 offset and 108 center bore against your hub and clearance before ordering.
A 0 offset and a 108 center bore can clear one vehicle and not another, even when the bolt pattern matches, so compare each figure rather than the diameter alone. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check that the 108 center bore suits your hub’s pilot and that the 0 offset keeps the wheel clear of calipers and suspension parts. Test fit before a tire is mounted.
What’s included
The wheel is supplied on its own. Tires, valve stems and lug nuts are not included.
