Overview

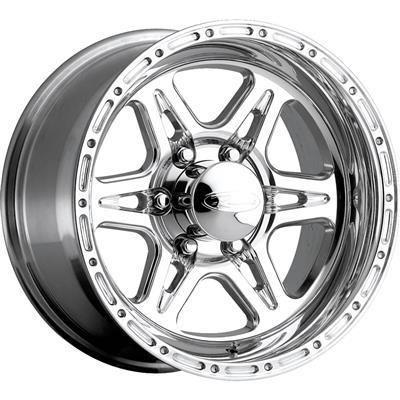

The Raceline Wheels Renegade 6 17×9 with a 6 on 135 bolt pattern, part number RLW886-79065, is a 17-inch polished aluminum spoke wheel from the 886 Renegade 6 series. It is 9 inches wide with an offset of 6, an 87 center bore and a backspacing of 5.3, so the hub fit and offset decide whether it works on a given vehicle.
The consumer line draws on engineering from off-road racing wheels. Because the design names no vehicle, check the bolt pattern, offset and center bore against your hub before ordering.
Key features
- 17-inch diameter and 9-inch width
- Spoke style with a polished finish
- Aluminum construction
- 6 on 135 bolt pattern
- Offset of 6 with 5.3 backspacing
- 87 center bore
- Part of the 886 Renegade 6 series
Clearance and fitment checks
Offset and backspacing set how far the wheel sits in the wheel well. Even with a matching bolt pattern, a change in offset can bring the wheel closer to brake calipers, suspension components or the inner fender, so measure clearance before mounting a tire.
The 87 center bore should match the hub bore. A larger hub can be fitted with hub-centric rings, while a poor fit can cause vibration at speed. Check the lug seat style as well, since it must match the wheel’s holes.
Polished finishes need gentle care. Use a mild soap and a soft cloth to avoid scratching the surface, and dry the wheel after washing to prevent water spots. Inspect the lip after rough trail use and look for cracks around the spokes.
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW886-79065 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Offset | 6 |
| Center bore | 87 |
| Backspacing | 5.3 |
| Style | Spoke |
| Finish | Polished |
| Series | 886 Renegade 6 |
| Construction | Aluminum |
Vehicle fitment
This wheel is a universal fit design, so it is not tied to one make, model or year. Measure your vehicle’s hub and clearance against the 6 on 135 bolt pattern, offset 6 and 87 center bore before ordering.
Offset and backspacing set how far the wheel sits in the wheel well, which changes brake and suspension clearance even when the bolt pattern is the same. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the 87 center bore with your hub and test fit the wheel against the brake caliper before mounting a tire. The 6 offset and 5.3 backspacing should be checked together, not separately.
What’s included
The item described is the wheel itself. Nothing beyond the wheel is described, so confirm the contents before ordering.
