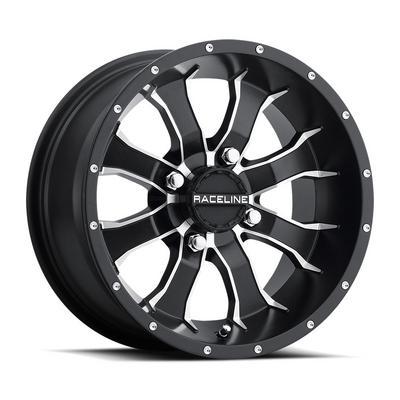

Raceline A77 Mamba Beadlock UTV Wheel, 12x7 with 4 on 110 Bolt Pattern – Black / Machined – A7727011-25

Raceline Wheels

Shop Raceline Wheels UTV Wheels on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 12 inch by 7 inch UTV wheel in black with a machined finish
  • Aluminum spoke design from the A77 Mamba series, part RLWA7727011-25
  • 4 on 110 bolt pattern with a -47 offset
  • Non-beadlock design, despite the series name

Description

Overview

The Raceline A77 Mamba UTV wheel in a 12 by 7 inch size (part number RLWA7727011-25) is an aluminum spoke wheel with a black and machined finish. It uses a 4 on 110 bolt pattern and a -47 offset, and it is built for UTVs.

This wheel is non-beadlock, so it lacks the beadlock design its series name suggests. If your use requires a beadlock wheel, choose one built with that design before ordering.

The A77 design draws on performance technology from Raceline’s off-road racing background.

Key features

  • 12 inch diameter and 7 inch width for UTV use
  • Spoke style in a black and machined finish
  • Aluminum construction
  • 4 on 110 bolt pattern with a -47 offset
  • Part of the A77 Mamba series, built as a UTV wheel.
  • Design adapted from Raceline’s off-road racing wheel technology

Choosing UTV wheel offset

Wheel offset controls how far the wheel sits inside or outside the hub, which changes the clearance to fenders, shocks, brake calipers and steering components. A UTV that runs larger tires or a wider stance needs the offset checked again, because a wheel that looks right can still rub at full travel. Compare the new wheel against the old one on the same vehicle before mounting tires.

Tire choice matters too. A taller or wider tire changes the rolling diameter and the space around the wheel, so check tire clearance at both lock positions and with the suspension compressed. After the first few rides, re-check the lug nuts, look for scuffs on the fender and inspect the wheel for cracks or bends, especially after hard landings.

  • Test clearance at full steering lock
  • Check the wheel for cracks after hard landings
  • Re-check lug nuts after the first rides

Specifications

Brand Raceline Wheels
Part number RLWA7727011-25
Series A77 Mamba
Wheel size 12×7
Diameter 12 inches
Width 7 inches
Style Spoke
Finish Black and machined
Construction Aluminum
Bolt pattern 4 on 110
Offset -47
Backspacing 2.5 inches
Backspace 2+5
Beadlock No
Wheel type UTV
Fit type Universal fit

Vehicle fitment

It is sold as a UTV wheel rather than for a named vehicle. Compare the 4 on 110 bolt pattern and -47 offset with your UTV’s hub and clearance before ordering.

Installation notes

Check the offset and backspace before mounting. A different offset changes how the wheel sits against the fender, brake and suspension parts, so a mismatch can cause rubbing or contact.

Pair the bolt pattern check with the offset and backspacing in the specification table, since a 4 on 110 pattern alone does not show how far the wheel sits.

SKU: RLWA7727011-25 Categories: , ,

Questions & Answers

Is the Raceline A77 Mamba a beadlock wheel?

No. This wheel is a non-beadlock design, even though the A77 Mamba Beadlock series name includes the word Beadlock. If you need a beadlock wheel, choose one built with that design.

What bolt pattern does the A77 Mamba 12x7 use?

It uses a 4 on 110 bolt pattern. The wheel is 12 inches in diameter and 7 inches wide, with a -47 offset and 2.5 inches of backspacing.

What is the offset and backspacing of this Raceline wheel?

The offset is -47, and the backspacing is 2.5 inches. Measure your UTV's hub and compare those figures before choosing a wheel, since offset decides how far the wheel sits in the fender.

Does a UTV wheel need a beadlock for rough trails?

Not always. Beadlock designs help hold the tire bead at low pressures, but a non-beadlock wheel can still be used when the tire and trail suit it. If you often run low pressures, choose a wheel built with that design.
