Overview

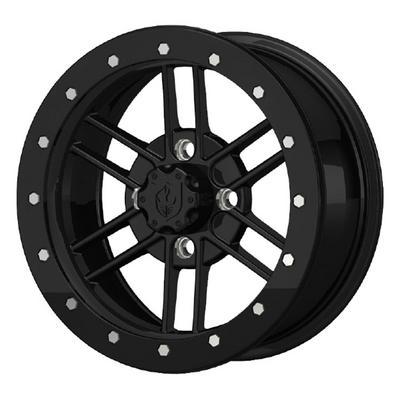

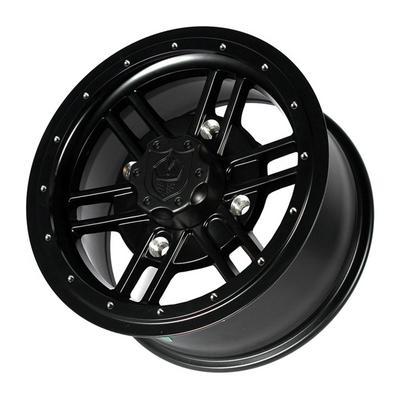

The Pro Armor Force Beadlock wheel (part number P/AP15068FOBL) is a 15×6 black UTV wheel with a 4×156, 12mm bolt pattern that Pro Armor says follows the Polaris lug pattern.
The wheel is designed to pair with Pro Armor’s Crawler tire and includes the Pro Armor center cap. Beadlock wheels are used for running low air pressure in dunes or on rocks.
Key features
- Beadlock design for low air pressure running in dunes or on rocks
- Lightweight construction
- Black finish
- Pro Armor center cap included
- 4×156 bolt pattern with 12mm, the Polaris lug pattern
Beadlock tire mounting
A beadlock wheel holds the tire bead mechanically, so it is used when lower air pressure is needed for traction. Mount the tire with the bead ring seated fully and installed on the correct side before inflating. Inflate slowly and check that the bead seats evenly around the rim, since a partial seat can leak or shift under load.
Check the beadlock bolts after the first few runs, as they can settle with heat and use. Torque them to the value in your machine’s service information rather than tightening by feel. Inspect the rim for dents or cracks after rock or dune work, and keep the valve stem clear of debris. Hard impacts can damage lightweight wheels, so a quick inspection after each trip helps catch problems early.
- Seat the bead ring fully on the correct side
- Inflate slowly and check for even bead seating
- Recheck beadlock bolts after early runs
Specifications
| Brand | Pro Armor |
|---|---|
| Part number | P/AP15068FOBL |
| Wheel size | 15×6 |
| Bolt pattern | 4×156, 12mm |
| Beadlock | Yes |
| Finish | Black |
| Wheel type | UTV |
| Style | Force Beadlock |
| Center cap | Pro Armor, included |
Vehicle fitment
The wheel fits machines with a 4×156 12mm bolt pattern, such as Polaris RZR and Ranger models and the General. Tire clearance varies by machine, so check it before ordering. Match the bolt pattern first.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The wheel with the Pro Armor center cap.
Not included: tires.
