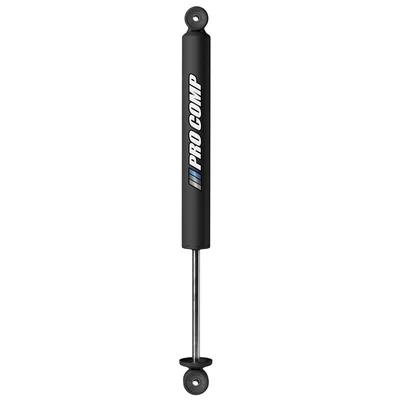

Pro Comp PRO-X Twin Tube Shock Absorber – 924506B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1979–1995 Toyota Pickup in Base, Turbo, DLX and SR5 trims
  • 24.9-inch extended length, 14.8-inch collapsed length
  • Loop upper and lower mounts
  • Twin tube design with 10-stage velocity sensitive valving
  • Nitrogen stabilized

Description

Overview

The Pro Comp 924506B is a PRO-X twin tube shock absorber for the 1979–1995 Toyota Pickup, in the Base, Base Turbo, DLX, DLX Turbo, SR5 and SR5 Turbo trims. It has a 24.9-inch extended length, a 14.8-inch collapsed length and a 10.05-inch travel length.

The PRO-X is a general-purpose twin tube shock for trucks that see mostly pavement with some off-road use. Its 10-stage velocity sensitive valving is meant to give a comfortable ride on varied road surfaces, and the 1-3/8-inch nylon banded piston with a 5/8-inch chrome hardened shaft make up the main working parts.

Both mounts are loop eyes, and the 2.0-inch body is finished in black powder coat. The shock is nitrogen stabilized, and the optional shock boot is sold apart from the shock.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Loop eyes at both ends
  • Black powder-coated finish

Older pickups and clearance

Pickups from this generation have a simple leaf spring rear and a long shock stroke, so the damper does more of the work on rough back roads than on modern trucks. A twin tube design with a nitrogen charge keeps damping steady as the oil warms, which matters on long grades. Older rubber bushings may have settled, so measure the mounted length of the existing shock before buying.

Frame rust near the mounting points is common on these trucks, and a shock mount that has been welded or repaired should be checked before the new shock goes on. Look for worn bushings, bent eyes and oil on the body during inspection. On a truck with a leaf spring rear, check the axle bracket and bolts at the same time, since they carry the same loads.

Specifications

Brand Pro Comp Suspension
Part number 924506B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Location Universal
Extended length 24.9 in
Collapsed length 14.8 in
Travel length 10.05 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Loop
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 1979–1995 Toyota Pickup in the Base, Base Turbo, DLX, DLX Turbo, SR5 and SR5 Turbo trims. It covers the full run of model years for this pickup generation, from 1979 through 1995.

Toyota Pickup models from 1996 onward and the 4Runner are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the loop eyes on both ends against the existing bracket before installation, and compare the 24.9-inch extended length with the installed suspension height. Confirm the shock clears the frame at full compression.

What’s included

The shock is a twin tube unit with loop eyes at each end. The optional boot is not included.

Not included: the optional boot.

Fitment

VehicleYearsTrims
Toyota Pickup1979–1995Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 924506B fit a 1985 Toyota Pickup?

Yes. The Toyota Pickup is covered from 1979 to 1995, so a 1985 model year falls within the covered years for this shock.

Does the 924506B fit a 1998 Toyota Pickup?

No. The shock fits pickups only through 1995, so 1996 and later models are not covered. Confirm fit for your vehicle's year, model and trim before ordering.

What are the extended and collapsed lengths of the 924506B?

The extended length is 24.9 inches and the collapsed length is 14.8 inches. The travel length is 10.05 inches, so compare these with the existing shock.

How often should shocks on an older pickup be inspected?

Check them during every tire rotation or oil change, since the work is quick and the signs of wear are easy to see. Look for leaks, cracked bushings and loose mounts, and listen for knocking over bumps.
