Overview

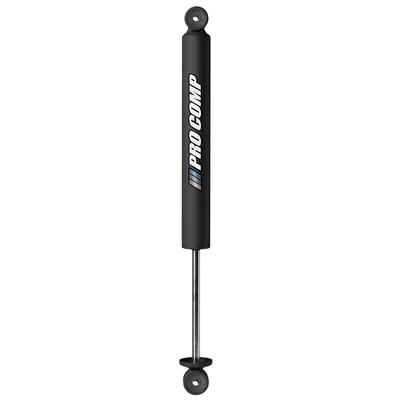

The Pro Comp 918501B is a PRO-X twin tube shock absorber with an 18.74 inch extended length, an 11.82 inch compressed length and 7.06 inch of travel. It is made for lifted trucks and is a direct fit for the 1992 to 1994 Chevrolet Blazer, Chevrolet and GMC K1500 trucks and the GMC Yukon.
The PRO-X is a general-purpose twin tube for vehicles that see mostly paved roads with occasional off-road use. It uses 10-stage velocity sensitive valving to handle varied road conditions. The 5/8 inch chrome hardened piston rod and Teflon rebound stop support a comfortable highway ride and more demanding driving.
The shock is sold individually, and Pro Comp sells the shock boot separately.
Key features
- 10-stage velocity sensitive valving
- 5/8 inch chrome hardened piston rod
- 1-3/8 inch nylon banded piston
- Teflon rebound stop
- Gas charged, with a nitrogen stabilized body
- Black powder coat finish
- 2.0 inch body diameter
Lifted trucks and shock length
A lift changes the distance between axle and frame, so the shock has to cover more extension and compression than it did at stock height. A shock that runs out of extension can strain the mounts on droop, while one that bottoms out on compression can damage the body. The extended and compressed lengths matter most when a lift is involved.
Measure the installed length of the old shock with the truck at its current ride height before ordering. Also check the brake lines, sway bar links and bump stops for clearance. Replacing shocks in pairs on the same axle keeps damping consistent, and the rear should match the front in type if not in length.
- Measure installed length before ordering
- Check brake lines and sway bar links for clearance
- Inspect bump stops for wear
- Match damping on each axle
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 918501B |
| Shock series | PRO-X |
| Shock type | Twin tube, gas charged |
| Extended length | 18.74 inch |
| Compressed length | 11.82 inch |
| Travel | 7.06 inch |
| Body diameter | 2.0 inch |
| Piston | 1-3/8 inch nylon banded |
| Piston rod | 5/8 inch chrome hardened |
| Valving | 10-stage velocity sensitive |
| Finish | Black powder coat |
Vehicle fitment
Direct fit for 1992 to 1994 Chevrolet Blazer, Chevrolet K1500 and K1500 Suburban, GMC K1500 and K1500 Suburban, and GMC Yukon.
Fit covers 1992 to 1994 only. Other model years and other Chevrolet or GMC models are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Check the 11.82 inch compressed length and 18.74 inch extended length against your mounting points before installing, since the shock travels 7.06 inch between those lengths.
What’s included
One shock absorber, sold individually.
Not included: the shock boot, which is sold separately.
