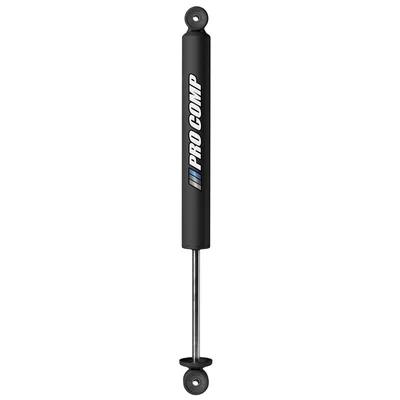

Pro Comp PRO-X Twin Tube Shock Absorber – 926506B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1986–1989 Toyota 4Runner, 1986–1995 Toyota Pickup and 1995–2004 Toyota Tacoma
  • 27.1-inch extended length, 15.9-inch collapsed length
  • 11.190-inch travel length
  • Loop upper and lower mounts
  • Twin tube design with 10-stage velocity sensitive valving

Description

Overview

The Pro Comp 926506B is a PRO-X twin tube shock absorber with a 27.1-inch extended length, a 15.9-inch collapsed length and an 11.190-inch travel length. It fits the 1986–1989 Toyota 4Runner in the DLX and SR5 trims, the 1986–1995 Toyota Pickup in several trims, and the 1995–2004 Toyota Tacoma in several trims including the Pre Runner and SR5.

The PRO-X is a general-purpose twin tube design for trucks and SUVs that are mostly driven on pavement, with occasional off-road use. Its 10-stage velocity sensitive valving is designed for a range of road conditions, and the 1-3/8-inch nylon banded piston and 5/8-inch chrome hardened shaft are the main working parts.

Both mounts are loop eyes, which keeps the attachment simple to match to an existing bracket. The body is 2.0 inches in diameter with a black powder-coated finish, and the gas charge is nitrogen stabilized. The optional shock boot is not included.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Loop eyes at both ends
  • Black powder-coated finish

Ride height and long travel

Long-travel shocks give the suspension more room to cycle, which matters on trucks that carry rough roads and occasional trails. Extra travel is only useful when the suspension can use it, so the shock’s extended length must clear the installed springs and bump stops at the top of the stroke. A shock that is too long can bind, and one that is too short can run out of travel.

Working the numbers starts with the existing shock. Measure eye to eye with the truck at normal height, then compare that figure against the extended and collapsed lengths of the new unit. Ride height changes from tires or suspension lifts also shift this relationship, so measure again after any change. Check that the brake lines and wiring have room at full compression.

  • Measure the old shock eye to eye at normal height
  • Check clearance with the bump stops at full compression
  • Recheck after changing tire size or ride height

Specifications

Brand Pro Comp Suspension
Part number 926506B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Location Universal
Extended length 27.1 in
Collapsed length 15.9 in
Travel length 11.190 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Loop
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 1986–1989 Toyota 4Runner in the DLX and SR5 trims, and the 1986–1995 Toyota Pickup in the Base, Base Turbo, DLX, SR5 and SR5 Turbo trims. It also fits the 1995–2004 Toyota Tacoma in the Base, DLX, Limited, Pre Runner, S-Runner and SR5 trims.

The 4Runner from 1990 onward, and Tacoma models from 2005 onward, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 27.1-inch extended and 15.9-inch collapsed lengths are longer than many shocks in this range, so check the installed ride height before ordering. Loop eyes at both ends should be compared with the existing bracket for your truck or SUV.

What’s included

Each end of this twin tube shock is a loop eye. The optional boot is sold on its own.

Not included: the optional boot.

Fitment

VehicleYearsTrims
Toyota 4Runner1986–1989DLX, SR5
Toyota Pickup1986–1995Base, Base Turbo, DLX, SR5, SR5 Turbo
Toyota Tacoma1995–2004Base, DLX, Limited, Pre Runner, S-Runner, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 926506B fit a 1988 Toyota 4Runner?

Yes. It fits the 1986–1989 Toyota 4Runner in the DLX and SR5 trims, so a 1988 model year is covered.

Does the 926506B fit a 2006 Toyota Tacoma?

No. The Tacoma entry on the list runs from 1995 to 2004, so 2006 models are not covered by this fitment.

What is the extended length of the 926506B?

The extended length is 27.1 inches and the collapsed length is 15.9 inches. The travel length is 11.190 inches, so compare these with your suspension before ordering.

Do I need a boot on this shock?

A boot is optional and sold separately. It helps keep dirt and grit off the shaft and seal, which can extend seal life on trail use. Decide based on how the truck is driven, and check the boot for cracks at each service.
