Overview

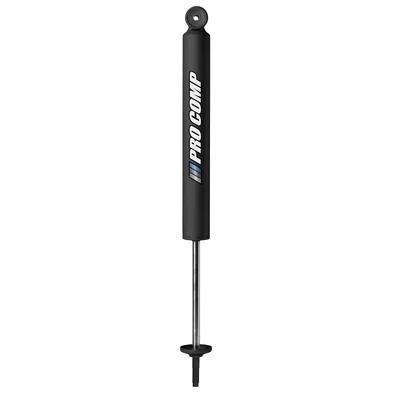

The Pro Comp PRO-X 925553B is a gas charged twin tube shock absorber with a 25.65-inch extended length and a 15.5-inch compressed length, with 10.19 inches of travel. It fits Dodge Ram 1500, 2500 and 3500 trucks from 1994 to 2008, Ford F-250 and F-350 Super Duty trucks from 1999 to 2008, and the 2014 to 2021 Ram 2500.
The shock uses a stem top mount and an eyelet bottom mount, and it fits a universal location. Its 10-stage velocity sensitive valving adjusts to a range of road conditions, giving a comfortable highway ride while handling more demanding driving.
It is designed for vehicles that see paved roads with occasional off-road use. The shock is nitrogen stabilized, has a 1-3/8 inch nylon banded piston and a 5/8 inch chrome hardened shaft, and is sold individually.
Key features
- Gas charged, nitrogen stabilized
- 10 stage velocity sensitive valving
- Twin tube design
- 1-3/8 inch nylon banded piston
- 5/8 inch chrome hardened shaft
- Teflon rebound stop
- Stem top and eyelet bottom mounts
- Black powder coat finish
Matching shocks to your use
Shock absorbers control how quickly the suspension compresses and rebounds after a bump. On a truck that carries heavy loads or tows, the damping rate has a direct effect on body control and tire contact with the road. Twin tube designs keep the working fluid in a main cylinder with a reserve chamber, which helps the shock hold steady through repeated hard use.
When choosing a replacement, compare the extended and compressed lengths with the shock being removed, and measure the mount-to-mount distance with the truck at its ride height. Mismatched lengths can bottom out the suspension or limit travel on the trail.
- Replace shocks in pairs on the same axle
- Inspect upper and lower bushings when replacing
- Check mounting hardware for wear or corrosion
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 925553B |
| Shock series | PRO-X |
| Shock type | Twin tube, gas charged |
| Location | Universal |
| Extended length | 25.65 in |
| Compressed length | 15.5 in |
| Travel length | 10.19 in |
| Body diameter | 2.0 in |
| Upper mount | Stem top |
| Lower mount | Eyelet |
| Piston | 1-3/8 in nylon banded |
| Shaft | 5/8 in chrome hardened |
| Valving | Velocity sensitive, 10 stage |
| Rebound stop | Teflon |
| Finish | Black powder coat |
| Sold as | Individually |
Vehicle fitment
It fits the 1994 to 2008 Dodge Ram 1500, 2500 and 3500, the 1999 to 2008 Ford F-250 and F-350 Super Duty, and the 2014 to 2021 Ram 2500, in the trims covered for each model.
This shock is made for the model years above. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The stem top and eyelet bottom mounts differ from each other, so check your truck’s factory mounts before ordering. Compare the 15.5 inch compressed length with your current shock, and order one shock for each position.
What’s included
One shock absorber, sold individually.
Not included: The optional shock boot, which is sold separately.
