Pro Comp Black Series 2.5 Coilover Front Shock Absorber with Reservoir (Driver Side) – ZXRR255002

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Driver side front coilover shock with external reservoir
  • Raises the front suspension 3-4 inches
  • Gas charged 2.5 inch zinc plated monotube body
  • Fits 2005–2019 Ford F-250 and F-350 Super Duty

Description

Overview

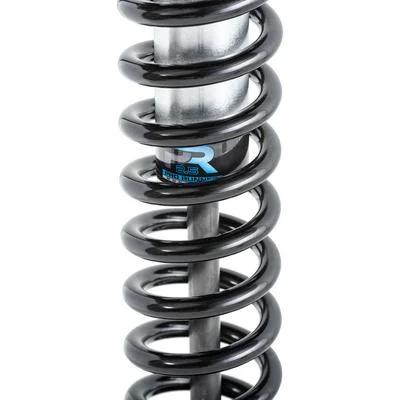

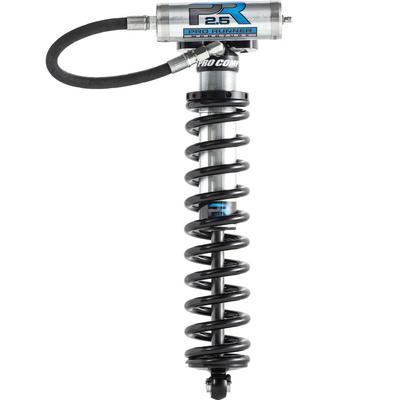

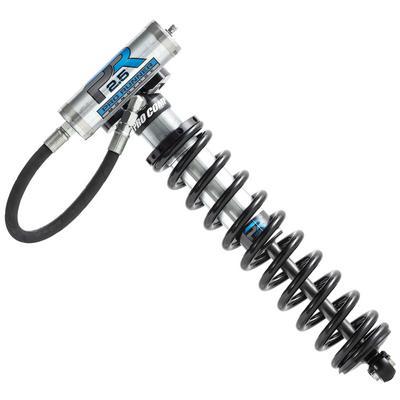

The Pro Comp Black Series 2.5 Coilover Front Shock Absorber with Reservoir, part number ZXRR255002, is a driver side front coilover with an external reservoir. It fits the 2005–2019 Ford F-250 Super Duty and F-350 Super Duty and raises the front suspension 3-4 inches.

The 2.5 inch zinc plated body adds oil capacity and allows cooler operation. Each unit is hand assembled and uses an adjustable monotube design. The nitrogen gas charge helps prevent cavitation during compression and rebound.

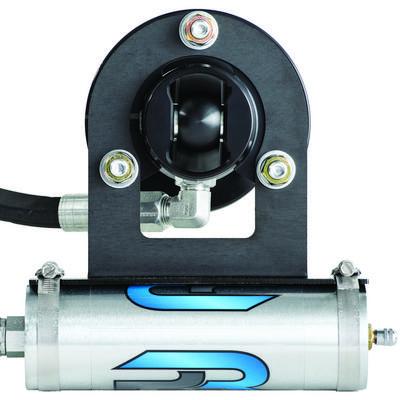

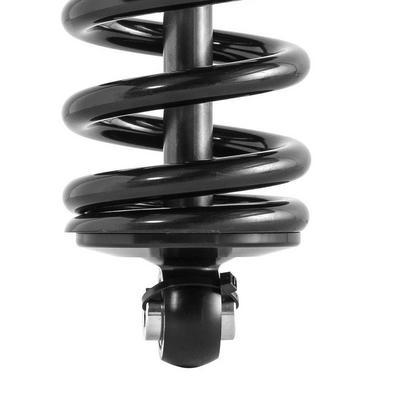

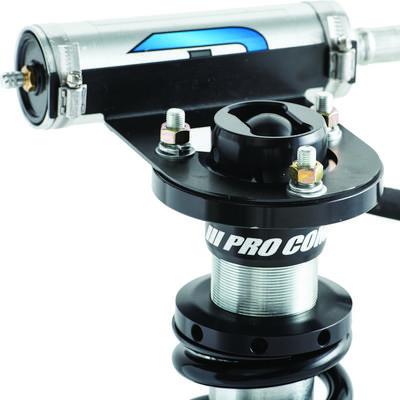

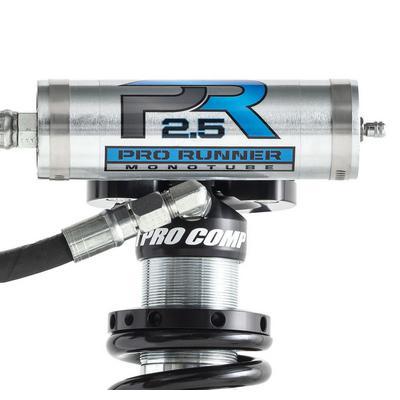

The upper and lower mounts use heavy-duty Teflon steel alloy spherical bearings, which Pro Comp says eliminate deflection. The multi-stage valving was tuned through dyno and real-world testing on the vehicle the shock is built for. The external reservoir adds fluid capacity and helps the shock shed heat.

Key features

  • Driver side front coilover with external reservoir
  • Raises the front suspension 3-4 inches
  • 2.5 inch zinc plated, clear coated monotube body
  • Nitrogen gas charged
  • Multi-stage valving tuned for the application
  • Teflon steel alloy spherical bearings at both mounts

Front coilover shock basics

A coilover shock combines the damper and spring in one unit, so the shock sets ride height as well as damping. Front coilovers therefore affect steering, braking and the angle of the front axle. External reservoirs add fluid capacity and help the shock stay cooler during long runs, which can reduce fade on rough roads or during towing.

Gas charged shocks keep the oil under pressure to limit foaming during hard use. Mounts with spherical bearings allow more movement than rubber bushings, so they may need more frequent inspection for play and wear. The driver side and passenger side should be set to the same ride height to keep the truck balanced in corners and under braking.

  • Inspect the reservoir hose for leaks
  • Check mount bearings for play
  • Match ride height on both front positions
  • Recheck alignment after the first few drives

Specifications

Brand Pro Comp Suspension
Part number ZXRR255002
Shock series 2.5 Coilover
Shock type Coilover, monotube
Location Front, driver side
Body diameter 2.5 in
Lift 3-4 inches at the front
Charge Gas charged

Vehicle fitment

Fits the 2005–2019 Ford F-250 Super Duty and 2005–2019 Ford F-350 Super Duty trucks.

The list does not include the F-150 or the F-450. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the coilover raises the front end by 3-4 inches, have the alignment checked after installation and confirm the driveline angles are within limits.

What’s included

One driver side front coilover shock with its external reservoir. A matching shock for the passenger side is a separate purchase, and both front positions should be set to the same ride height.

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2005–2019Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Limited, Platinum, XL, XLT
Ford F-350 Super Duty2005–2019Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Limited, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp ZXRR255002 fit a Ford F-250 Super Duty?

Yes, it fits 2005–2019 Ford F-250 Super Duty trucks, along with the F-350 Super Duty. Confirm the year and trim of your truck before ordering.

Is this shock for the driver side or the passenger side?

The driver side. The shock is sold for the driver side only, so a passenger side shock is a separate part, and both front positions need their own coilover to match.

How much lift does the coilover provide?

The coilover raises the front suspension 3-4 inches. Have the alignment checked after installation and confirm the driveline angles are within limits. Both front positions should be set to the same ride height.

Why does this shock have an external reservoir?

The external reservoir adds fluid capacity and helps the shock shed heat. That extra cooling capacity can help the shock resist fade during hard use on rough roads or while towing.

How do you know when a front shock needs replacing?

Look for fluid leaks on the body, a bouncy front end, uneven tire wear and damaged mounts. Replace shocks that leak or no longer control motion. Replacing both fronts together keeps ride and handling balanced.

Should both front shocks be replaced together?

Usually yes. Matching shocks on both sides keep damping and ride height even, which helps steering and braking stay predictable. A single shock with different damping can cause uneven handling.
