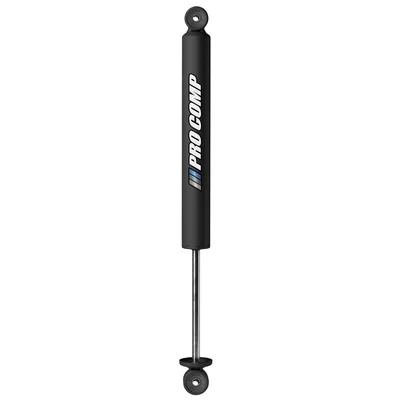

Pro Comp PRO-X Twin Tube Shock Absorber – 923504B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2004–2006 Jeep Wrangler LJ Unlimited and 1997–2006 Wrangler TJ
  • Also fits 2005–2020 Toyota Tacoma
  • 23.8-inch extended length, 14.3-inch collapsed length
  • Loop upper and lower mounts
  • Twin tube design with 10-stage velocity sensitive valving

Description

Overview

The Pro Comp 923504B is a PRO-X twin tube shock absorber with a 23.8-inch extended length and a 14.3-inch collapsed length. It fits the 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon, the 1997–2006 Wrangler TJ in several trims, and the 2005–2020 Toyota Tacoma in multiple trims including the TRD Off-Road and TRD Pro.

The PRO-X is built as a general-purpose twin tube shock for vehicles used mostly on pavement with occasional off-road driving. It has 10-stage velocity sensitive valving, a 1-3/8-inch nylon banded piston and a 5/8-inch chrome hardened shaft, with a travel length listed at 9.48 inches.

Both mounts are loop eyes, and the body is 2.0 inches in diameter with a black powder-coated finish. The gas charge is nitrogen stabilized, and the optional boot is not included.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Loop eyes at both ends
  • Black powder-coated finish

Long travel and clearance

A longer shock adds travel for articulation, which helps tires stay in contact on uneven trails, but the extra length has to fit the suspension at both ends of its stroke. Before choosing a long unit, measure the distance between mounts with the suspension at ride height and again with the wheels hanging. Clearance against the frame, crossmembers and tire at full compression is often the limiting factor.

Tacomas and Wranglers with lift kits often need longer shocks, and bump stops may be worth replacing to cushion the end of the stroke. Look for worn bushings in the loop eyes, rust on the shock body, and a rebound that feels slow or springy. Replacing the loop bushings with the shock avoids a loose fit that can knock on rough trails.

Specifications

Brand Pro Comp Suspension
Part number 923504B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Location Universal
Extended length 23.8 in
Collapsed length 14.3 in
Travel length 9.48 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Loop
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler LJ in the Unlimited and Unlimited Rubicon trims, the 1997–2006 Wrangler TJ in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims, and the 2005–2020 Toyota Tacoma in the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport and X-Runner trims.

The Wrangler JK generation and the Tacoma years before 2005 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the 23.8-inch extended and 14.3-inch collapsed lengths against your suspension height. The loop upper and lower mounts can be matched to the existing hardware, so confirm the mount fits your Jeep or Tacoma before driving.

What’s included

This twin tube shock uses loop eyes at each end. The shock boot is not included in this item.

Not included: the optional shock boot.

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X
Toyota Tacoma2005–2020Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, X-Runner

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 923504B fit a 2005 Toyota Tacoma?

Yes. It fits the 2005–2020 Toyota Tacoma in several trims, and a 2005 model year falls within those years. Confirm fit for your vehicle's year, model and trim before ordering.

Does the 923504B fit a Jeep Wrangler JK?

No. The Wrangler JK is not covered, since the shock fits the LJ Unlimited from 2004 to 2006 and the TJ from 1997 to 2006. Confirm fit for your vehicle's year, model and trim before ordering.

What is the travel length of the 923504B?

The travel length is 9.48 inches. The extended length is 23.8 inches and the collapsed length is 14.3 inches. Compare these with your suspension before ordering.

Why do the loop bushings wear out?

Loop eyes move on a pin or bolt with every bump, so the rubber or polymer bushing wears over time and lets the eye knock. Inspect the bushings each time the shock is off the vehicle and replace them with the shock when they show cracks or play.
