Overview

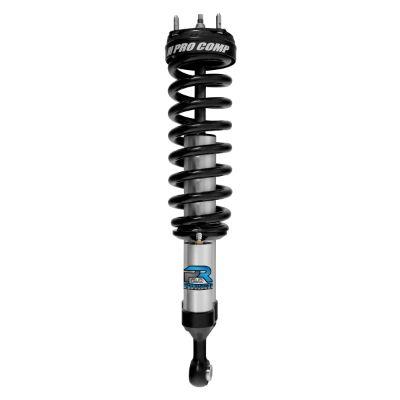

The Pro Comp Suspension ZXR255001 is the passenger side front coilover shock with a remote reservoir for the 2007 to 2021 Toyota Tundra. It matches the driver side Pro Runner unit (ZXR255000) and uses a 2.5-inch monotube body.
This nitrogen gas charged shock uses an external reservoir that adds fluid capacity and improves heat dissipation.
Key features
- Passenger side (front right) position
- 2.5-inch monotube body

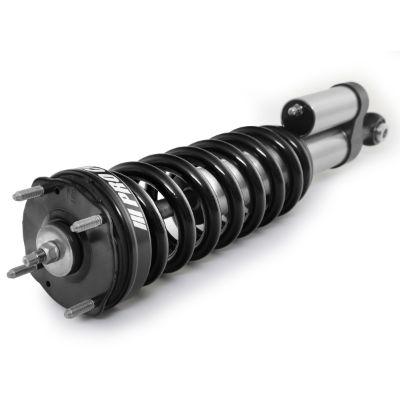

- External remote reservoir
- Nitrogen gas charged
- Multi-stage valving tuned for the vehicle
Pairing and matching front shocks
Front shocks work as a pair, so matching the damping on both sides keeps the truck balanced under braking and in corners. A passenger side unit that is worn while the driver side is new can change how the front end rebounds, even when both look fine from the outside. Comparing the two shocks side by side, with the same mount and reservoir orientation, makes it easier to spot a difference before the truck is on the road.
Remote reservoir shocks need a little more planning than standard units. Hose routing, bracket placement and clearance from the steering knuckle all affect how the shock behaves at full droop and full lock. Cycle the steering with the shock in place and watch the line, since a line that rubs will wear through over time.
- Confirm the side matches the mount before tightening
- Route the reservoir line away from heat sources
- Recheck clearance after the first alignment
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | ZXR255001 |
| Shock series | Pro Runner |
| Body diameter | 2.5 in |
| Shock type | Coilover, monotube with reservoir |
| Position | Front right (passenger side) |
| Charge | Gas charged |
Vehicle fitment
It fits the 2007 to 2021 Toyota Tundra in several trims, including Base, SR5, Limited and TRD Pro.
It does not fit other Toyota trucks. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Because the reservoir is remote, plan the mounting position and hose routing before the shock is installed, and keep the line away from the tire and steering linkage through full travel. Check that the shock is on the passenger side before final assembly, since the driver side unit is a separate part.
Use the driver side part, ZXR255000, on the other side rather than this unit, because the two shocks are tuned for their own sides of the vehicle.
The shock’s external reservoir needs a clear hose route and mounting point, which should be confirmed on the truck before the front wheel is refitted. Confirm the shock body and reservoir do not touch the steering knuckle or the inner fender at full droop and full steering lock.
What’s included
One passenger side front coilover shock with remote reservoir under part number ZXR255001.
