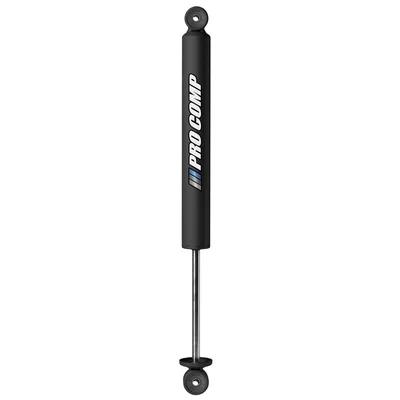

Pro Comp PRO-X Twin Tube Shock Absorber – 934008B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • PRO-X twin tube shock, 34-inch extended length
  • Fits 1999–2016 Ford F-250 and F-350 Super Duty
  • 10-stage velocity sensitive valving
  • Nitrogen stabilized, gas charged
  • Part number 934008B

Description

Overview

The Pro Comp 934008B is a PRO-X twin tube shock absorber for the 1999–2016 Ford F-250 and F-350 Super Duty, with a 34-inch extended length for lifted trucks.

The PRO-X is a general-purpose twin tube design for mostly paved roads with occasional off-road use. It is nitrogen stabilized and gas charged, with 10-stage velocity sensitive valving and a Teflon rebound stop.

The 5/8-inch chrome hardened piston rod and the Teflon rebound stop are described by Pro Comp as giving a comfortable highway ride and the ability to handle demanding driving conditions. Each unit is one shock, and the shock boot is optional.

Key features

  • 10-stage velocity sensitive valving
  • 5/8-inch chrome hardened shaft
  • 1-3/8-inch nylon banded piston
  • Nitrogen stabilized, gas charged twin tube design
  • Teflon rebound stop
  • Eyelet mounts at the top and bottom, black powder coat finish

Paved roads and occasional trail use

A general-purpose twin tube shock balances comfort on pavement with control on loose surfaces. On a truck that sees mostly highway miles, the valving determines how firmly the body rebounds after a joint or a pothole. Velocity sensitive valving changes resistance with shock speed, so small bumps feel softer while large hits stay controlled.

Eyelet mounts at both ends are common on Super Duty trucks, and they rely on bushings that can wear over time. Inspect the eyelet bushings for splitting or play, and check the hardware torque after the first few drives on a new unit. Keep the rod clean, since dirt on the chrome shaft can cut the seal.

  • Check eyelet bushings for play
  • Recheck hardware after first drives
  • Keep the rod clean

Specifications

Brand Pro Comp Suspension
Part number 934008B
Shock series PRO-X
Shock type Twin tube, gas charged
Extended length 34 inches
Compressed length 19.4 inches
Travel length 14.05 inches
Body diameter 2.0 inches
Piston 1-3/8-inch nylon banded
Shaft 5/8-inch chrome hardened
Valving 10-stage velocity sensitive
Top and bottom mounts Eyelet
Finish Black powder coat
Quantity One shock per unit

Vehicle fitment

It fits the 1999–2016 Ford F-250 Super Duty and the 1999–2016 Ford F-350 Super Duty.

It does not fit other Ford trucks or Super Duty models outside those years. Verify the year, model and trim against your truck before buying.

Installation notes

Compare the 34-inch extended and 19.4-inch compressed lengths with the mounting points on your truck before installing, since the shock’s travel depends on where it mounts. Both ends use eyelets, so the hardware at each mounting point needs to fit an eyelet. Measure your truck’s mount points before ordering, since the shock is listed at a 2.0-inch body diameter.

What’s included

One twin tube shock per unit.

Not included: The optional shock boot, which is available separately.

Fitment

VehicleYearsTrims
Ford F-250 Super Duty1999–2016Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT
Ford F-350 Super Duty1999–2016Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp 934008B fit a 2010 Ford F-250 Super Duty?

Yes. It fits the 1999–2016 Ford F-250 Super Duty, which includes 2010. The F-350 Super Duty fits the same years, but other Ford trucks do not.

What lengths does the Pro Comp 934008B measure?

It measures 34 inches extended and 19.4 inches compressed, with 14.05 inches of travel. The body is 2.0 inches in diameter, and both mounts are eyelets.

Does the Pro Comp 934008B include a shock boot?

No. The optional shock boot is not included and is sold separately. The PRO-X is designed for mostly paved roads with occasional off-road use.

Does a shock boot help?

It can. A boot keeps grit and water off the exposed piston rod, which helps protect the seal. Sold separately, it is an optional add-on rather than part of the shock, so decide based on how dusty or wet your usual driving is.
