Overview

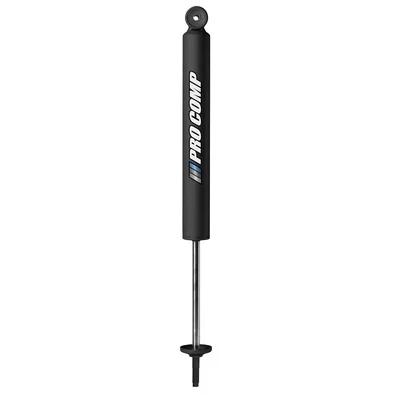

The Pro Comp PRO-X EXP924510B is a gas charged twin tube shock with a 2.0 inch body and 10.19 inches of travel, sold individually. Its 24.7 inch extended length suits trucks and SUVs that are lifted or run larger tires.
It covers 1966 to 1996 Ford Bronco models, the Bronco II from 1984 to 1990, the Bronco Sport from 1975 to 1977, Ford F-150 pickups from 1975 to 1996, the F-150 Lightning from 1993 to 1995, the Jeep Wrangler YJ from 1987 to 1995, and 2007 to 2021 Toyota Tundra models. It is a general-purpose twin tube shock for mostly paved roads with occasional off-road use.
Key features
- Gas charged, nitrogen stabilized twin tube body
- 10-stage velocity-sensitive valving for road and off-road conditions
- 1-3/8 inch nylon banded piston
- 5/8 inch chrome hardened piston rod
- Teflon rebound stop for a comfortable highway ride
- Black powder coat finish
Towing and trail loads
A shock working on a lifted or larger-tire truck moves more, so heat and wear build faster on long grades and rough trails. Gas charged twin tube shocks keep damping steady under these conditions, but the bushings, mounts and boots still need regular attention. Look at the mounts first when the truck feels loose.
Towing changes the load on the rear suspension and can shorten shock life. Stay within the truck’s rated towing and payload limits, and check that the shock’s extended length matches the ride height so the piston is not pushed past its travel. If the truck settles or bottoms out, inspect the springs and bump stops before blaming the shock.
- Inspect the stem and lower mount for cracks
- Check bushings after rough trail runs
- Keep tire pressures matched to the load
- Confirm rear ride height after any change in tires
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXP924510B |
| Shock series | PRO-X |
| Shock type | Twin tube, gas charged with nitrogen |
| Extended length | 24.7 in |
| Collapsed length | 14.5 in |
| Travel length | 10.19 in |
| Body diameter | 2.0 in |
| Upper mount | Stem |
| Lower mount | Loop in the feature list; eyelet in the specification sheet |
| Piston | 1-3/8 inch nylon banded |
| Piston rod | 5/8 inch chrome hardened |
| Valving | 10-stage velocity sensitive |
| Location | Universal |
| Finish | Black powder coat |
Vehicle fitment
It fits 1966–1996 Ford Bronco, 1984–1990 Ford Bronco II, 1975–1977 Ford Bronco Sport, 1975–1996 Ford F-150, 1993–1995 Ford F-150 Lightning, 1987–1995 Jeep Wrangler (YJ), and 2007–2021 Toyota Tundra models.
The list does not include Jeep Wrangler TJ or later models, Ford F-150 pickups from 1997 on, or Chevrolet and GMC trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lower mount is an eyelet and the upper mount is a stem. Compare the lower mount with your existing shock hardware before installing, and check that the 24.7 inch extended length matches the ride height of your lifted suspension.
What’s included
One Pro Comp PRO-X shock absorber, sold individually.
Not included: the optional shock boot, which is sold separately.
