Poison Spyder BFH II Rear Crossmember – 17-17-010

Poison Spyder Customs

Shop Jeep Wrangler JK Frame Crossmember on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Heavy-duty rear crossmember for the 2007 to 2016 Jeep Wrangler JK, 2 and 4 door
  • 3/16 inch CNC laser-cut and brake-formed steel plate
  • Built for the BFH II Rear Bumper, or usable alone as a minimal rear bumper
  • Requires cutting the stock frame rails and welding; ships bare steel to paint

Description

Overview

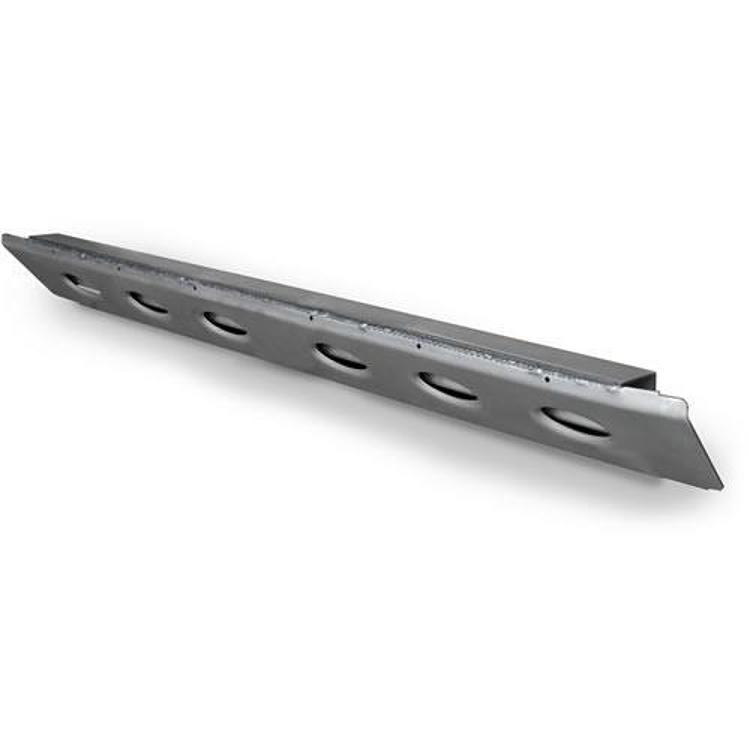

The Poison Spyder BFH II Rear Crossmember (part number 17-17-010) is a replacement rear crossmember for the 2007 to 2016 Jeep Wrangler JK, in two-door and four-door models. It is cut from 3/16 inch steel plate and brake-formed to fit, and it replaces the stock rear crossmember when the frame rails are trimmed for maximum ground clearance and departure angle.

The crossmember is made to work with the Poison Spyder BFH II Rear Bumper, which fits over it like a glove. Used on its own, it works as an ultra-minimalist high-clearance rear bumper, and the dimpled lightening holes give it a finished look. This part number has no integrated hitch receiver, so it is used with the JK BFH II Rear Bumper – Tabs or the JK BFH II Rear Bumper – Tabs – Lights. A version with a hitch receiver, part 17-17-030, is sold separately.

Key features

  • 3/16 inch steel plate, CNC laser cut and brake formed to fit
  • Replaces the stock rear crossmember and strengthens the rear frame
  • Dimpled lightening holes remove weight
  • Works with the BFH II Rear Bumper or on its own
  • No integrated hitch receiver on this part number
  • Laser-cut steel template included to guide the frame cuts

Choosing a crossmember setup

A rear crossmember carries the rear frame and bumper loads, so replacing it is a structural job rather than a surface upgrade. Steel plate versions are heavier than the factory piece but give the rear frame a stiffer anchor point for trail use. The crossmember also sets the rear departure angle once the frame is trimmed, so the cut location matters.

Decide on the bumper and hitch arrangement before cutting anything. Pairing the crossmember with a matching bumper keeps the load paths the way the design intends. If a hitch will be needed later, weigh that now rather than adding one afterward. Bare steel needs paint or a rust-inhibiting coat soon after welding, and welded seams should be cleaned and primed before finishing.

  • Mark and check cut lines before the first cut
  • Grind and prime welds before painting
  • Confirm rear driveline clearance after the frame cut
  • Plan for spare tire and tail light wiring

Specifications

Brand Poison Spyder Customs
Part number 17-17-010
UPC 614901750775
Type Rear frame crossmember, replacement
Material 3/16 inch steel plate
Hitch receiver None on this part number
Finish Bare steel, to be painted after installation
Installation type Cutting and welding required

Vehicle fitment

It fits the 2007 to 2016 Jeep Wrangler JK in two-door and four-door models, in several trims, including the Rubicon, Sahara, Sport and Unlimited versions.

Other generations are not in the manufacturer list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires cutting the stock frame rails and the bumper mounts, then welding the new crossmember in place. Read the installation instructions and the frame modifications before buying, since the cuts are permanent. The laser-cut steel template is provided to help make the cuts accurately. The crossmember ships bare steel and has to be painted after it is welded in.

What’s included

The 3/16 inch steel BFH II Rear Crossmember and a laser-cut steel template for the frame cuts.

Not included: the BFH II Rear Bumper, which the crossmember is designed to work with. The hitch-receiver version of the crossmember is part 17-17-030.

SKU: PSC17-17-010 Category:

Specification

Shipping weight 26.43 lbs
Package dimensions 41.00 × 14.00 × 9.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201670th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the BFH II Rear Crossmember fit a Jeep Wrangler JK?

Yes. It fits the 2007 to 2016 Jeep Wrangler JK in both two-door and four-door models. It replaces the stock rear crossmember.

Does this crossmember include a hitch receiver?

No. Part number 17-17-010 has no integrated hitch receiver. Poison Spyder sells a version with a hitch receiver as part number 17-17-030.

Can the crossmember be used without a rear bumper?

Yes. It can be run alone as an ultra-minimalist, high-clearance rear bumper, though it is designed to be used with the BFH II Rear Bumper.

Do rear brake lines need checking after a crossmember swap?

Yes. Frame cuts and welding can move or stress the rear brake and fuel lines, so inspect them after the work. Check the spare tire carrier and wiring as well, since both can shift when the rear structure changes.
