Omix-ADA Dana 30 Reverse Master Ring and Pinion Installation Kit – 16501.02

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 30 reverse master ring and pinion installation kit
  • Front axle, direct fit for 1984–1991 Cherokee XJ and 1987–1995 Wrangler YJ
  • Includes pinion and carrier bearings, seal and shims
  • Part number 16501.02

Description

Overview

The Omix-ADA 16501.02 is a Dana 30 reverse master ring and pinion installation kit for the front axle of Jeep Cherokee and Wrangler models. It is made for a Dana 30 disconnect style axle with a high pinion, reverse cut design. It is a direct fit for the 1984–1991 Jeep Cherokee (XJ) and 1987–1995 Jeep Wrangler (YJ).

Omix-ADA’s kit includes the parts needed to rebuild a Jeep differential: replacement pinion nut, crush sleeve, pinion seal, pinion bearings, carrier bearings, ring gear bolts, silicone sealer, Loctite, a master shim kit and gear marking compound. The parts are designed to meet or exceed factory requirements. The bearings make it a master kit rather than a minor kit.

Key features

  • Master installation kit with pinion and carrier bearings
  • For the Dana 30 disconnect style front axle
  • High pinion, reverse cut axle design
  • Replacement pinion nut, crush sleeve and pinion seal
  • Master shim kit and gear marking compound
  • Ring gear bolts, silicone sealer and Loctite

Setting up a master rebuild

A master rebuild covers the pinion and carrier bearings, so the gears are only one part of the job. Pinion depth and backlash have to be set before the carrier goes back in, and the crush sleeve is tightened to set bearing preload. Work in small steps, check each measurement against the previous one, and keep a record so you can return to the same settings if a shim is changed.

The gear marking compound shows the contact pattern between the ring and pinion, and a poor pattern usually means the depth or backlash needs adjusting. Ring gear bolts should be tightened in a star pattern with the threads cleaned before applying Loctite. Because the gear set is not part of this kit, check the existing gears for chipping or wear before reusing them.

Specifications

Brand Omix-Ada
Part number 16501.02
UPC 804314070403
Product type Master ring and pinion installation kit
Kit class Master kit with bearings
Axle manufacturer Dana
Axle type Dana 30 reverse (disconnect style, high pinion, reverse cut)
Axle location Front
Fit type Direct fit
Kit contents Pinion nut, crush sleeve, pinion seal, pinion bearings, carrier bearings, ring gear bolts, silicone sealer, Loctite, master shim kit, gear marking compound

Vehicle fitment

The 16501.02 fits the 1984–1991 Jeep Cherokee (XJ) and the 1987–1995 Jeep Wrangler (YJ). It is a front axle kit for the reverse cut Dana 30.

The 16501.02 does not cover the 1992–2001 Cherokee XJ, the Wrangler TJ, or any Dana 30 that is not a reverse cut design. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A master kit rebuild means pulling the differential apart, replacing both the pinion and carrier bearings, and setting pinion depth and backlash with the master shim kit. The crush sleeve sets pinion preload, and the marking compound checks the contact pattern. Gears are not part of this kit, and gear setup is usually done by a trained installer.

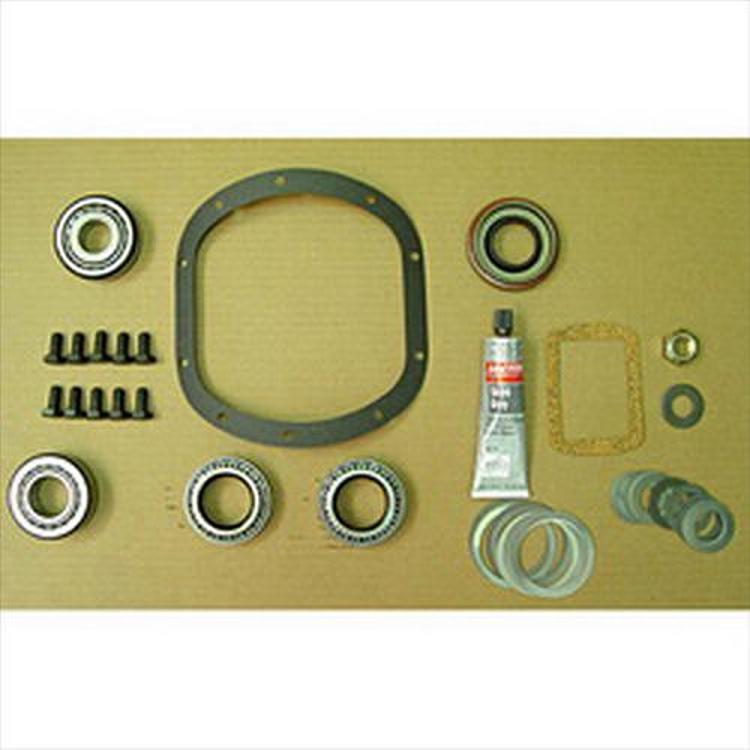

What’s included

  • Replacement pinion nut
  • Crush sleeve
  • Pinion seal
  • Pinion bearings
  • Carrier bearings
  • Ring gear bolts
  • Silicone sealer
  • Loctite
  • Master shim kit
  • Gear marking compound

Not included: the ring and pinion gear set.

SKU: OAI16501.02 Category:

Specification

Shipping weight 6.00 lbs
Package dimensions 7.00 × 7.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–1991Base, Briarwood, Chief, Laredo, Limited, Pioneer, Sport
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What comes in the Omix-ADA 16501.02 kit?

Omix-ADA includes a replacement pinion nut, crush sleeve, pinion seal, pinion bearings, carrier bearings, ring gear bolts, silicone sealer, Loctite, a master shim kit and gear marking compound.

Which Jeeps does the 16501.02 fit?

It fits the 1984–1991 Jeep Cherokee (XJ) and the 1987–1995 Jeep Wrangler (YJ), for a front Dana 30 reverse axle. Confirm your axle before ordering.

Does the 16501.02 include bearings?

Yes. It is a master kit with bearings, including pinion bearings and carrier bearings, along with the seal, shims and hardware. It does not include a ring and pinion gear set.

Do I need to replace the carrier bearings along with the pinion bearings?

Yes, in a master rebuild both pairs are replaced, since the old bearings have already worn to the axle's running position. Replacing only one pair can leave the setup unstable. Check the bearing races for pitting before installing new bearings, and use the seal and shims included in the kit.
