G2 Ford 8 Inch Master Ring and Pinion Installation Kit – 35-2039

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Master ring and pinion installation kit for Ford 8 inch rear axles
  • Part number 35-2039 from G2 Axle and Gear
  • Includes shim kit, pinion nut, crush sleeve, bearings and seals
  • Marked universal fit; confirm axle size before ordering

Description

Overview

The G2 Axle and Gear 35-2039 is a master ring and pinion installation kit for the Ford 8 inch rear axle. It bundles the install parts a gear change usually needs, including a shim kit, a replacement pinion nut, a crush sleeve, pinion and carrier bearings, and sealing and locking compounds.

The kit is installation hardware rather than a gear set. It is made for Ford axles, and the 8 inch axle size is the main match point to check.

Key features

  • Master kit with bearings for a Ford 8 inch rear axle
  • Proper shim kit for pinion and carrier setup

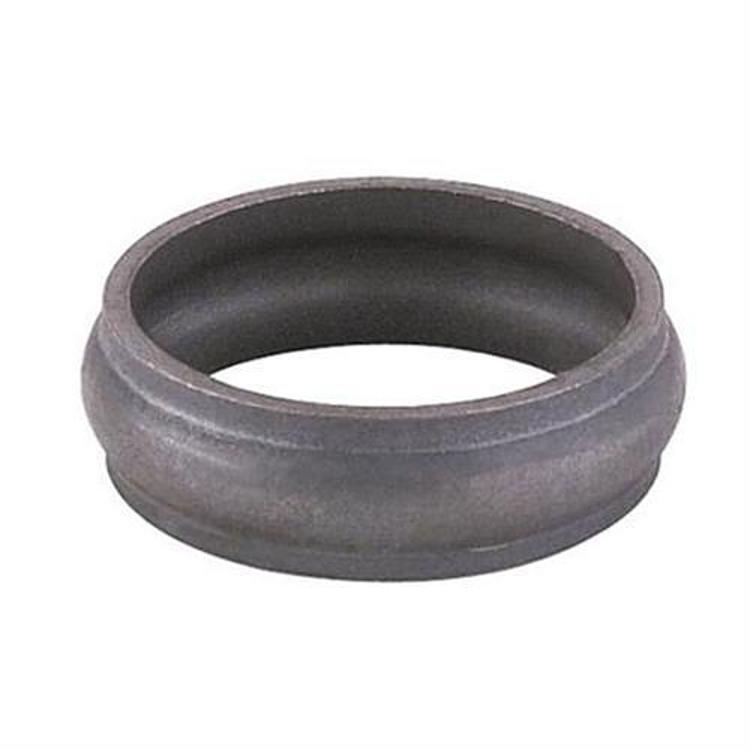

  • Replacement pinion nut and crush sleeve
  • Pinion seal, pinion bearings and carrier bearings
  • Ring gear bolts, silicone sealer, Loctite and gear marking compound

Ford 8 inch setup considerations

The axle size is the first thing to confirm before any gears are bought, because the kit and gear set both have to match the housing. Measure the housing, check the ring gear bolt pattern and inspect the carrier bearing bores before the job starts. Matching these details prevents a mismatched gear set from reaching the bench.

During the rebuild, pinion depth, carrier preload and backlash all depend on each other. Gear marking compound shows the tooth contact, and a break-in period after assembly lets the teeth seat. Inspect the pinion yoke and seal surface for grooves before installing the new seal, since a damaged yoke can leak even with a new seal.

  • Confirm axle size before ordering gears
  • Inspect the carrier bearing bores for wear
  • Check the pinion yoke surface for grooves

Specifications

Brand G2 Axle and Gear
Part number 35-2039
UPC 631410095883
Axle manufacturer Ford
Axle type Ford 8 Inches
Axle location Rear
Kit type Master kit with bearings

Vehicle fitment

Axle size decides fit, and no model years are named for this kit. Check your axle size before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pinion depth, carrier preload and backlash all need setting, and gear marking compound shows whether tooth contact is correct. A professional should handle gear setup and break-in on a Ford 8 inch rear.

What’s included

The kit includes a shim kit, replacement pinion nut, crush sleeve, pinion seal, pinion bearings, carrier bearings, ring gear bolts, silicone sealer, Loctite and gear marking compound.

Not included: A ring and pinion gear set is not included with this kit.

SKU: G/235-2039 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Questions & Answers

Is the G2 35-2039 a ring and pinion gear set or an installation kit?

It is a master installation kit, not a gear set. It supplies shims, a pinion nut, crush sleeve, pinion and carrier bearings, seals and compounds for installing ring and pinion gears on a Ford 8 inch rear axle. Gear ratios are not among its contents.

Does this kit fit a Ford 8 inch rear axle?

The kit is sized for the Ford 8 inch rear axle, and it is sold as universal fit. Confirm your axle size and vehicle model year before you order.

What are the part number and UPC for G2 35-2039?

Part number 35-2039 and UPC 631410095883 identify this G2 Axle and Gear master installation kit. Use both identifiers when matching it to your parts list before ordering.

Can a used Ford 8 inch gear set be reused in a rebuild?

Used gears can be reused only if the teeth and bearing surfaces show no pitting or unusual wear. Even then, set pinion depth and preload fresh with new shims, since the old setup rarely matches a rebuilt carrier.
