Overview

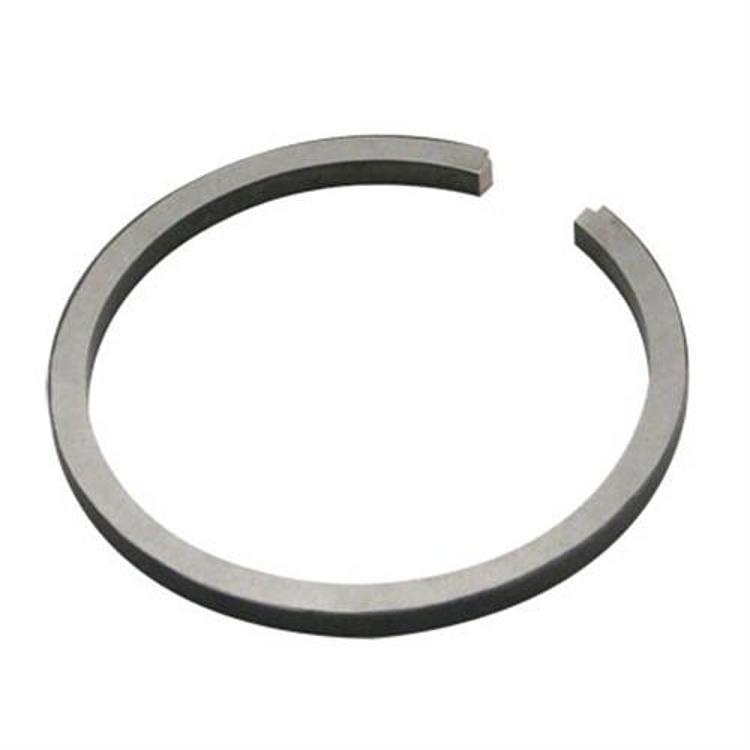

The Jeep 5072460AA is a factory replacement output shaft bearing snap ring for Jeep transfer cases. It fits the NP241, NP242, NP247, NP249, NV241 and NV241OR transfer cases.
Because the snap ring is matched by transfer case model rather than by vehicle, identify the transfer case model before choosing this part. It is a direct fit for the transfer cases named above.
Key features
- Factory replacement Jeep part
- Output shaft bearing snap ring for transfer cases
- Fits NP241, NP242, NP247, NP249, NV241 and NV241OR transfer cases
- Part number 5072460AA with UPC 700007618221
Handling a snap ring safely
Snap rings hold the bearing against its seat, so a properly seated ring keeps the shaft from moving out of position under load. A bent or distorted ring loses clamping force and may allow the bearing to shift. Use the correct snap ring pliers and wear eye protection, since rings can spring free during removal.
Because the ring comes off during bearing service, inspect the bearing and output shaft at the same time. Look for play, rough rotation, or scoring on the shaft. Gaskets and the output seal are often replaced in the same job because the case is already open.
- Replace the ring rather than reusing a stretched one
- Check the groove for wear or burrs
- Seat the ring fully in its groove
Specifications
| Brand | Jeep |
|---|---|
| Part number | 5072460AA |
| UPC | 700007618221 |
| Type | Output shaft bearing snap ring |
| Compatible transfer cases | NP241, NP242, NP247, NP249, NV241, NV241OR |
| Fit | Direct Fit, as described |
| Condition | Factory replacement |
Vehicle fitment
Fit is determined by transfer case model rather than vehicle year, model or trim. Confirm the transfer case before installing the ring.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One output shaft bearing snap ring, part number 5072460AA. Compare the ring and its groove with your installation before starting.
