Overview

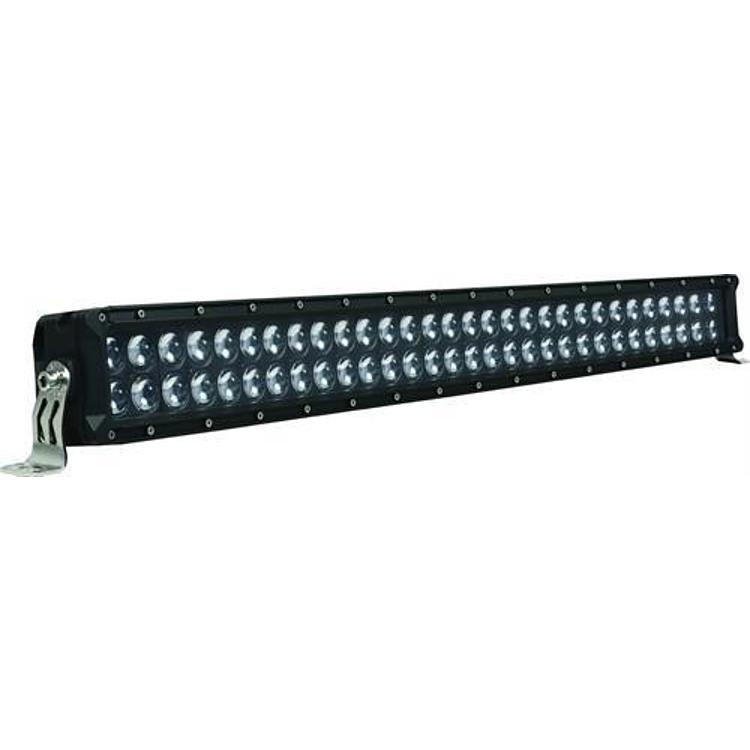

The Hella ValueFit Northern Lights LED light bar, part number 357212231, is a 32 in RGB LED light bar with 60 high intensity white LEDs. It produces 6000K white light with a measured output of 3800 lm and a 90 W rating, housed in a die-cast aluminum body.
Hella lists multivolt power at 10-30V DC and an IP67 rating. The phone app lets you choose any color, set flash patterns or sync the colors to music over Bluetooth on iOS or Android. An on/off timer is also available in the app.
Key features
- 60 high intensity white LEDs
- 32 in length
- Measured output of 3800 lm at 6000K
- 90 W rating
- IP67 rating
- RGB control through a Bluetooth app with music sync and flash patterns
- On/off timer in the app

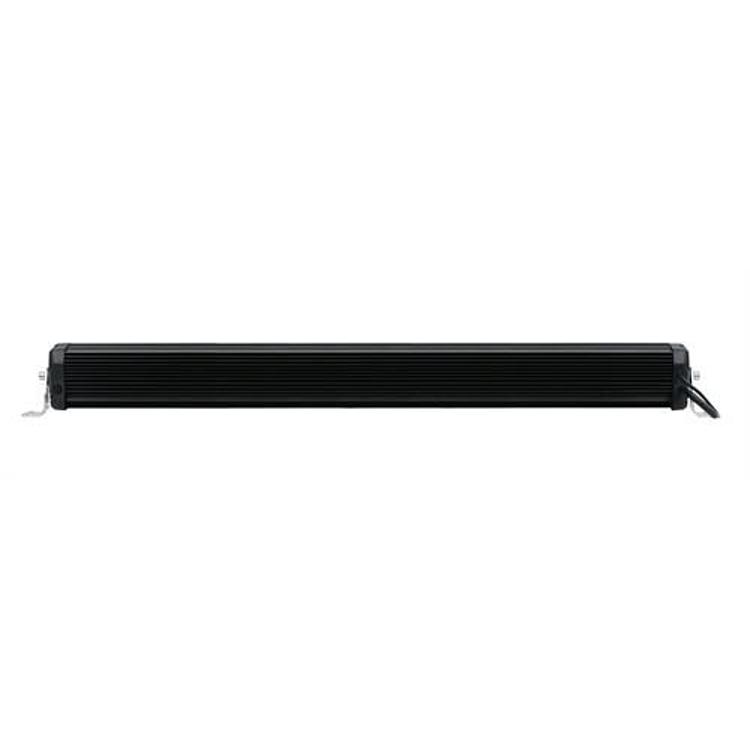

- Die-cast aluminum housing
Heat and long run times
High-output LED bars give off heat through the housing, so airflow around the body matters. Mounting in an open spot helps the bar shed heat, while a sealed or boxed location can trap it. Keep the vents and mounting surfaces clear of dust and debris so the housing can cool between uses.
Power use adds up over a long night on the trail. Plan the switching so the bar runs when needed, and use a relay with a timer or a low-voltage cutoff to protect the battery. Watch for dimming at idle, which can point to a voltage drop in the wiring rather than the bar itself.
- Mount where air can move around the housing
- Keep mounting surfaces free of debris
- Use a timer or voltage cutoff for long runs
- Check wiring for voltage drop if the light dims
Specifications
| Brand | Hella |
|---|---|
| Product line | ValueFit Northern Lights Series |
| Part number | 357212231 |
| UPC | 760687173236 |

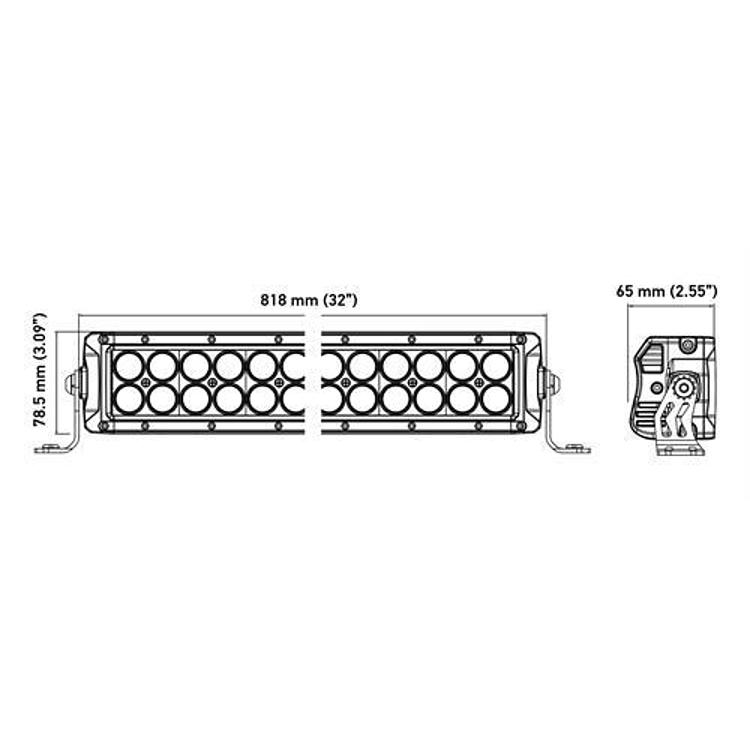

| Length | 32 in |
| LEDs | 60 high intensity white |
| Color temperature | 6000K |
| Measured lumen output | 3800 lm |
| Power | 90 W |
| Voltage | Multivolt 10-30V DC |
| Protection rating | IP67 |
| Housing | Die-cast aluminum |
| Color control | RGB via Bluetooth app |
Vehicle fitment
No vehicle is named for the 357212231 light bar, so it is treated as a general lighting accessory. Its 32 in length calls for a mounting area that suits the bar and the bracket supplied with it.
Measure the mounting space and bracket fit on your vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use the mounting bracket and the instructions supplied. Run power through a fused relay connected to a 10-30V DC source, and keep your phone within Bluetooth range during color setup.
What’s included
One RGB LED light with mounting bracket and mounting instructions.
